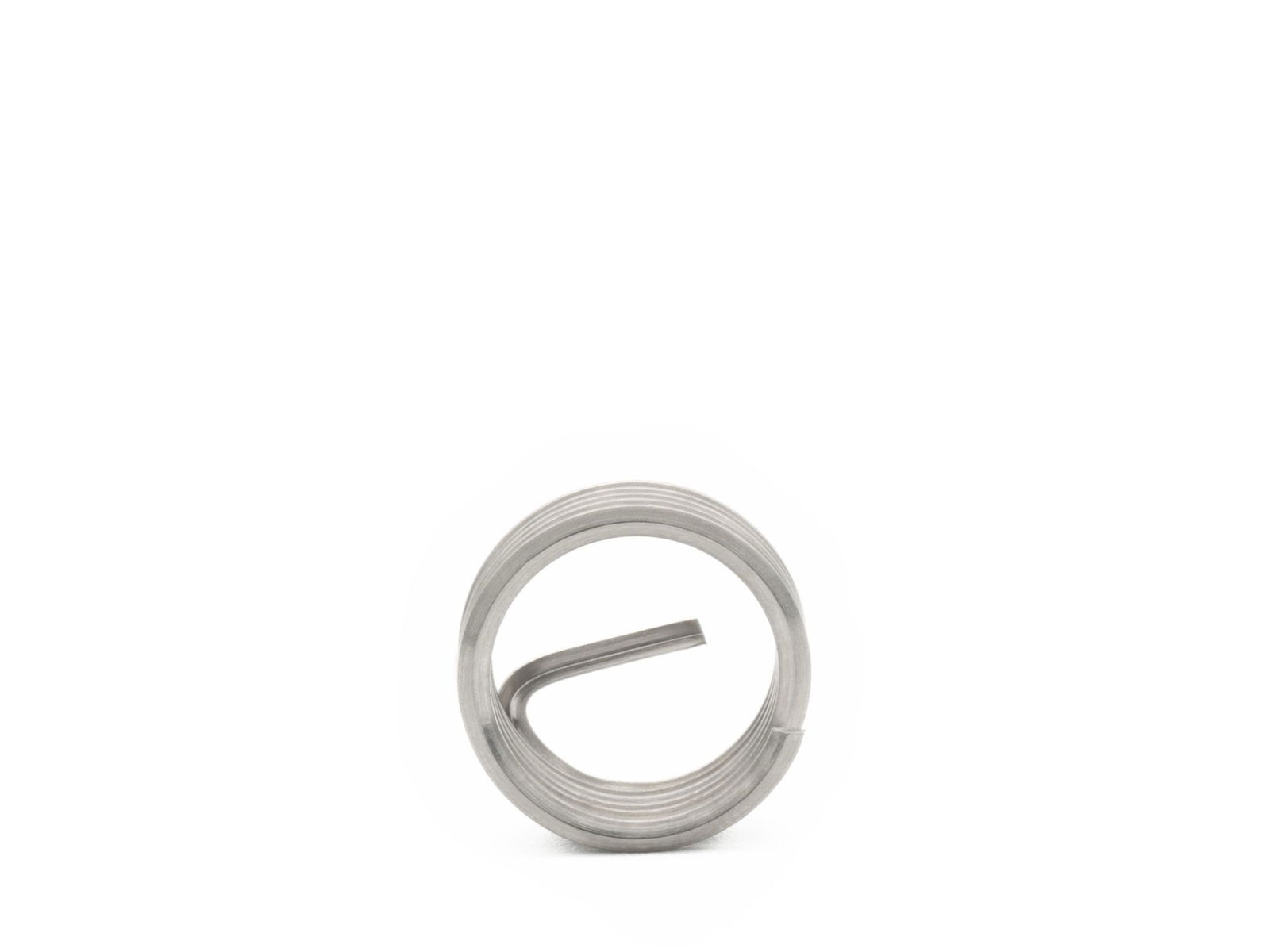

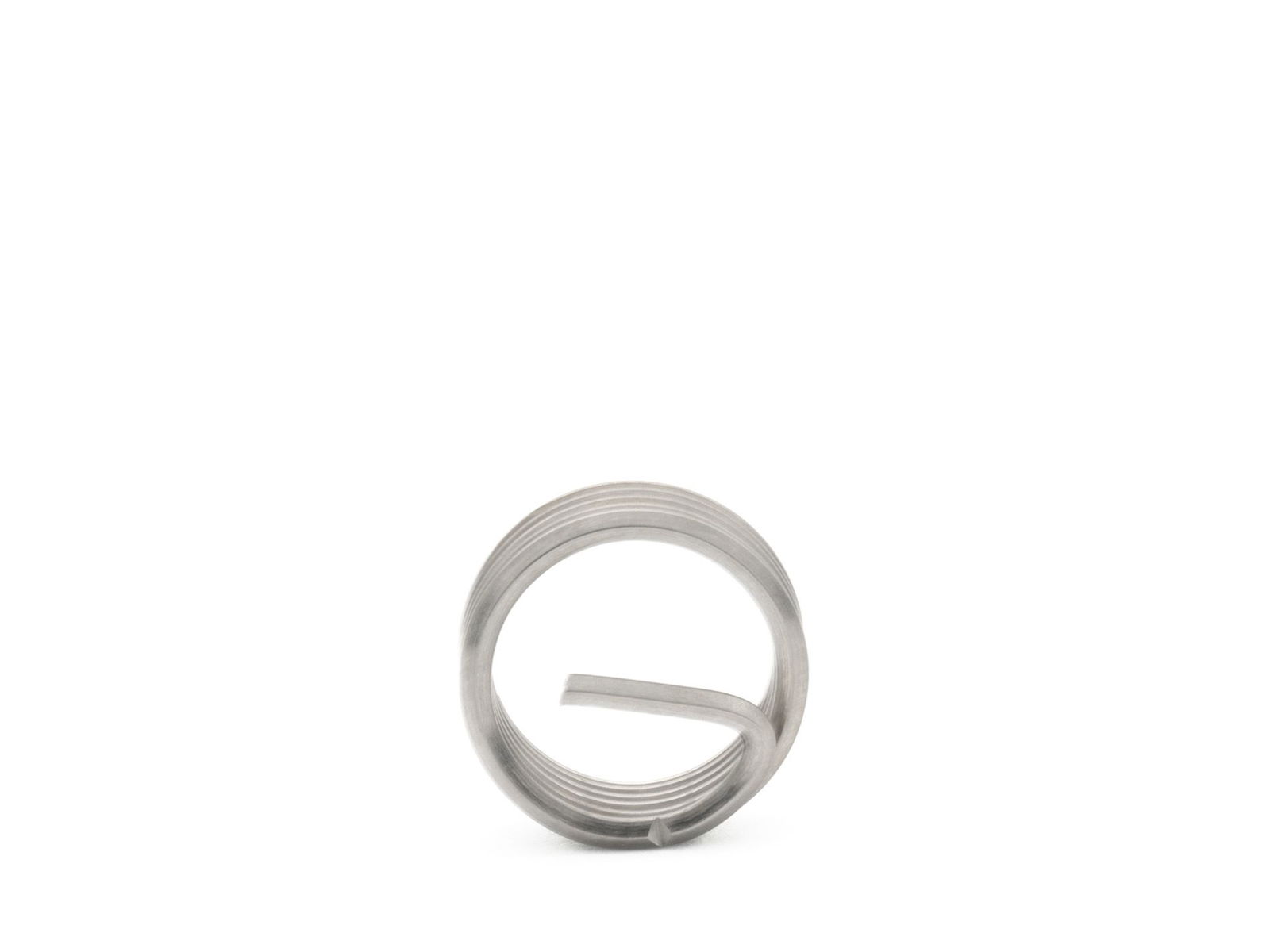

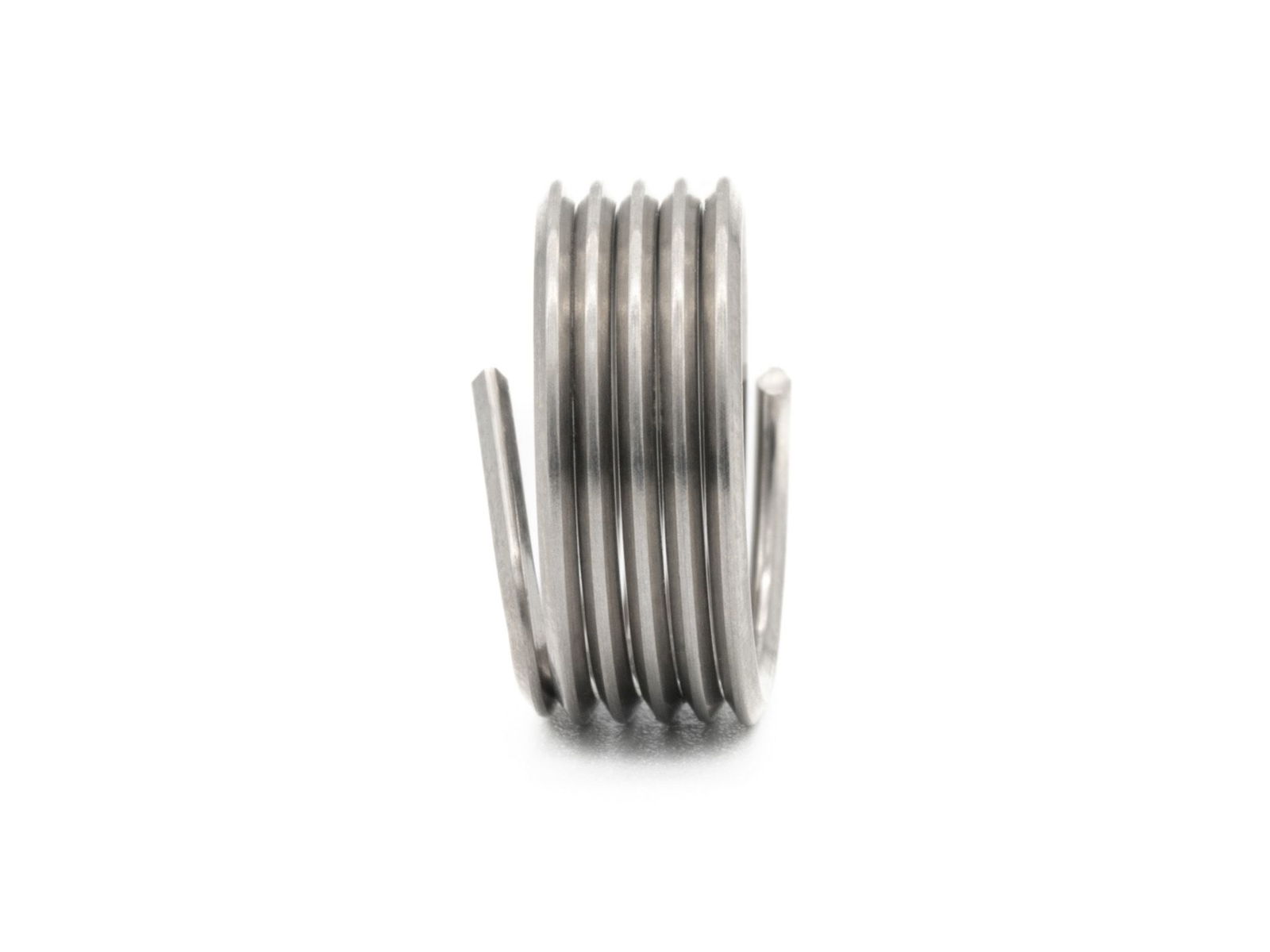

BaerCoil Wire Thread Inserts G (BSP) 7/8 x 14 – 2.0 D (44.45 mm) - free running - 5 pcs.

€34.21

Prices incl. VAT plus shipping costs

Free shipping from €39 (within Germany)

In stock

Order by 11:50 o'clock and we ship the same day.

Express shipping available

Product Quantity: Enter the desired amount or use the buttons to increase or decrease the quantity.
EAN 4058462080616
Item no 1-B8386-2
Product information

BaerCoil Wire Thread Inserts G (BSP) 7/8 x 14 – 2.0 D (44.45 mm) - free running - 5 pcs.


BaerCoil® thread inserts are the best solution for all your repair needs! With them you can create long-lasting and powerful connections. These inserts also ensure that you have no waste and recycle everything. The inserts are precise and wear resistant - your screw will stay firmly in place without the thread insert slipping.

The BaerCoil® thread insert is the perfect solution for damaged threads. STI thread (screw thread insert) is cut and the BaerCoil® insert is screwed in. The thread produced is significantly stronger than the original thread.

BaerCoil® thread inserts ensure optimum power transmission from the bolt to the nut thread, even in lightweight constructions. Today, they are already an important component in aviation and vehicle construction. They save weight and allow the use of smaller and shorter screw connections.

BaerCoil® thread inserts can be shortened, according to the required length, with a side cutter or similar.

Dimensions

Diameter 7/8
Pitch 14
Dimension G (BSP) 7/8 x 14
Length 2,0 D
T (Length when installed) 44,45 mm
Thread length calculation 2.0 D means 2 times the calculation diameter: 2 times 22.225 mm=44.45 mm
The nominal diameter for G (BSP) 7/8 is approx. 30.20 mm, but according to the standard the length is calculated with the diameter of 22.225 mm for calculation purposes

Characteristics

Product group Wire thread inserts
Product type BaerCoil wire thread inserts
Thread standard G (BSP): British Standard Pipe Thread according to DIN ISO 228 - Cylindrical pipe thread
Direction Right
Type free running
Tensile strength at room temperature >1400 N/mm²
Material Stainless Steel V2A (AISI 304, X5CrNi18-10, Material No.: 1.4301)
Temperature resistance 315°C long-term
425°C short-term

Applications

All normal uses for thread repair and thread reinforcement

Technical drawing

Technical drawing BaerCoil thread insert
Diameter 7/8
Length 2,0 D
T (Length when installed) 44,45 mm
F (Min. - Max. outside diameter of thread insert) 1,275 '' - 1,389 ''
P (depth) The thread insert must sit 1/4 - 1/2 turns below the surface
B (thread depth with chamfer) 1,999 ''
D (minimum depth of the core hole, without tip) 2,070 ''
