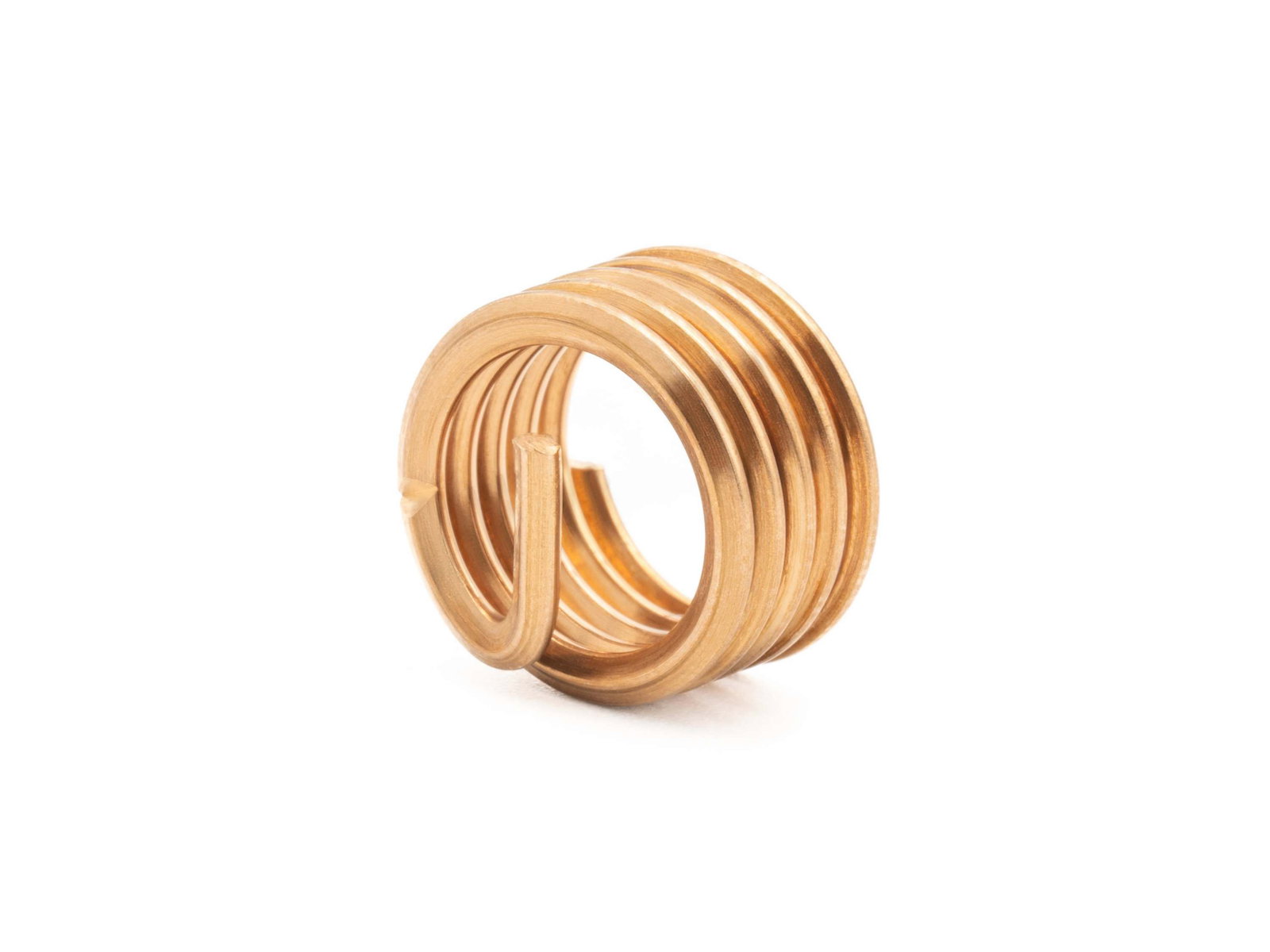

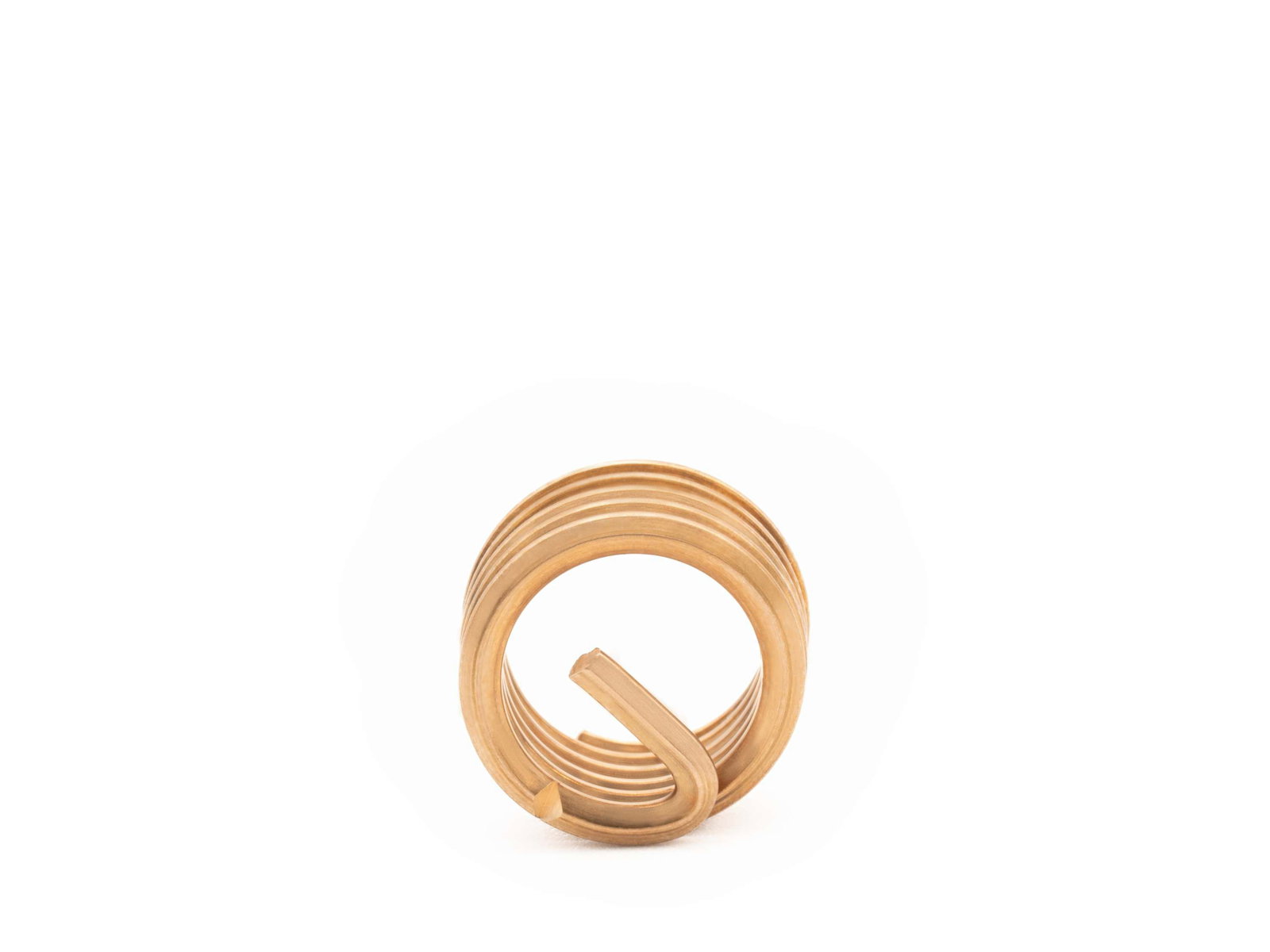

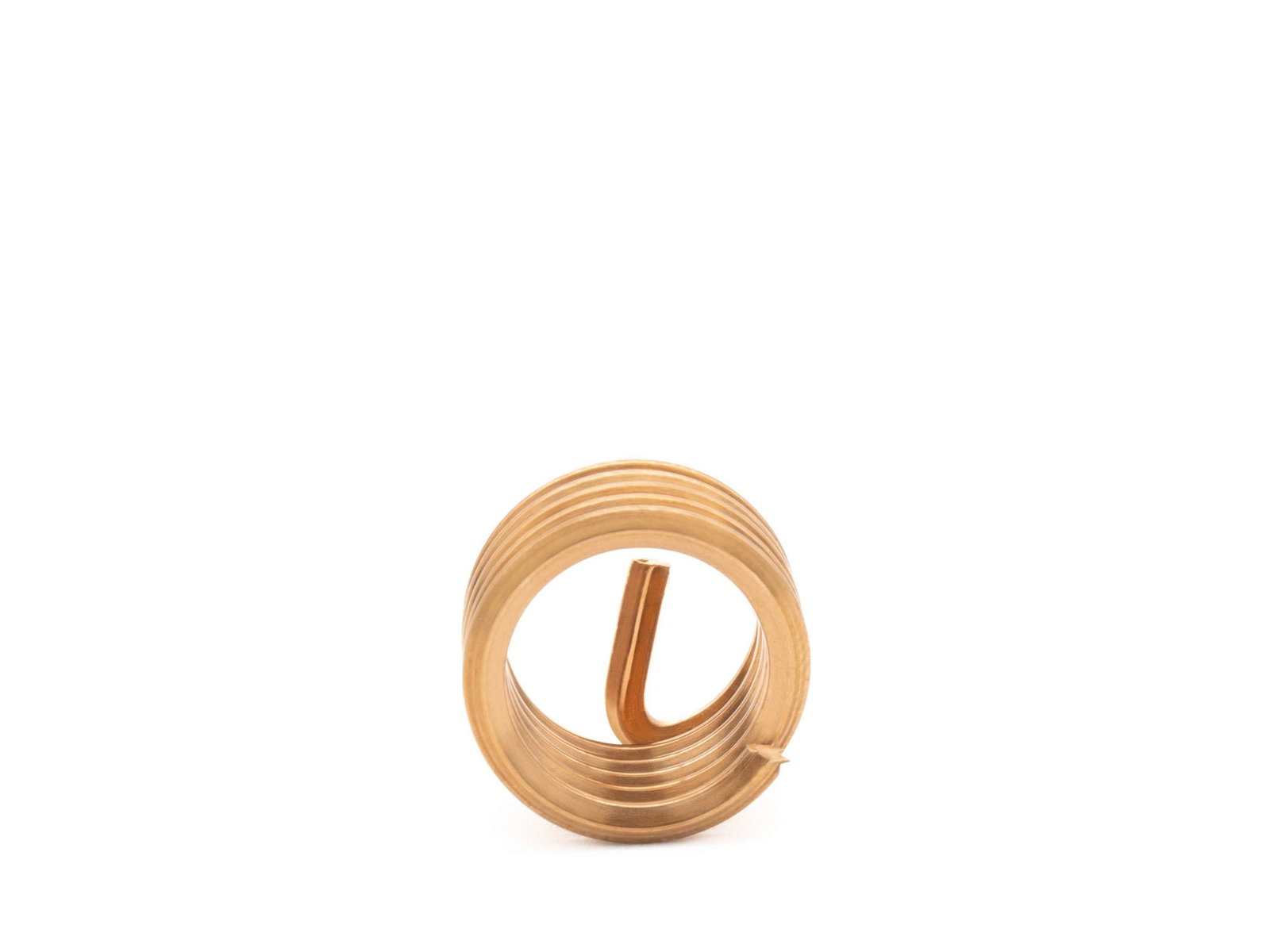

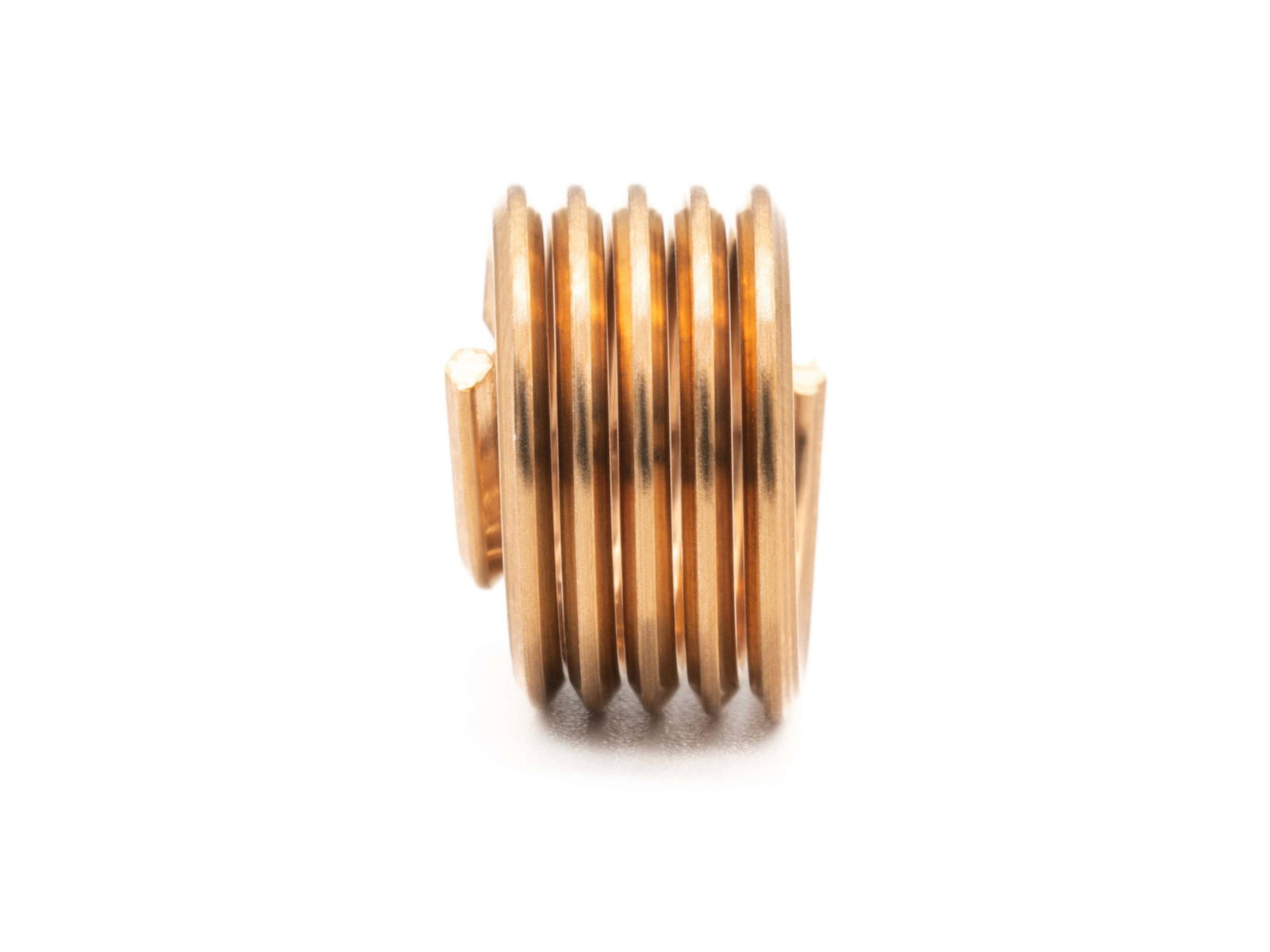

BaerCoil Wire Thread Inserts M 3 x 0.5 - 1.0 D (3 mm) - free running - Bronze - 100 pcs.
BaerCoil Wire Thread Inserts M 3 x 0.5 - 1.0 D (3 mm) - free running - Bronze - 100 pcs.
BaerCoil® thread inserts are the best solution for your thread repair! With them you can create long-lasting and powerful threaded connections. The inserts also ensure that you have no waste and recycle everything. The inserts are precise and wear resistant - your screw will stay firmly in place without the thread insert slipping.
The BaerCoil® thread insert is the perfect solution for damaged threads - with the same nominal diameter! For thread repair with wire thread inserts, the thread is drilled out and a new STI thread (screw thread insert) for the wire- thread insert is cut. This thread is often also called STI thread (STI=Screw Thread Insert).
BaerCoil® thread inserts are sophisticated design elements that ensure optimum power transmission from the bolt to the nut thread. They compensate for pitch and angular errors and thus distribute static and dynamic work loads evenly over all thread turns. This is particularly important in lightweight constructions where the carrier material is to be reduced. BaerCoil® thread inserts make it possible to use smaller and shorter screw connections. They are already an important component in the aerospace and automotive industries.
BaerCoil® thread inserts can be shortened, according to the required length, with a side cutter or similar.
Dimensions
| Diameter |
3 |
|---|---|
| Pitch |
0,5 |
| Dimension |
M 3 x 0,5 |
| Length |
1,0 D |
| T (Length when installed) |
3 mm |
| Thread length calculation |
1.0 D means 1 times the diameter: 1 times 3 mm=3 mm The nominal diameter for M 3 is 3 mm |
Characteristics
| Product group |
Wire thread inserts |
|---|---|
| Product type |
BaerCoil wire thread inserts |
| Thread standard |
M: Metric ISO standard thread according to DIN 13 |
| Tolerance |
ISO2/6H |
| Direction |
Right |
| Type |
free running |
| Tensile strength at room temperature |
> 900 N/mm² |
| Material |
from Bronze (CuSn6, CW452K, material no.: 2.1020) |
| Temperature resistance |
250°C long-term 300°C short-term |
Applications
- Applications in seawater
- Best electrical conductivity
Attributes
- Movement thread
- Cr-Ni screws
- Cu workpieces
- Non-magnetic
Technical drawing
| Diameter |
3 |
|---|---|
| Length |
1,0 D |
| T (Length when installed) |
3 mm |
| F (Min. - Max. outside diameter of thread insert) |
3,60 mm - 4,35 mm |
| P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
| B (thread depth with chamfer) |
4,75 mm |
| D (minimum depth of the core hole, without tip) |
5,25 mm |
