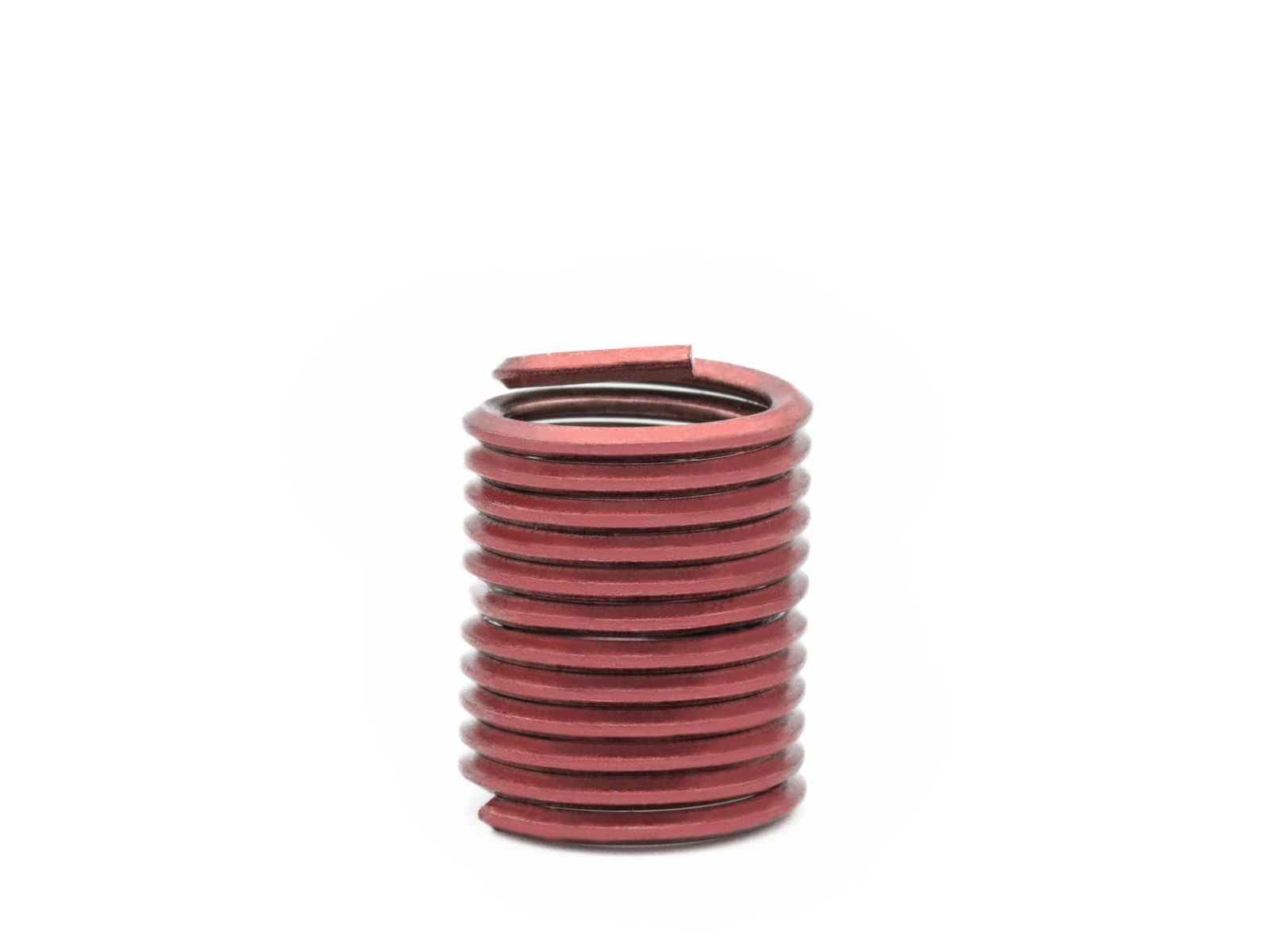

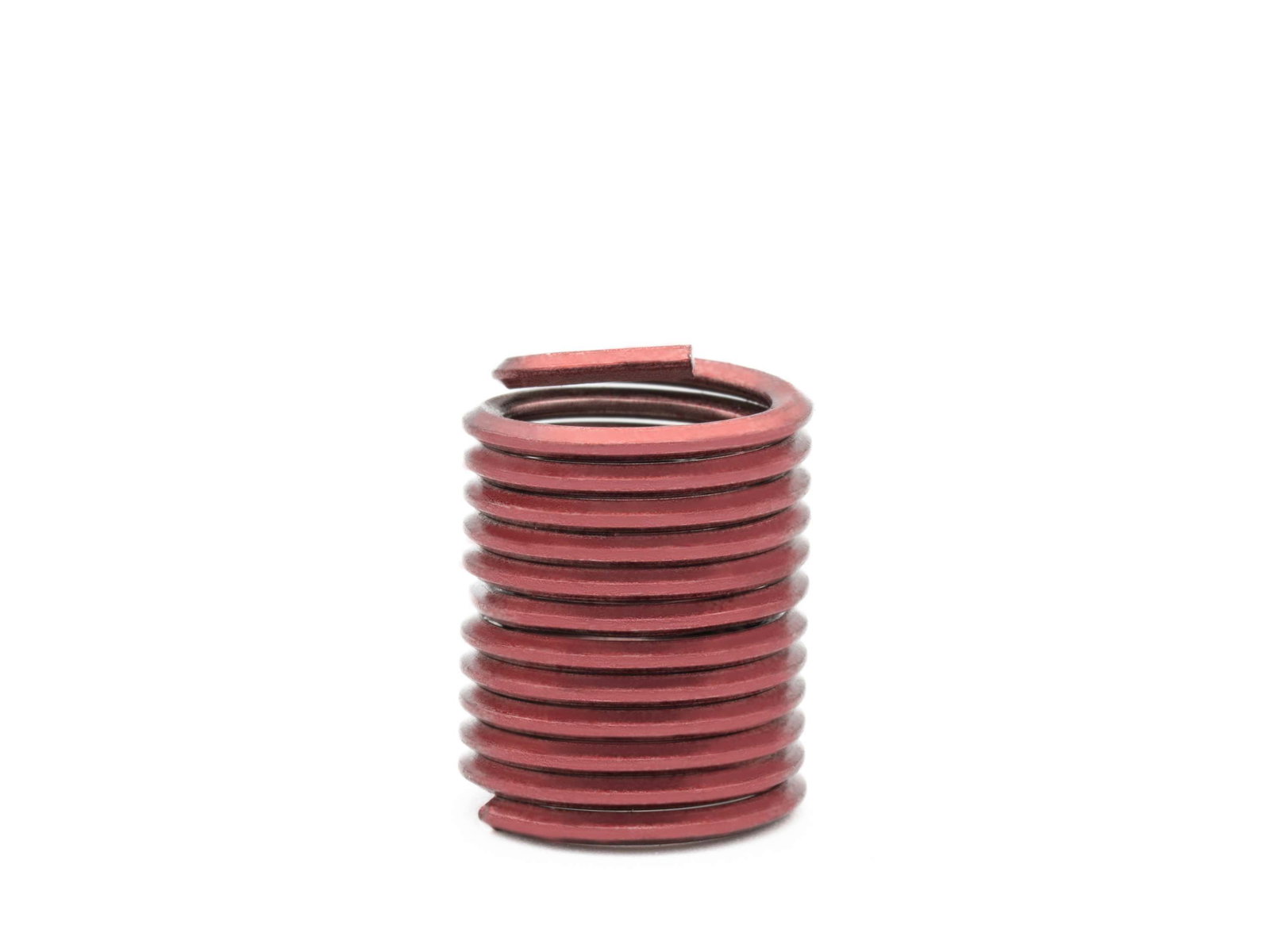

BaerCoil Wire Thread Inserts M 6 x 1.0 - 2.0 D (12 mm) - screw grip (screw locking) - 100 pcs.
€37.22*
Prices incl. VAT plus shipping costs
In stock
Express shipping is also possible for this product
BaerCoil Wire Thread Inserts M 6 x 1.0 - 2.0 D (12 mm) - screw grip (screw locking) - 100 pcs.
BaerCoil® wire thread inserts are the perfect solution for a long-lasting, powerful thread connection and scrap recovery. They also create load-bearing connections in materials with low shear strength and are precise and wear-resistant. wire thread inserts are often used in automotive, electrical engineering, medical technology, lightweight construction and aerospace.
BaerCoil® thread inserts are the perfect solution for damaged threads. They are drilled out and a new STI thread (screw thread insert) is cut for the wire thread insert. This thread is often also called STI thread (STI=Screw Thread Insert). Then the BaerCoil® thread insert is screwed into the old thread and thus the workpieces are screwed on again. With BaerCoil® thread inserts, the thread produced is significantly more stable than the original thread.
BaerCoil® thread inserts are indispensable for optimum force transmission in lightweight constructions. They ensure that both static and dynamic work loads are distributed in a balanced manner to the individual thread turns. Also, the flexibility of the thread inserts compensates for any pitch and angle errors. BaerCoil® thread inserts not only save time and money, but are also much lighter and more compact than conventional screw connections.
BaerCoil® screw-locking thread inserts | type "screw grip " - All advantages at a glance
With the self-clamping "screw grip" threaded inserts, your construction remains stable - regardless of shocks, constant vibrations or movements. The screw-locking BaerCoil® thread inserts complement the properties of the "free running" connection and have a clamping effect on the flanks of the screwed-in screw due to their polygonally shaped windings. Please use only screws of a higher strength class for this purpose, as an elastically resilient frictional connection is created. The clamping torques are comparable with the specifications in DIN 267 Part 15 and ISO 2320. Please note that special insertion tools with reduced diameters are required for screw grip inserts.
BaerCoil® thread inserts can be shortened if necessary, according to the required length, with a side cutter or similar. It should be noted that the thread inserts with screw locking have a polygonal winding approximately in the middle of the insert. This must not be removed when shortening in order to maintain the screw locking effect.
Dimensions
Diameter |
6 |
---|---|
Pitch |
1,0 |
Dimension |
M 6 x 1,0 |
Length |
2,0 D |
T (Length when installed) |
12 mm |
Thread length calculation |
2.0 D means 2 times the diameter: 2 times 6 mm=12 mm The nominal diameter for M 6 is 6 mm |
Characteristics
Product group |
Wire thread inserts |
---|---|
Product type |
BaerCoil wire thread inserts |
Thread standard |
M: Metric ISO standard thread according to DIN 13 |
Tolerance |
ISO2/6H |
Direction |
Right |
Type |
screw grip (screw locking) |
Tensile strength at room temperature |
>1400 N/mm² |
Material |
Stainless Steel V2A (AISI 304, X5CrNi18-10, Material No.: 1.4301) |
Temperature resistance |
315°C long-term 425°C short-term |
Applications
All normal uses for thread repair and thread reinforcement
Technical drawing
Diameter |
6 |
---|---|
Length |
2,0 D |
T (Length when installed) |
12 mm |
F (Min. - Max. outside diameter of thread insert) |
7,17 mm - 7,95 mm |
P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
B (thread depth with chamfer) |
15,50 mm |
D (minimum depth of the core hole, without tip) |
16,50 mm |
