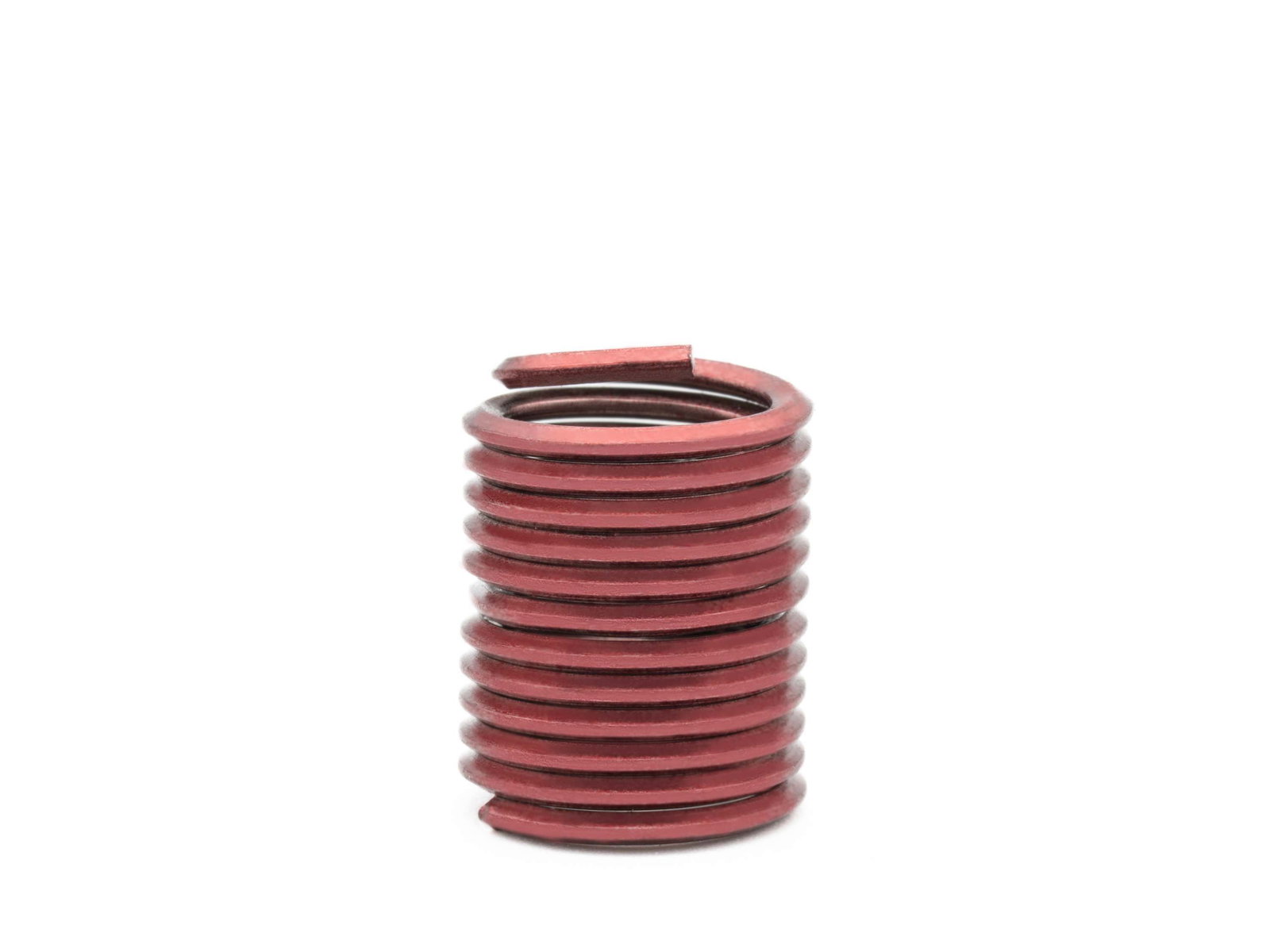

BaerCoil Wire Thread Inserts M 7 x 1.0 - 2.0 D (14 mm) - screw grip (screw locking) - 100 pcs.
BaerCoil Wire Thread Inserts M 7 x 1.0 - 2.0 D (14 mm) - screw grip (screw locking) - 100 pcs.
BaerCoil® wire thread inserts provide a long-lasting, powerful connection and scrap recovery in the thread repair. They also create load-bearing connections in materials with low shear strength. Precise and wear-resistant, the inserts hold your screw firmly in place without deforming the thread insert. Ideal for repairing damaged or worn threads. wire thread inserts are often used in areas such as automotive, electrical engineering, medical technology or lightweight construction as well as in aerospace.
The BaerCoil® thread insert is the perfect solution for damaged threads - with the same nominal diameter! For thread repair with wire thread inserts, the thread is drilled out and a new STI thread (screw thread insert) for the wire thread insert is cut. This thread is often also called STI thread (STI=Screw Thread Insert).
BaerCoil® thread inserts ensure optimum power transmission from the bolt to the nut thread - even in lightweight constructions. Due to their flexibility, they can compensate for pitch and angle errors and thus guarantee optimum power transmission. BaerCoil® thread inserts are already important components in the aerospace and automotive industries and help to reduce carrier material and use smaller, shorter bolted joints.
BaerCoil® screw-locking thread inserts | Type "screw grip " - All advantages at a glance
With the self-clamping "screw grip" thread inserts, your construction remains stable - no matter whether it is exposed to shocks, constant vibrations or movements. The screw-locking BaerCoil® thread inserts complement the properties of the "free running" connection and have a clamping effect on the flanks of the screwed-in screw due to their polygonally shaped windings. Please use only screws of a higher strength class for this purpose, as an elastically resilient frictional connection is created. The clamping torques are comparable with the specifications in DIN 267 Part 15 and ISO 2320. Please note that special insertion tools with reduced diameters are required for screw grip inserts.
BaerCoil® thread inserts can be shortened if necessary, according to the required length, with a side cutter or similar. It should be noted that the thread inserts with screw locking have a polygonal winding approximately in the middle of the insert. This must not be removed when shortening in order to maintain the screw locking effect.
Dimensions
| Diameter |
7 |
|---|---|
| Pitch |
1,0 |
| Dimension |
M 7 x 1,0 |
| Length |
2,0 D |
| T (Length when installed) |
14 mm |
| Thread length calculation |
2.0 D means 2 times the diameter: 2 times 7 mm=14 mm The nominal diameter for M 7 is 7 mm |
Characteristics
| Product group |
Wire thread inserts |
|---|---|
| Product type |
BaerCoil wire thread inserts |
| Thread standard |
M: Metric ISO standard thread according to DIN 13 |
| Tolerance |
ISO2/6H |
| Direction |
Right |
| Type |
screw grip (screw locking) |
| Tensile strength at room temperature |
>1400 N/mm² |
| Material |
Stainless Steel V2A (AISI 304, X5CrNi18-10, Material No.: 1.4301) |
| Temperature resistance |
315°C long-term 425°C short-term |
Applications
All normal uses for thread repair and thread reinforcement
Technical drawing
| Diameter |
7 |
|---|---|
| Length |
2,0 D |
| T (Length when installed) |
14 mm |
| F (Min. - Max. outside diameter of thread insert) |
8,17 mm - 9,20 mm |
| P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
| B (thread depth with chamfer) |
17,50 mm |
| D (minimum depth of the core hole, without tip) |
18,50 mm |
