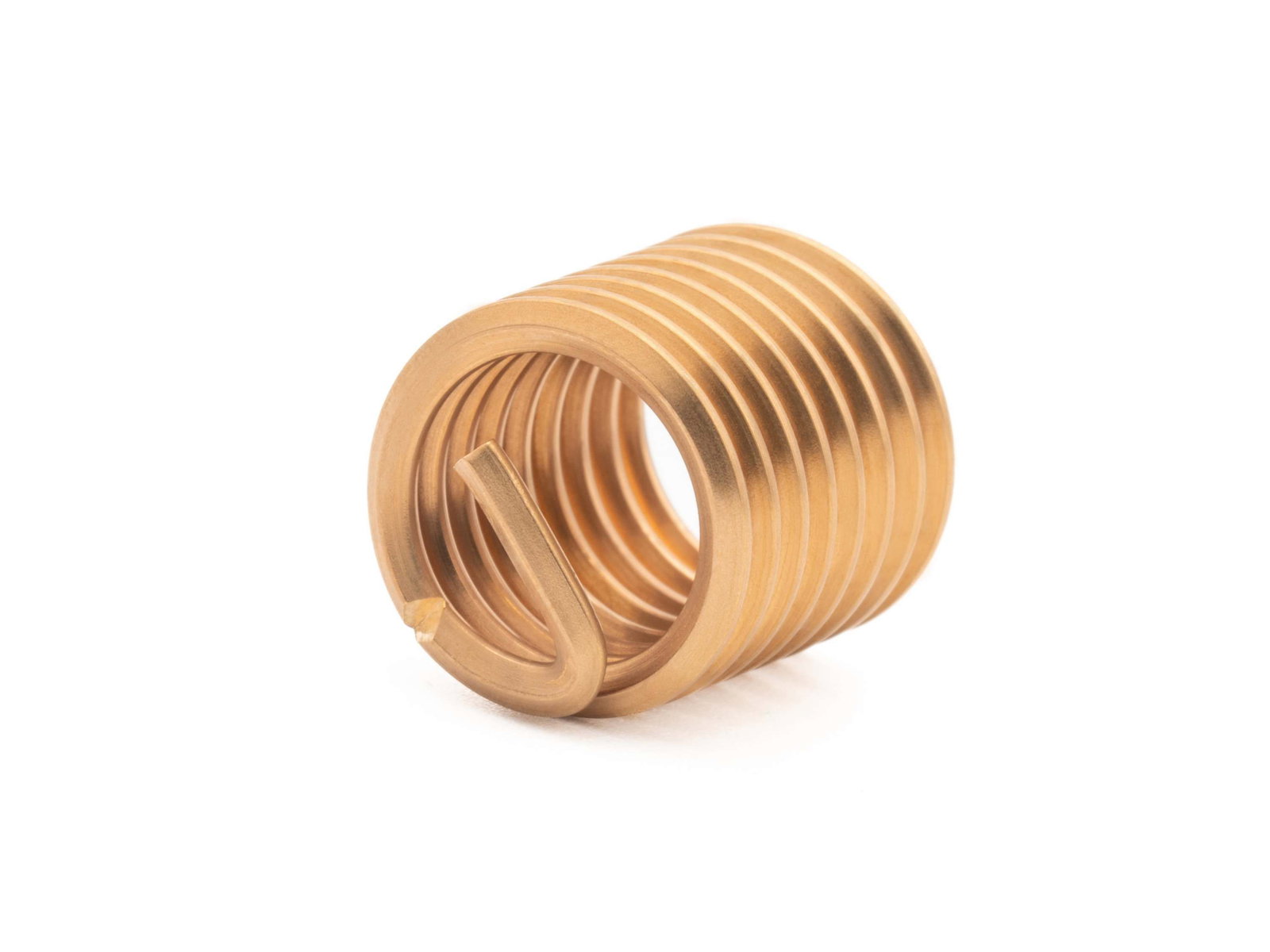

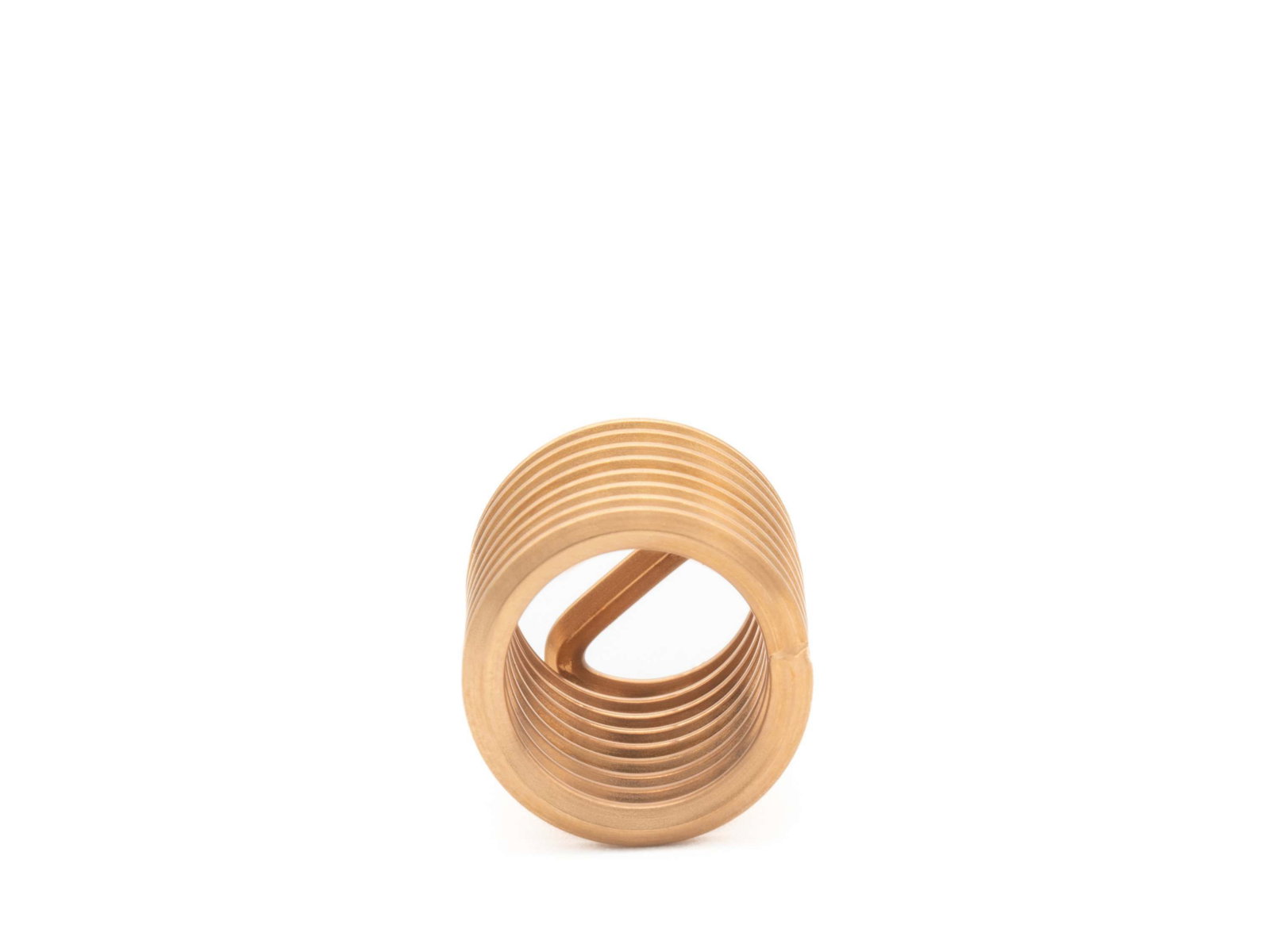

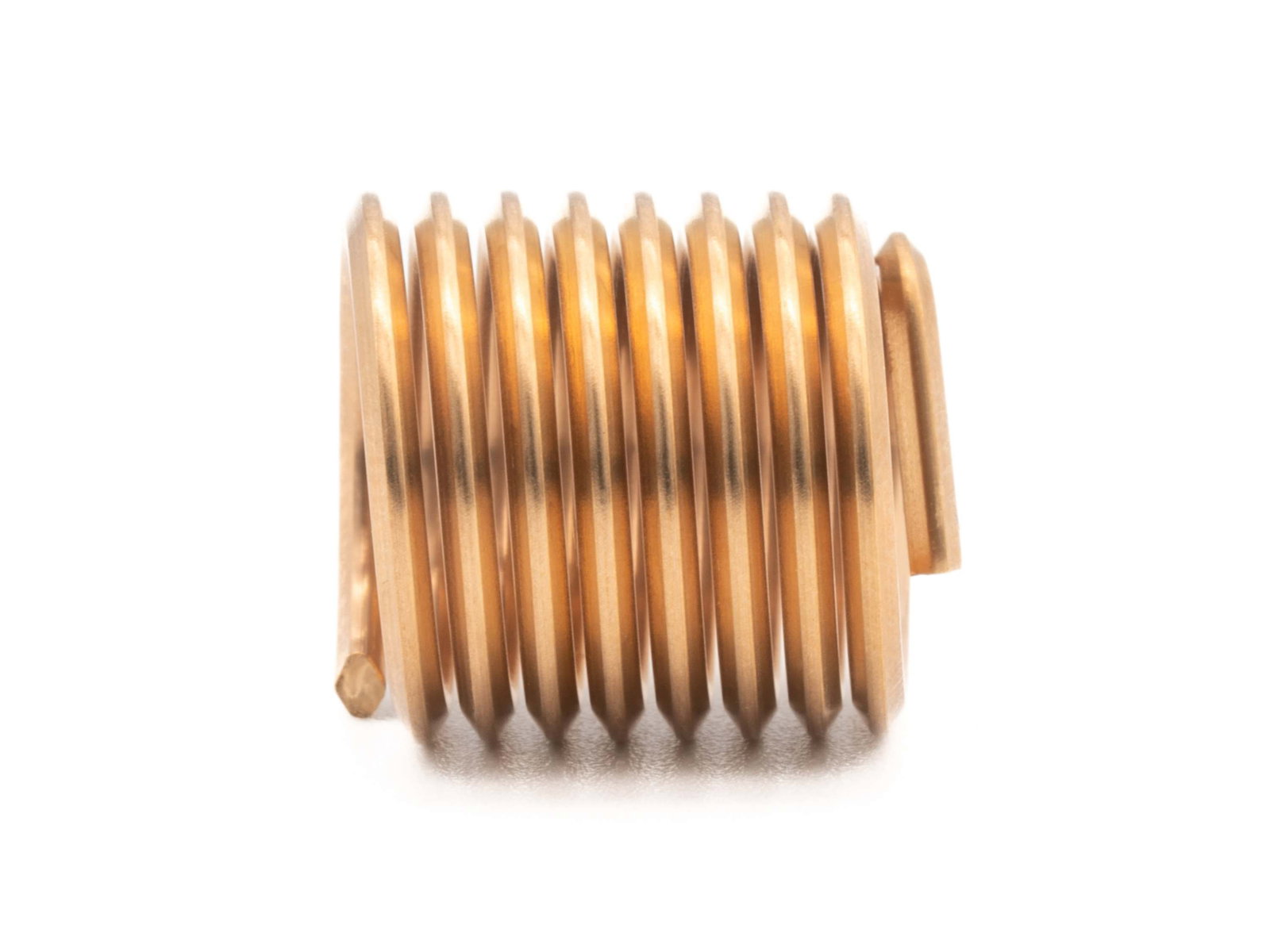

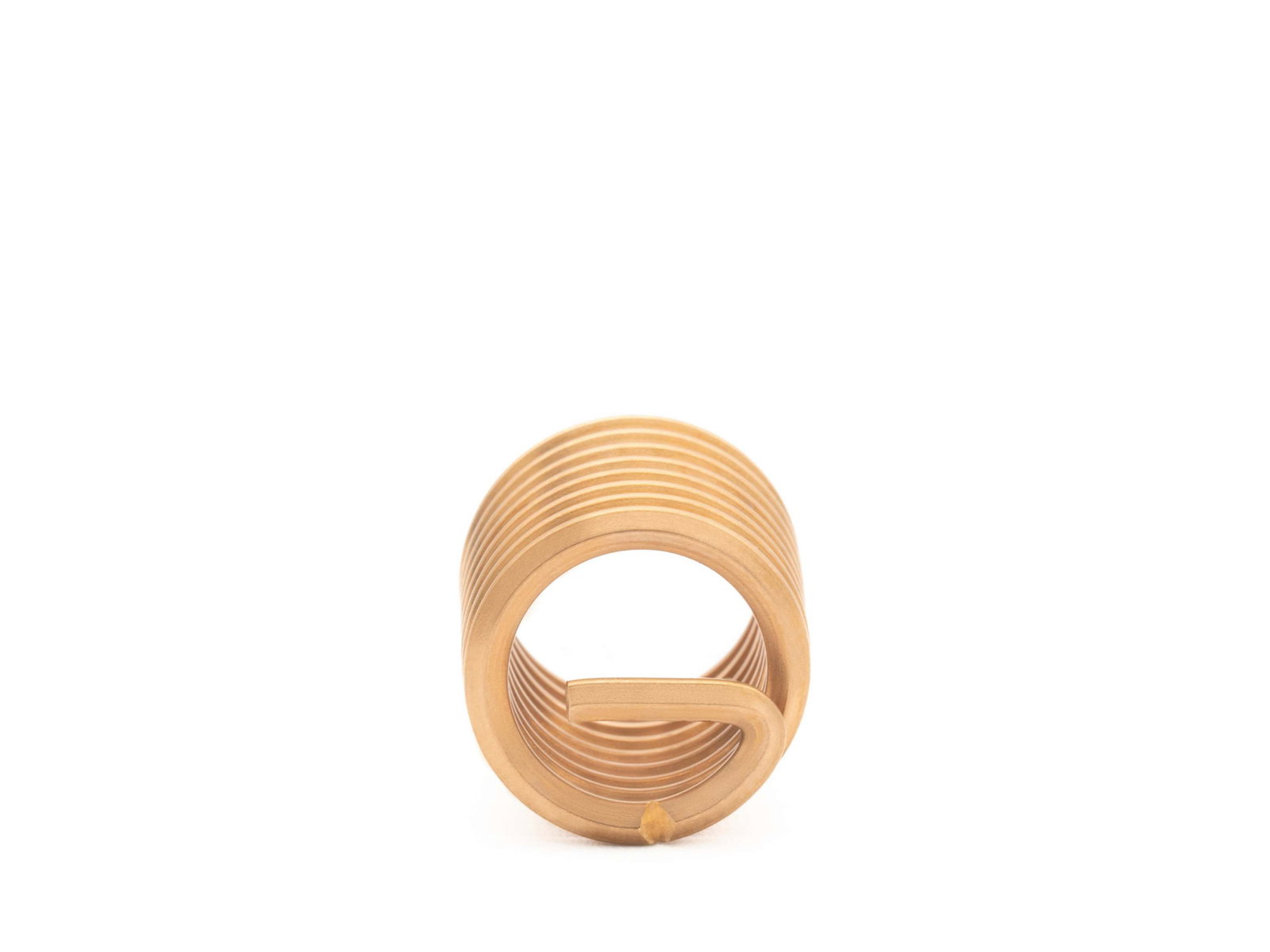

BaerCoil Wire Thread Inserts M 8 x 1.25 - 1.5 D (12 mm) - free running - Bronze - 100 pcs.
In stock
Express shipping available
BaerCoil Wire Thread Inserts M 8 x 1.25 - 1.5 D (12 mm) - free running - Bronze - 100 pcs.
BaerCoil® thread inserts are the perfect solution for your thread repair needs! These inserts provide a long lasting and powerful thread connection and scrap recovery.
The BaerCoil® thread insert is the perfect solution for damaged threads while maintaining nominal diameter. With BaerCoil® thread inserts, the thread produced is significantly stronger than the original thread.
BaerCoil® thread inserts are indispensable for optimal power transmission in lightweight constructions. They ensure that both static and dynamic work loads are distributed in a balanced manner to the individual thread turns. Also, the flexibility of the thread inserts compensates for any pitch and angle errors. BaerCoil® thread inserts not only save time and money, but are also much lighter and more compact than conventional screw connections.
BaerCoil® thread inserts can be shortened, according to the required length, with a side cutter or similar.
Dimensions
| Diameter |
8 |
|---|---|
| Pitch |
1,25 |
| Dimension |
M 8 x 1,25 |
| Length |
1,5 D |
| T (Length when installed) |
12 mm |
| Thread length calculation |
1.5 D means 1.5 times the diameter: 1.5 times 8 mm=12 mm The nominal diameter for M 8 is 8 mm |
Characteristics
| Product group |
Wire thread inserts |
|---|---|
| Product type |
BaerCoil wire thread inserts |
| Thread standard |
M: Metric ISO standard thread according to DIN 13 |
| Tolerance |
ISO2/6H |
| Direction |
Right |
| Type |
free running |
| Tensile strength at room temperature |
> 900 N/mm² |
| Material |
from Bronze (CuSn6, CW452K, material no.: 2.1020) |
| Temperature resistance |
250°C long-term 300°C short-term |
Applications
- Applications in seawater
- Best electrical conductivity
Attributes
- Movement thread
- Cr-Ni screws
- Cu workpieces
- Non-magnetic
Technical drawing
| Diameter |
8 |
|---|---|
| Length |
1,5 D |
| T (Length when installed) |
12 mm |
| F (Min. - Max. outside diameter of thread insert) |
9,45 mm - 10,35 mm |
| P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
| B (thread depth with chamfer) |
16,38 mm |
| D (minimum depth of the core hole, without tip) |
17,63 mm |
