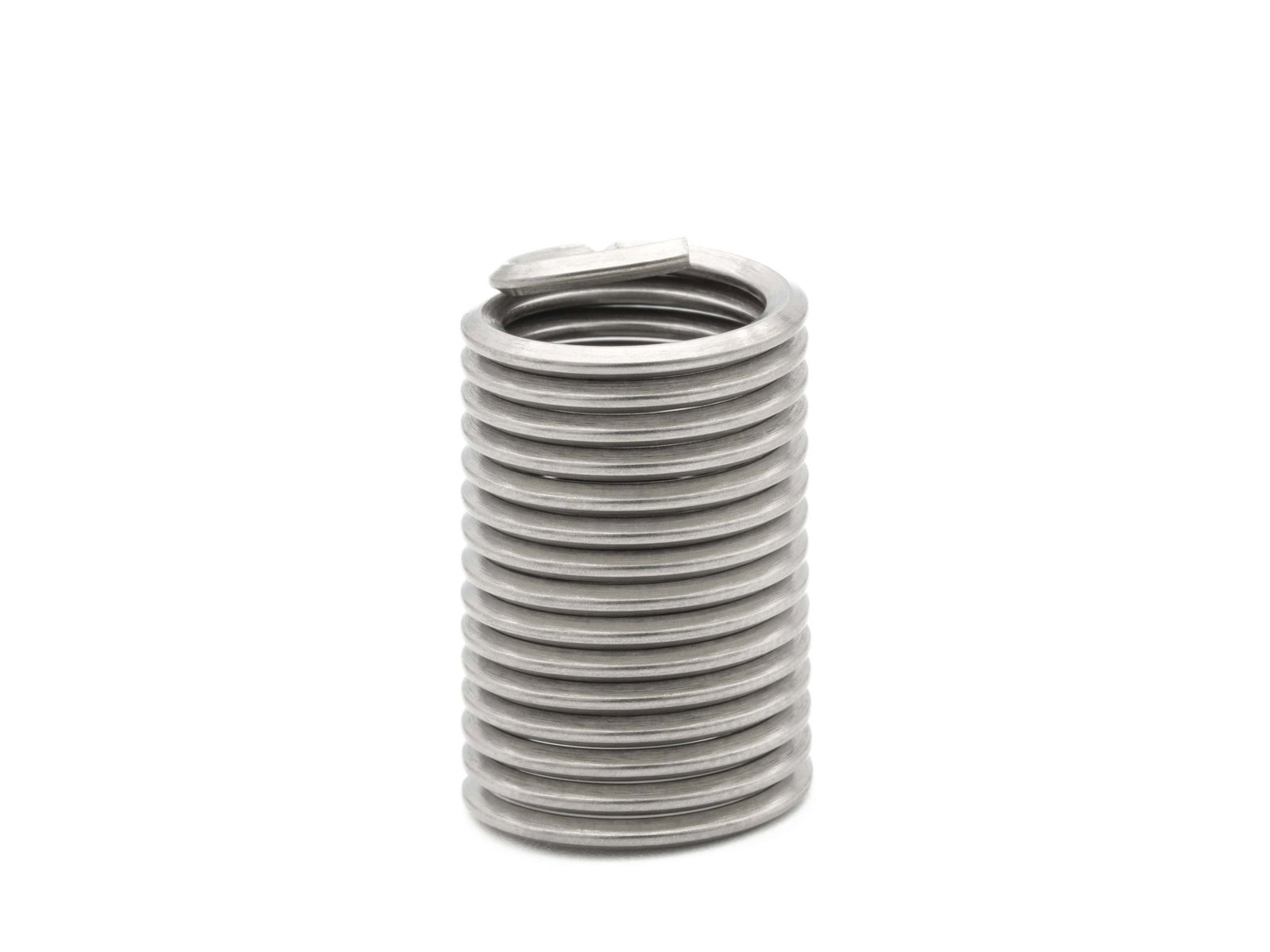

BaerCoil Wire Thread Inserts UNC 1“ x 8 - 2.5 D (63.5 mm) - free running - 10 pcs.
BaerCoil Wire Thread Inserts UNC 1“ x 8 - 2.5 D (63.5 mm) - free running - 10 pcs.
BaerCoil® wire thread inserts provide a long-lasting, powerful connection and scrap recovery in the thread repair. They also create load-bearing connections in materials with low shear strength. Precise and wear-resistant, the inserts hold your screw firmly in place without deforming the thread insert. Ideal for repairing damaged or worn threads. wire thread inserts are often used in areas such as automotive, electrical engineering, medical technology or lightweight construction as well as in aerospace.
The BaerCoil® thread insert is the perfect solution for damaged threads and that with the same nominal diameter. With BaerCoil® thread inserts, the thread produced is significantly more stable than the original thread.
BaerCoil® thread inserts are an indispensable component in aviation and vehicle construction. They ensure that both static and dynamic work loads are distributed in a balanced manner over the individual thread turns. Also, the flexibility of the thread inserts compensates for any pitch and angular errors, so that optimum power transmission from the bolt to the nut thread is achieved. Especially in lightweight constructions, BaerCoil® thread inserts help to reduce the carrier material and to use smaller or shorter screw connections. Thanks to their versatility and reliability, BaerCoil® thread inserts are now an indispensable component in many industries.
BaerCoil thread inserts can be shortened to the required length with a side cutter or similar.
Dimensions
Diameter |
1" |
---|---|
Pitch |
8 |
Dimension |
UNC 1" x 8 |
Length |
2,5 D |
T (Length when installed) |
63,5 mm |
Thread length calculation |
2.5 D means 2.5 times the diameter: 2.5 times 25.4 mm=63.5 mm The nominal diameter at UNC 1" is approx. 25.4 mm |
Characteristics
Product group |
Wire thread inserts |
---|---|
Product type |
BaerCoil wire thread inserts |
Thread standard |
UNC: American Unified National Coarse thread according to ANSI B1.1 |
Direction |
Right |
Type |
free running |
Tensile strength at room temperature |
>1400 N/mm² |
Material |
Stainless Steel V2A (AISI 304, X5CrNi18-10, Material No.: 1.4301) |
Temperature resistance |
315°C long-term 425°C short-term |
Applications
All normal uses for thread repair and thread reinforcement
Technical drawing
Diameter |
1" |
---|---|
Length |
2,5 D |
T (Length when installed) |
63,5 mm |
F (Min. - Max. outside diameter of thread insert) |
1,143 '' - 1,196 '' |
P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
B (thread depth with chamfer) |
2,937 '' |
D (minimum depth of the core hole, without tip) |
3,062 '' |
