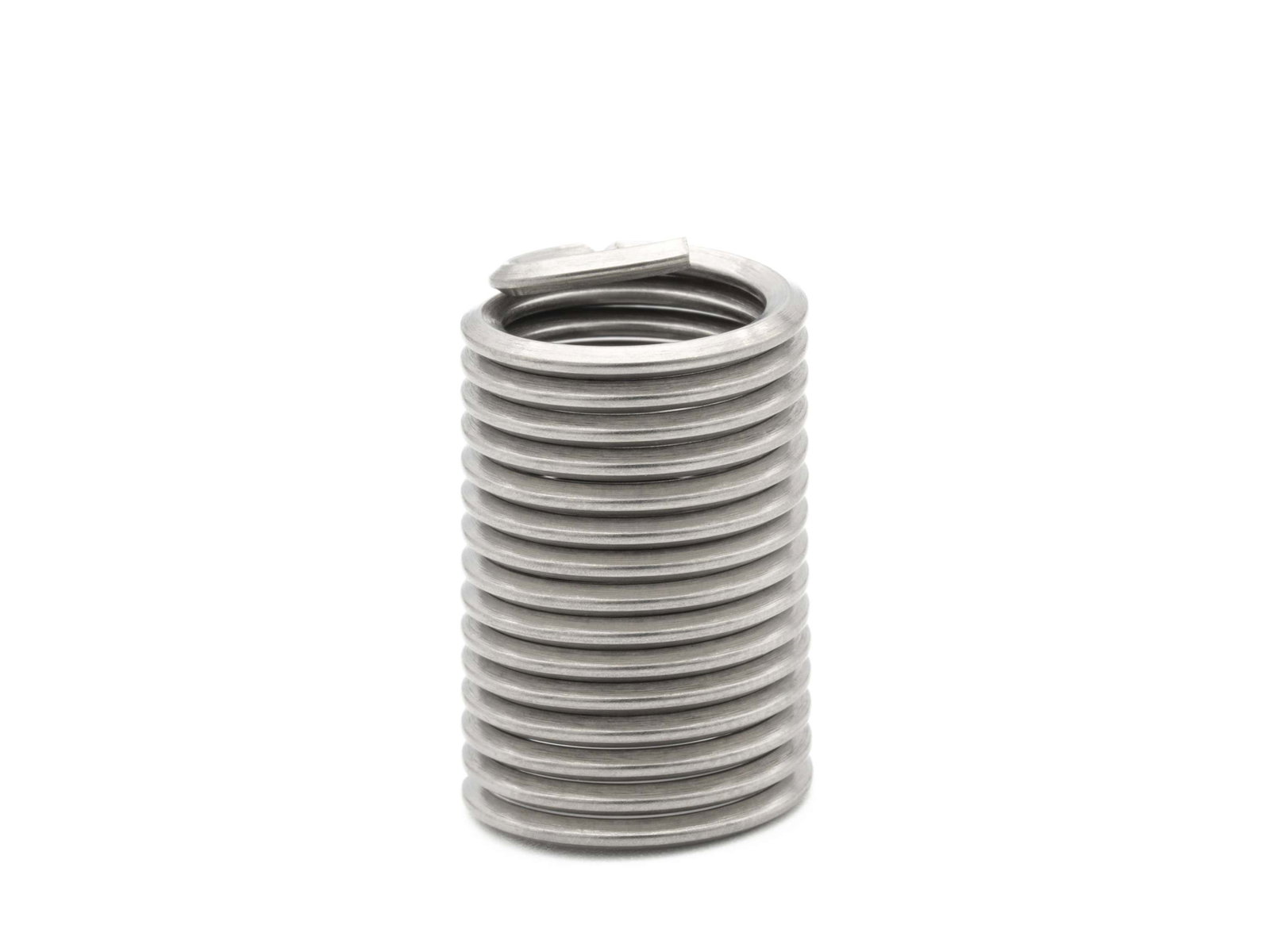

BaerCoil Wire Thread Inserts UNC No. 2 x 56 - 2.5 D (5.46 mm) - free running - 10 pcs.
BaerCoil Wire Thread Inserts UNC No. 2 x 56 - 2.5 D (5.46 mm) - free running - 10 pcs.
BaerCoil® wire thread inserts provide a durable and powerful threaded connection in the thread repair. The inserts also create load-bearing connections in materials with low shear strength and are precise and wear-resistant. wire thread inserts are frequently used in automotive, electrical engineering, medical technology, lightweight construction and aerospace. BaerCoil® wire thread inserts are the perfect solution for a long-lasting, powerful threaded connection and scrap recovery. They also create load-bearing connections in materials with low shear strength and are precise and wear-resistant. wire thread inserts are frequently used in automotive, electrical engineering, medical technology, lightweight constructions as well as in aerospace.
The BaerCoil® thread insert is the perfect solution for damaged threads. STI thread (screw thread insert) is cut and the BaerCoil® insert is screwed in. The thread produced is significantly stronger than the original thread.
BaerCoil® thread inserts ensure optimum power transmission from the bolt to the nut thread - even in lightweight constructions. Due to their flexibility, they can compensate for pitch and angle errors and thus guarantee optimum force transmission. BaerCoil® thread inserts are already important components in the aerospace and automotive industries and help to reduce carrier material and use smaller, shorter bolted joints.
BaerCoil® thread inserts can be shortened, according to the required length, with a side cutter or similar.
Dimensions
| Diameter |
No. 2 |
|---|---|
| Pitch |
56 |
| Dimension |
UNC No. 2 x 56 |
| Length |
2,5 D |
| T (Length when installed) |
5,46 mm |
| Thread length calculation |
2.5 D means 2.5 times the diameter: 2.5 times 2.18 mm=5.46 mm The nominal diameter at UNC No. 2 is approx. 2.18 mm |
Characteristics
| Product group |
Wire thread inserts |
|---|---|
| Product type |
BaerCoil wire thread inserts |
| Thread standard |
UNC: American Unified National Coarse thread according to ANSI B1.1 |
| Direction |
Right |
| Type |
free running |
| Tensile strength at room temperature |
>1400 N/mm² |
| Material |
Stainless Steel V2A (AISI 304, X5CrNi18-10, Material No.: 1.4301) |
| Temperature resistance |
315°C long-term 425°C short-term |
Applications
All normal uses for thread repair and thread reinforcement
Technical drawing
| Diameter |
No. 2 |
|---|---|
| Length |
2,5 D |
| T (Length when installed) |
5,46 mm |
| F (Min. - Max. outside diameter of thread insert) |
0,107 '' - 0,119 '' |
| P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
| B (thread depth with chamfer) |
0,277 '' |
| D (minimum depth of the core hole, without tip) |
0,295 '' |
