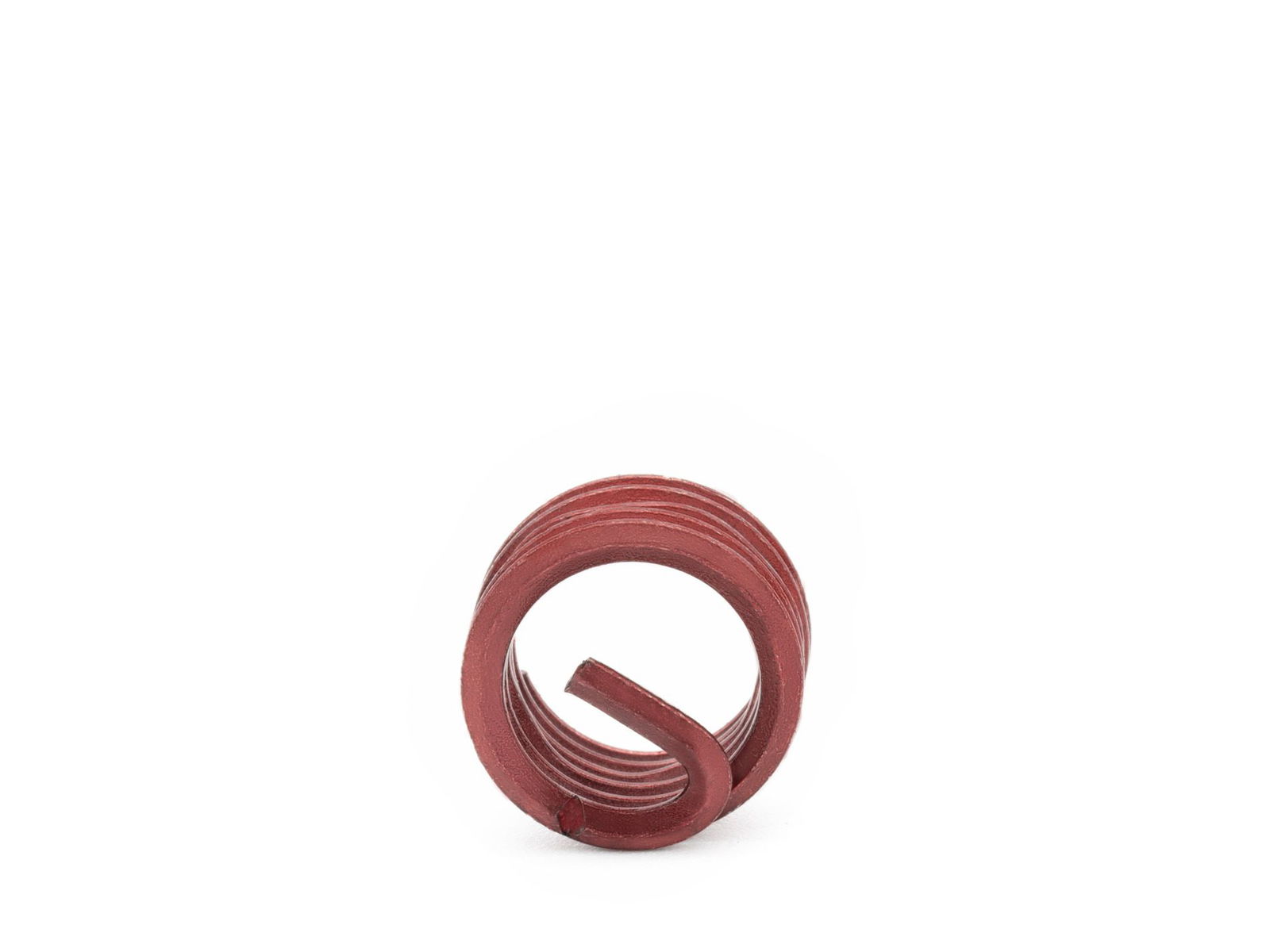

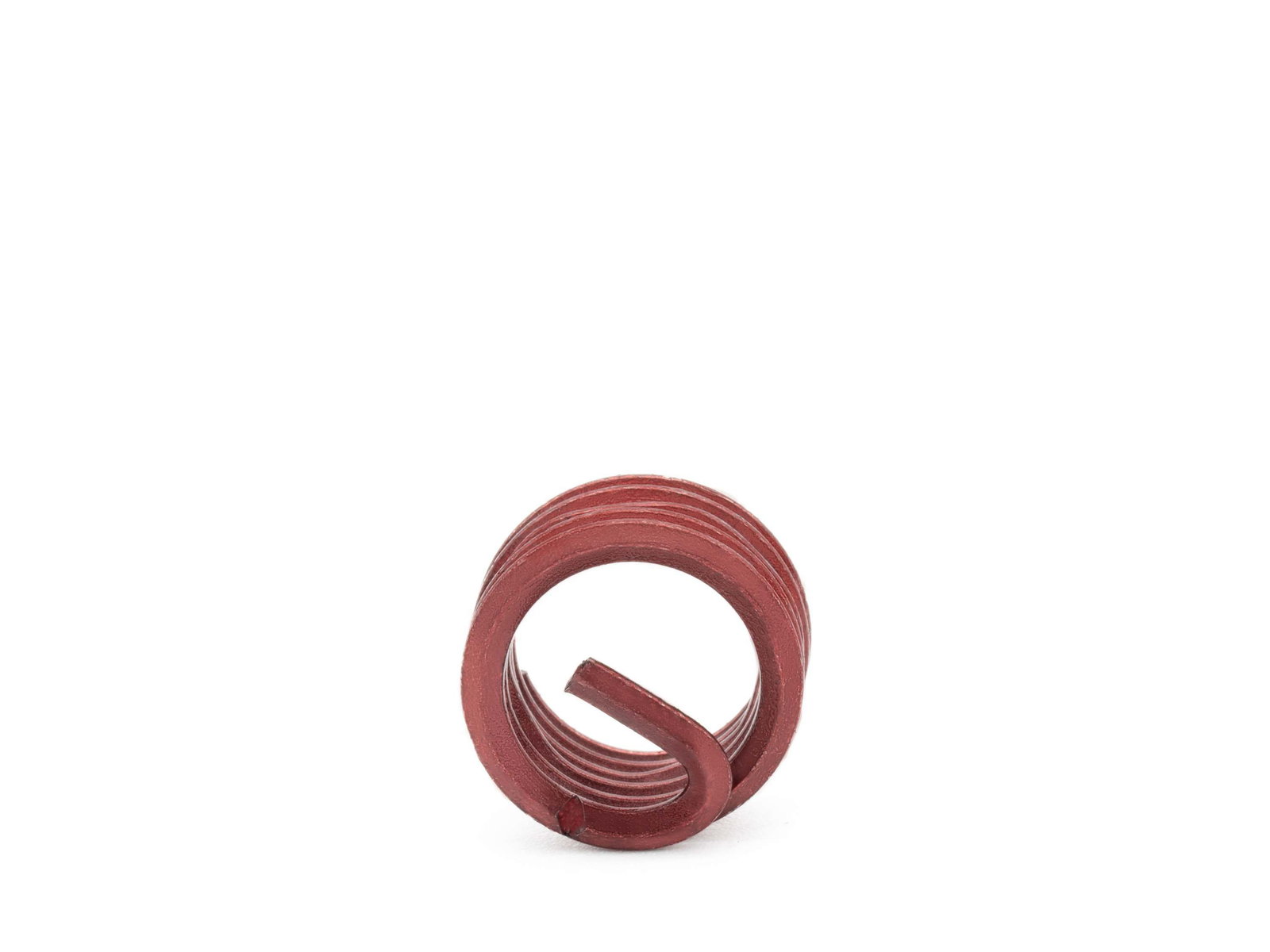

BaerCoil Wire Thread Inserts UNC No. 8 x 32 - 1.0 D (4.17 mm) - screw grip (screw locking) - 100 pcs.
BaerCoil Wire Thread Inserts UNC No. 8 x 32 - 1.0 D (4.17 mm) - screw grip (screw locking) - 100 pcs.
BaerCoil® wire thread inserts are the perfect solution for a durable, powerful threaded connection and With the BaerCoil® wire thread inserts you create perfect, durable and powerful threaded connections. At the same time, the use of wire thread inserts allows for scrap recovery and load-bearing connections in materials with low shear strength. This is why wire thread inserts is often used in automotive, electrical engineering, medical technology, lightweight construction and aerospace.
For thread repair with wire thread inserts, the thread is drilled out and a new STI thread (screw thread insert) for the wire thread insert is cut. This thread is often also called STI thread (STI=Screw Thread Insert).
BaerCoil® thread inserts are an indispensable component in aviation and vehicle construction. They ensure that both static and dynamic work loads are distributed in a balanced manner over the individual thread turns. Also, the flexibility of the thread inserts compensates for any pitch and angular errors, so that an optimal power transmission from the bolt to the nut thread is achieved. Particularly in lightweight constructions, BaerCoil® thread inserts helps to reduce the carrier material and to use smaller or shorter screw connections. Thanks to their versatility and reliability, BaerCoil® thread inserts are now an indispensable component in many industries.
BaerCoil® screw-locking thread inserts | type "screw grip " - All advantages at a glance
With the self-clamping "screw grip" thread inserts, your construction remains stable - regardless of shocks, constant vibrations or movements. The screw-locking BaerCoil® thread inserts complement the properties of the "free running" connection and have a clamping effect on the flanks of the screwed-in screw due to their polygonally shaped windings. Please use only screws of a higher strength class for this purpose, as an elastically resilient frictional connection is created. The clamping torques are comparable with the specifications in DIN 267 Part 15 and ISO 2320. Please note that special insertion tools with reduced diameters are required for screw grip inserts.
BaerCoil® thread inserts can be shortened if necessary, according to the required length, with a side cutter or similar. It should be noted that the thread inserts with screw locking have a polygonal winding approximately in the middle of the insert. This must not be removed when shortening in order to maintain the screw locking effect.
Dimensions
| Diameter |
No. 8 |
|---|---|
| Pitch |
32 |
| Dimension |
UNC No. 8 x 32 |
| Length |
1,0 D |
| T (Length when installed) |
4,17 mm |
| Thread length calculation |
1.0 D means 1 times the diameter: 1 times 4.17 mm=4.17 mm The nominal diameter at UNC No. 8 is approx. 4.17 mm |
Characteristics
| Product group |
Wire thread inserts |
|---|---|
| Product type |
BaerCoil wire thread inserts |
| Thread standard |
UNC: American Unified National Coarse thread according to ANSI B1.1 |
| Direction |
Right |
| Type |
screw grip (screw locking) |
| Tensile strength at room temperature |
>1400 N/mm² |
| Material |
Stainless Steel V2A (AISI 304, X5CrNi18-10, Material No.: 1.4301) |
| Temperature resistance |
315°C long-term 425°C short-term |
Applications
All normal uses for thread repair and thread reinforcement
Technical drawing
| Diameter |
No. 8 |
|---|---|
| Length |
1,0 D |
| T (Length when installed) |
4,17 mm |
| F (Min. - Max. outside diameter of thread insert) |
0,201 '' - 0,220 '' |
| P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
| B (thread depth with chamfer) |
0,273 '' |
| D (minimum depth of the core hole, without tip) |
0,305 '' |
