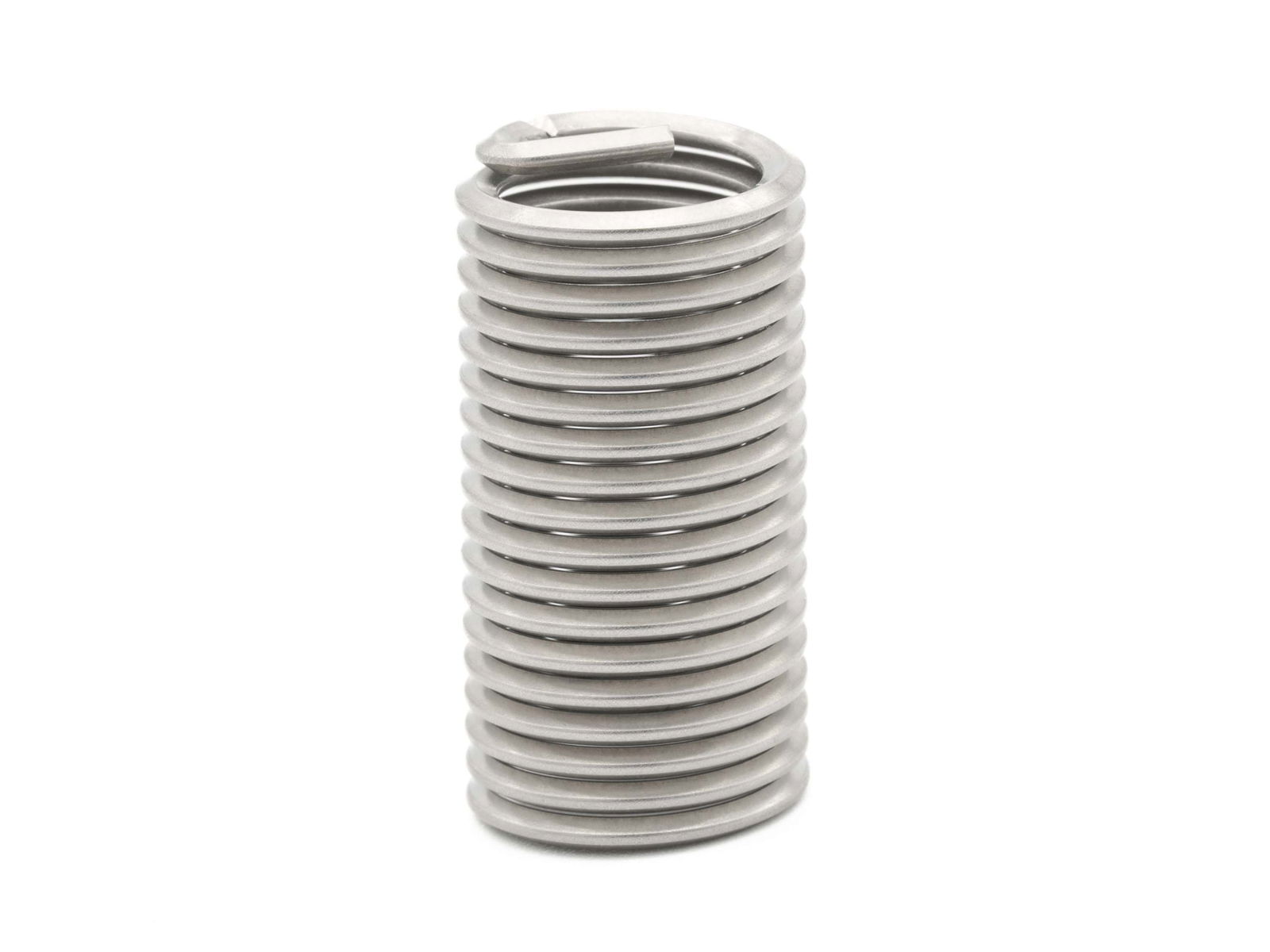

BaerCoil Wire Thread Inserts UNC No. 8 x 32 - 3.0 D (12.5 mm) - free running - 100 pcs.
€71.11*
Prices incl. VAT plus shipping costs
In stock
Express shipping is also possible for this product
BaerCoil Wire Thread Inserts UNC No. 8 x 32 - 3.0 D (12.5 mm) - free running - 100 pcs.
BaerCoil® thread inserts are the perfect solution for your thread repair needs! These inserts provide a durable and powerful thread connection and scrap recovery. With BaerCoil® thread inserts you also create load-bearing connections in materials with low shear strength. Precise and wear-resistant, the inserts hold your screw firmly in place without changing the thread insert. Ideal for repairing stripped or worn threads. wire thread inserts are often used in automotive, electrical, medical, lightweight construction, and aerospace applications.
The BaerCoil® thread insert is the perfect solution for damaged threads - with the same nominal diameter! For thread repair with wire thread inserts, the thread is drilled out and a new STI thread (screw thread insert) for the wire thread insert is cut. This thread is often also called STI thread (STI=Screw Thread Insert).
BaerCoil® thread inserts are essential for optimal power transmission in lightweight constructions. They ensure that both static and dynamic work loads are distributed in a balanced manner to the individual thread turns. Also, the flexibility of the thread inserts compensates for any pitch and angle errors. BaerCoil® thread inserts not only save time and money, but are also much lighter and more compact than conventional screw connections.
BaerCoil® thread inserts can be shortened, according to the required length, with a side cutter or similar.
Dimensions
Diameter |
No. 8 |
---|---|
Pitch |
32 |
Dimension |
UNC No. 8 x 32 |
Length |
3,0 D |
T (Length when installed) |
12,5 mm |
Thread length calculation |
3.0 D means 3 times the diameter: 3 times 4.17 mm=12.5 mm The nominal diameter at UNC No. 8 is approx. 4.17 mm |
Characteristics
Product group |
Wire thread inserts |
---|---|
Product type |
BaerCoil wire thread inserts |
Thread standard |
UNC: American Unified National Coarse thread according to ANSI B1.1 |
Direction |
Right |
Type |
free running |
Tensile strength at room temperature |
>1400 N/mm² |
Material |
Stainless Steel V2A (AISI 304, X5CrNi18-10, Material No.: 1.4301) |
Temperature resistance |
315°C long-term 425°C short-term |
Applications
All normal uses for thread repair and thread reinforcement
Technical drawing
Diameter |
No. 8 |
---|---|
Length |
3,0 D |
T (Length when installed) |
12,5 mm |
F (Min. - Max. outside diameter of thread insert) |
0,201 '' - 0,220 '' |
P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
B (thread depth with chamfer) |
0,601 '' |
D (minimum depth of the core hole, without tip) |
0,633 '' |
