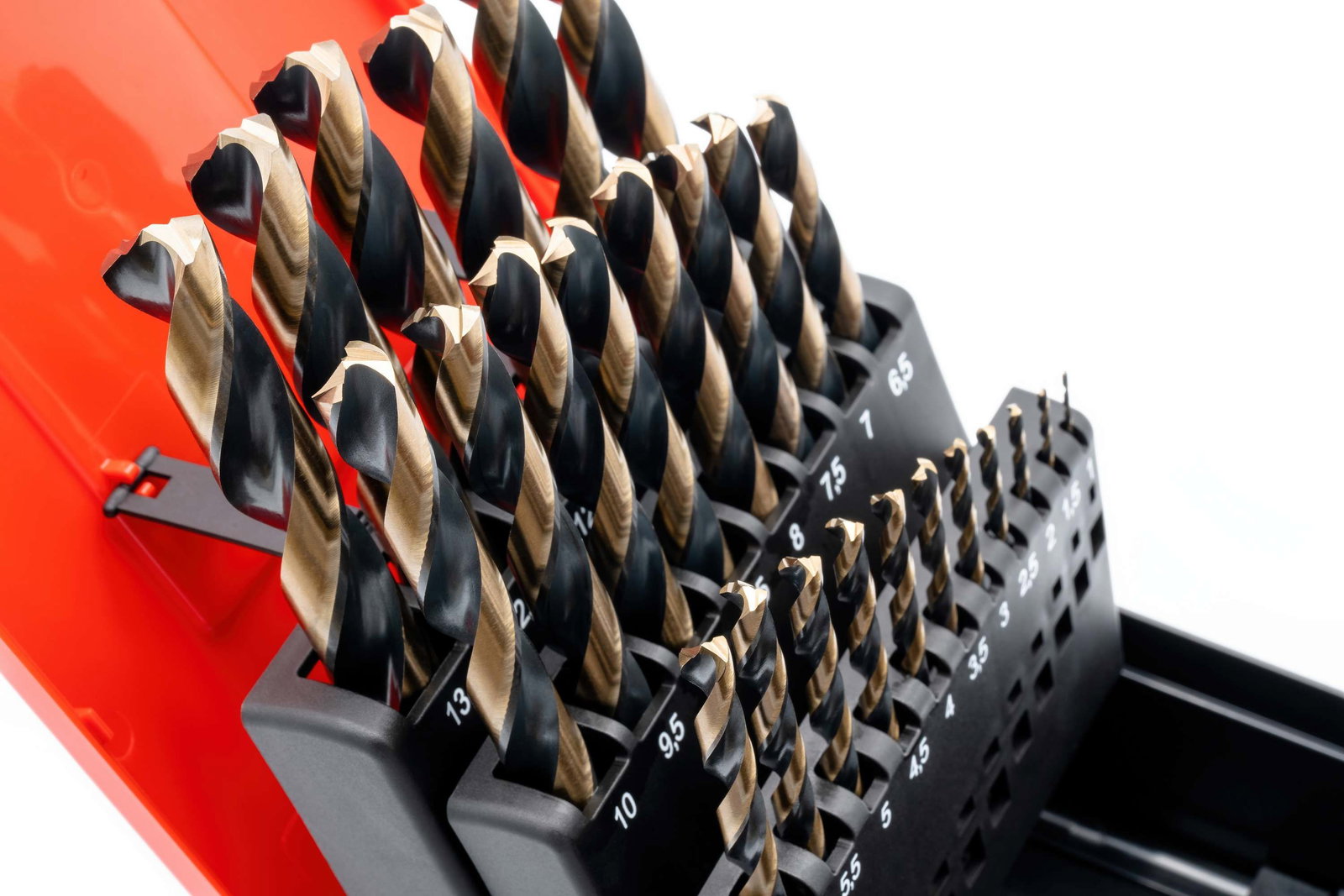

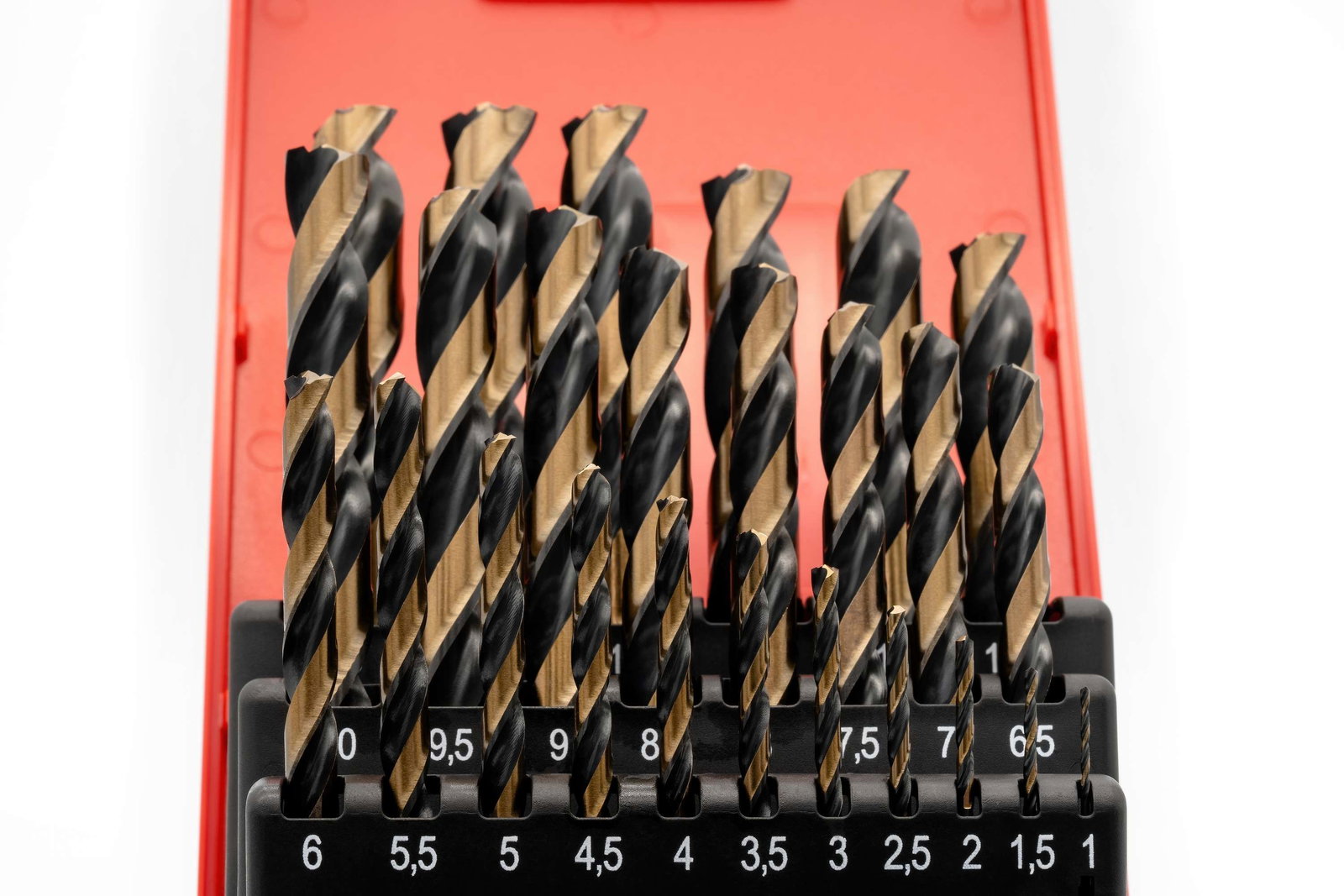

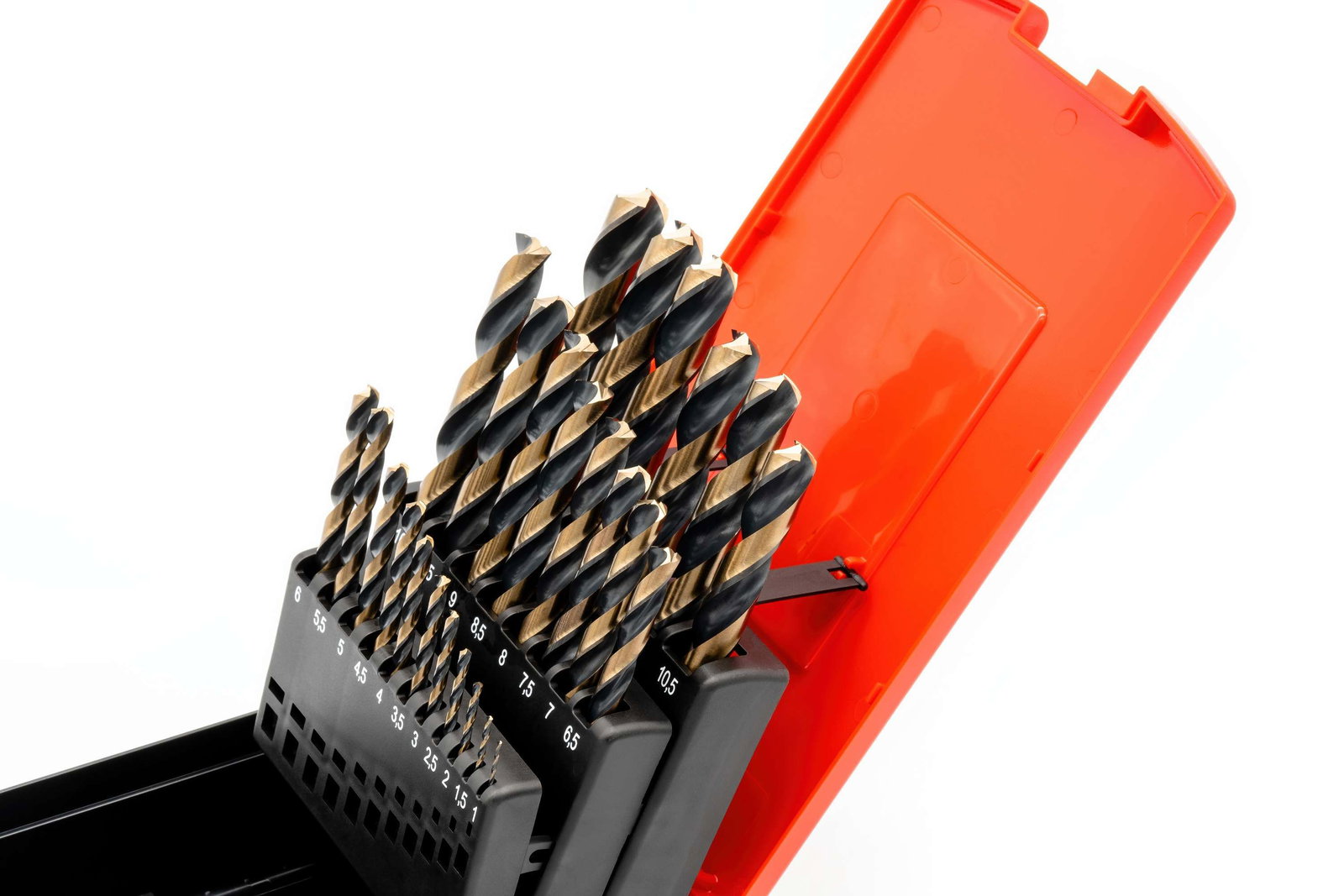

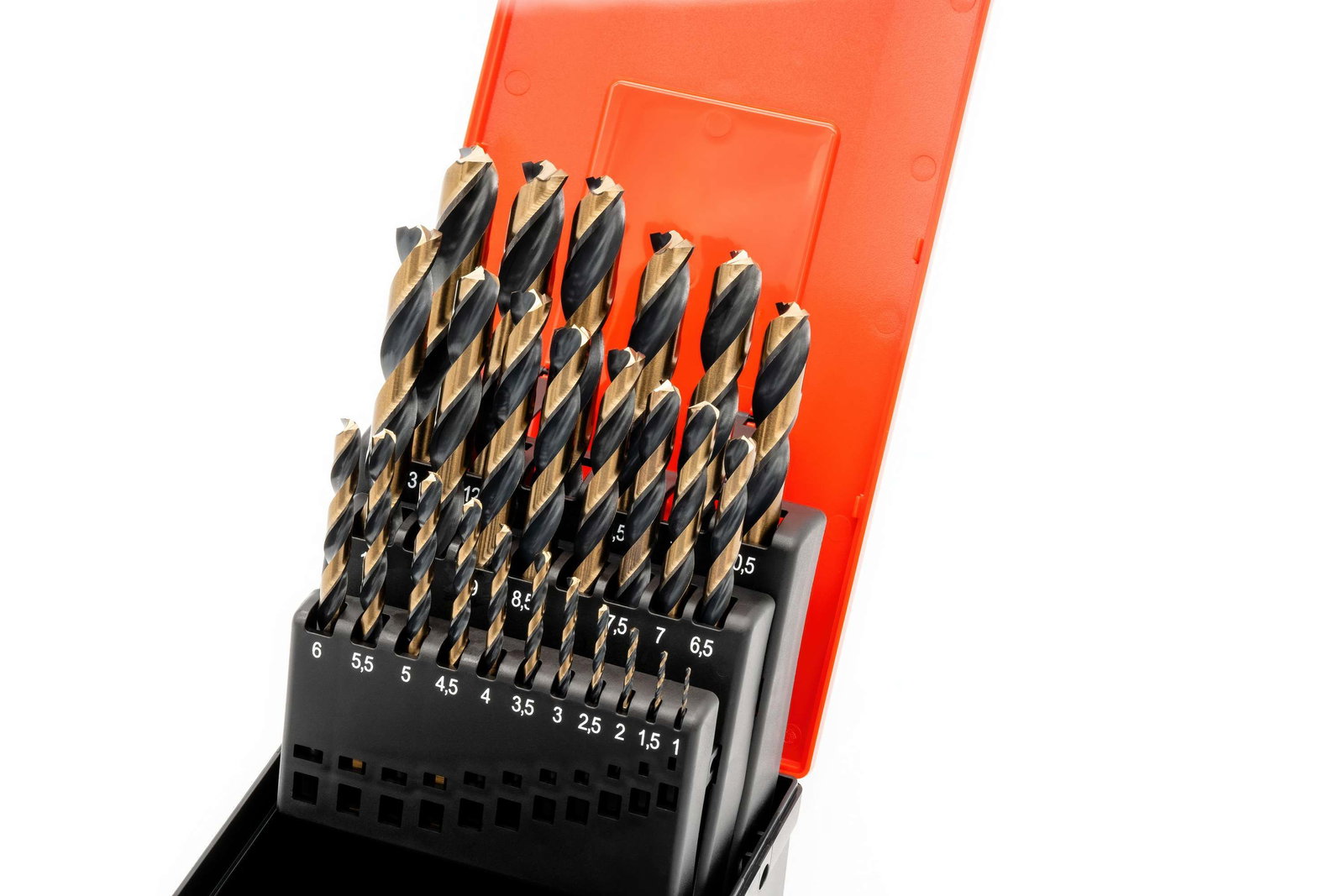

HSSE Power Drill Bit Set (0.5mm rising) 1 - 13 mm with three-face shank
HSSE Power Drill Bit Set (0.5mm rising) 1 - 13 mm with three-face shank
Full of energy, you start your next "Do It Yourself" project. You are just about to drill your first hole and then - it slips and frays. Very, very annoying! Especially with round and very smooth surfaces this can happen quickly. With the BAER POWER twist drills in tested industrial quality, this will no longer happen to you. This twist drill bit set contains all common sizes from 1 mm to 10 mm diameter. Especially when it comes to tools, it is always worth spending a few euros more. Our POWER twist drill bit is perfect for drilling a particularly even hole with pinpoint accuracy without having to pre-drill. The twist drill bit produces very clean holes without burrs on the edge of the hole. Here you get a top-class twist drill bit set that takes drilling to a new level. This makes DIY fun again and the next projects can come.
This BAER twist drill set is suitable for the following applications: High-strength materials, stainless steels, rust-, acid- and heat-resistant steel, carbon steel, sheet metal, tool steel, aluminium alloy, plastic sheets, iron, alloyed steel, non-ferrous metals, cast materials, bronzes, heat-treatable and case-hardening steels up to 1200 N/mm² and copper.
Dimensions
| Diameter |
1 - 13 mm |
|---|---|
| Dimension |
1 - 13 mm |
| Machine mount |
cylindrical shank |
Characteristics
| Product group |
Twist drill bits |
|---|---|
| Product type |
Twist drill bit sets |
| Direction |
Right |
| Standard |
DIN 338 |
| Type |
N |
| Material |
5% cobalt alloyed HSSE high speed steel |
Applications
Suitable for iron, steels, bronze up to 1300 N/mm², high-strength CrNi-based alloys, rust-resistant steels, acid-resistant steels, heat-resistant steels, wood, aluminium, stainless steels, high-strength materials, carbon steel, metal sheet, tool steel, aluminium alloy, plastic sheet, alloy steel, non-ferrous metals, cast iron, heat-treatable steels up to 1200 N/mm², case-hardening steels up to 1200 N/mm², copper
Technical drawing
| L1 |
34 - 151 mm |
|---|---|
| L2 |
12 - 101 mm |
| Diameter |
1 - 13 mm |
Content
| Quantity | ØD1 [mm] | L1 [mm] | L2 [mm] |
|---|---|---|---|
| 1x | 1 | 34 | 12,0 |
| 1x | 1,5 | 40 | 18,0 |
| 1x | 2 | 49 | 24,0 |
| 1x | 2,5 | 57 | 30,0 |
| 1x | 3 | 61 | 33,0 |
| 1x | 3,5 | 70 | 39,0 |
| 1x | 4 | 75 | 43,0 |
| Quantity | ØD1 [mm] | L1 [mm] | L2 [mm] |
|---|---|---|---|
| 1x | 4,5 | 80 | 47,0 |
| 1x | 5 | 86 | 52,0 |
| 1x | 5,5 | 93 | 57,0 |
| 1x | 6 | 93 | 57,0 |
| 1x | 6,5 | 101 | 63,0 |
| 1x | 7 | 109 | 69,0 |
| 1x | 7,5 | 109 | 69,0 |
| Quantity | ØD1 [mm] | L1 [mm] | L2 [mm] |
|---|---|---|---|
| 1x | 8 | 117 | 75,0 |
| 1x | 8,5 | 117 | 75,0 |
| 1x | 9 | 125 | 81,0 |
| 1x | 9,5 | 125 | 81,0 |
| 1x | 10 | 133 | 87,0 |
| 1x | 10,5 | 133 | 87,0 |
| 1x | 11 | 142 | 94,0 |
| Quantity | ØD1 [mm] | L1 [mm] | L2 [mm] |
|---|---|---|---|
| 1x | 11,5 | 142 | 94,0 |
| 1x | 12 | 151 | 101,0 |
| 1x | 12,5 | 151 | 101,0 |
| 1x | 13 | 151 | 101,0 |
Safety instructions

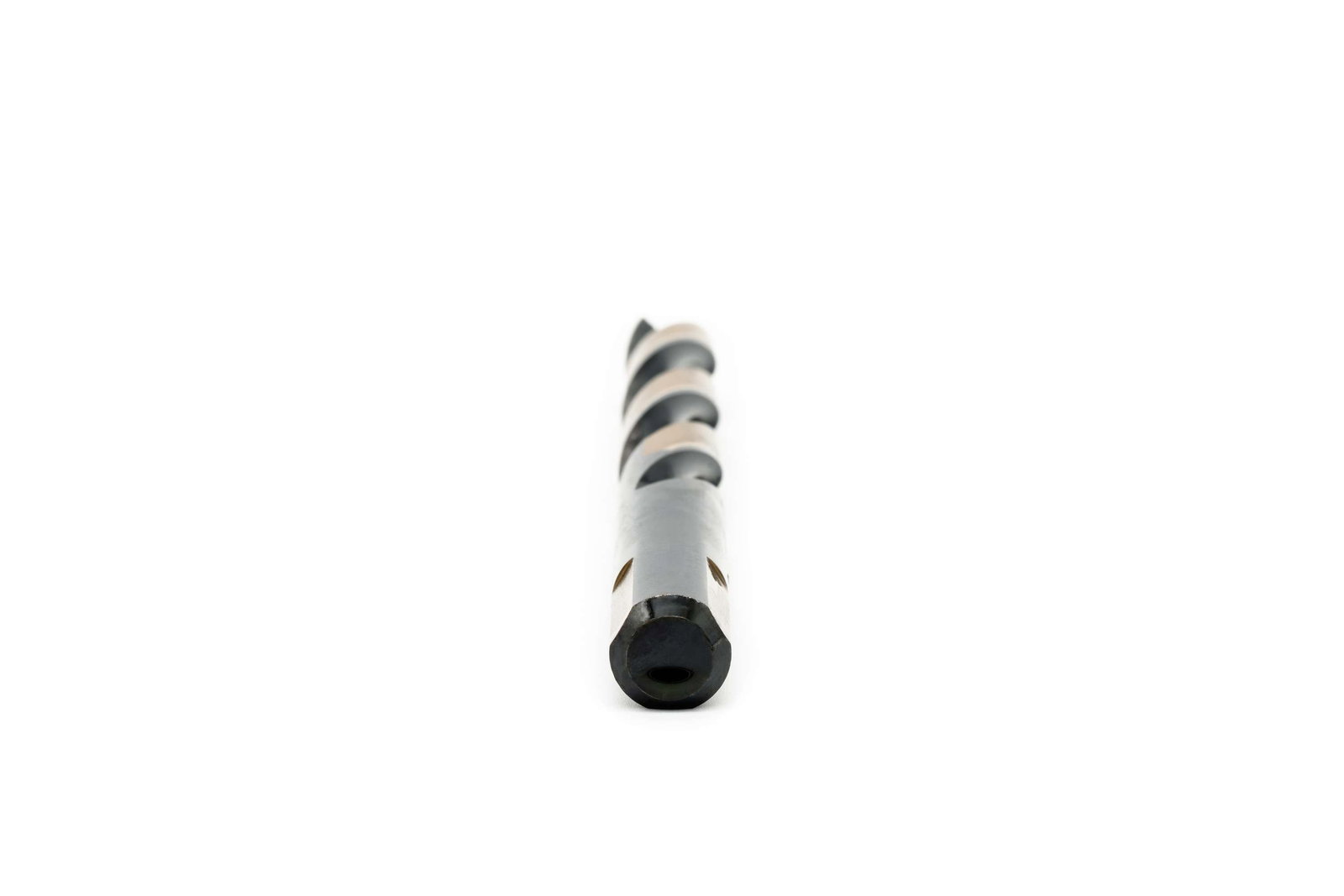

Power drill with triangular shank
(triangular shank from ⌀ 4.0 mm)
Thanks to the triangular shank, annoying slipping of the drill bit in the drill chuck is finally a thing of the past. Twist drill bit from a diameter of 4.0 mm benefit from these additional clamping surfaces. These ensure outstanding fixation in the drill chuck and optimum power transmission during DIY. Thanks to the shank, this twist drill bit is also ideally suited for hand-held cordless drills and can even be operated effortlessly with one hand. Thanks to the lower power consumption, you even save energy and preserve your battery. Here you buy an absolute power set twist drill bit that leaves nothing to be desired and that no hobby workshop should be without.
The advantages at a glance:
- no slipping of the drill
- excellent fixation
- ideal power transmission
- battery-friendly due to low power consumption
Self-centring turbo tip
(from ⌀ 3.0 mm)
The self-centring turbo tip is very suitable for sheet metal and curved surfaces and enables one-hand drilling on round pipes from any direction.
With these twist drills you never lose control. The cutting tip acts like razor blades and ensures up to 5 times faster drilling than other drills.
Precise, fast and stable drilling is possible thanks to the double cutting tip.
The advantages at a glance:
- very suitable for sheet metal and curved surfaces, also difficult to machine such as stainless steels
- precise, burr-free drilling without spot drilling
- Easy handling under full control
- 5x faster drilling than other drills

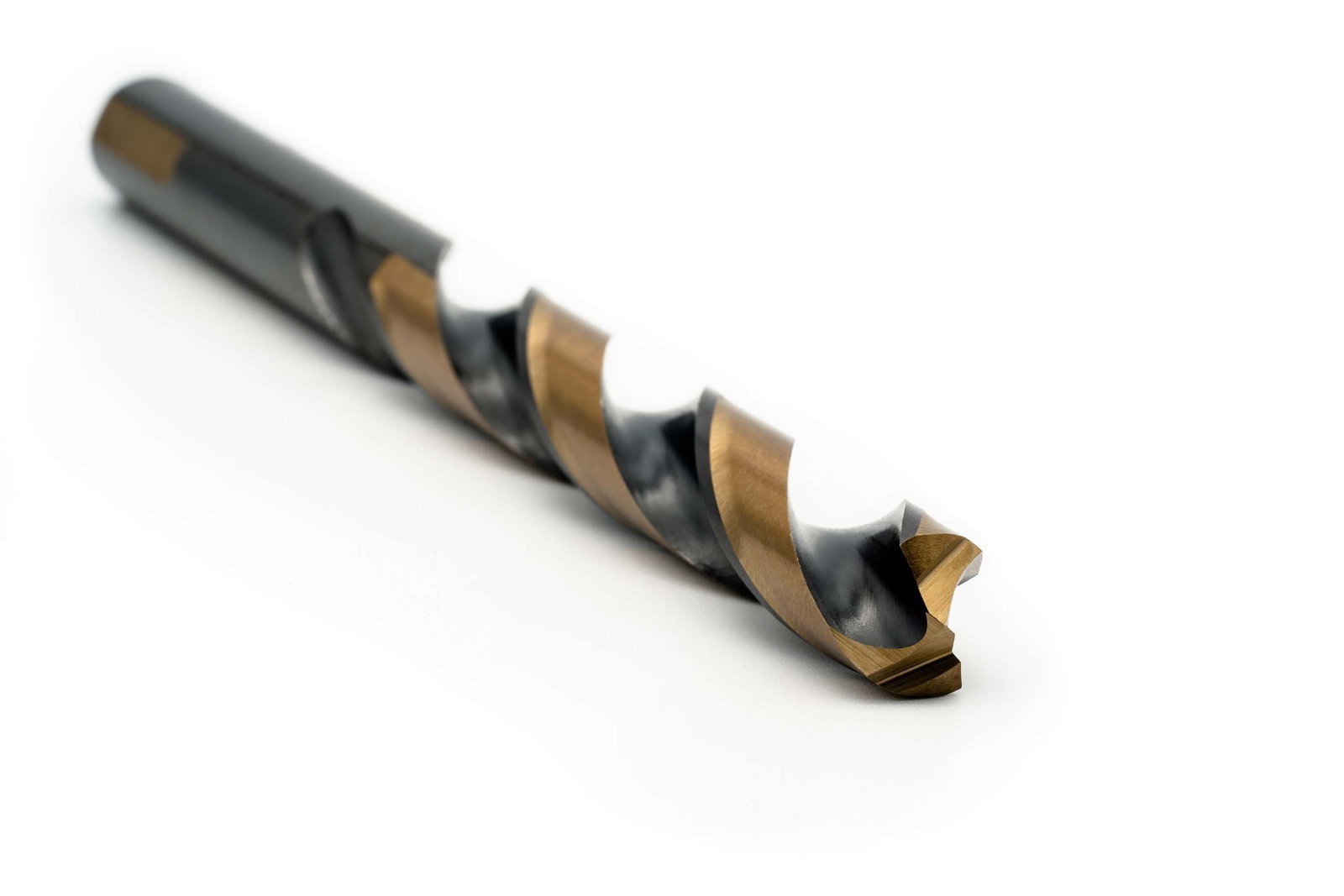

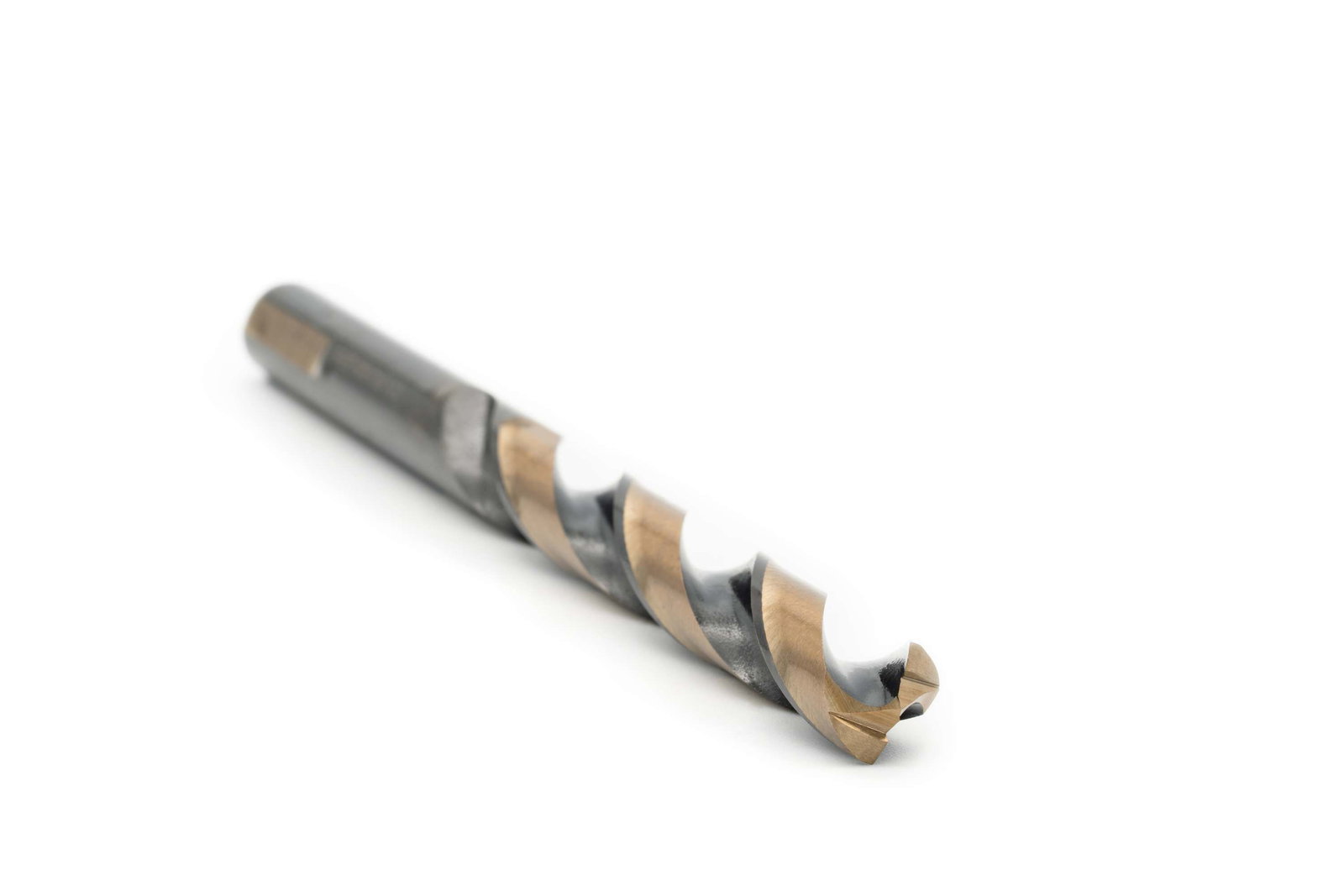

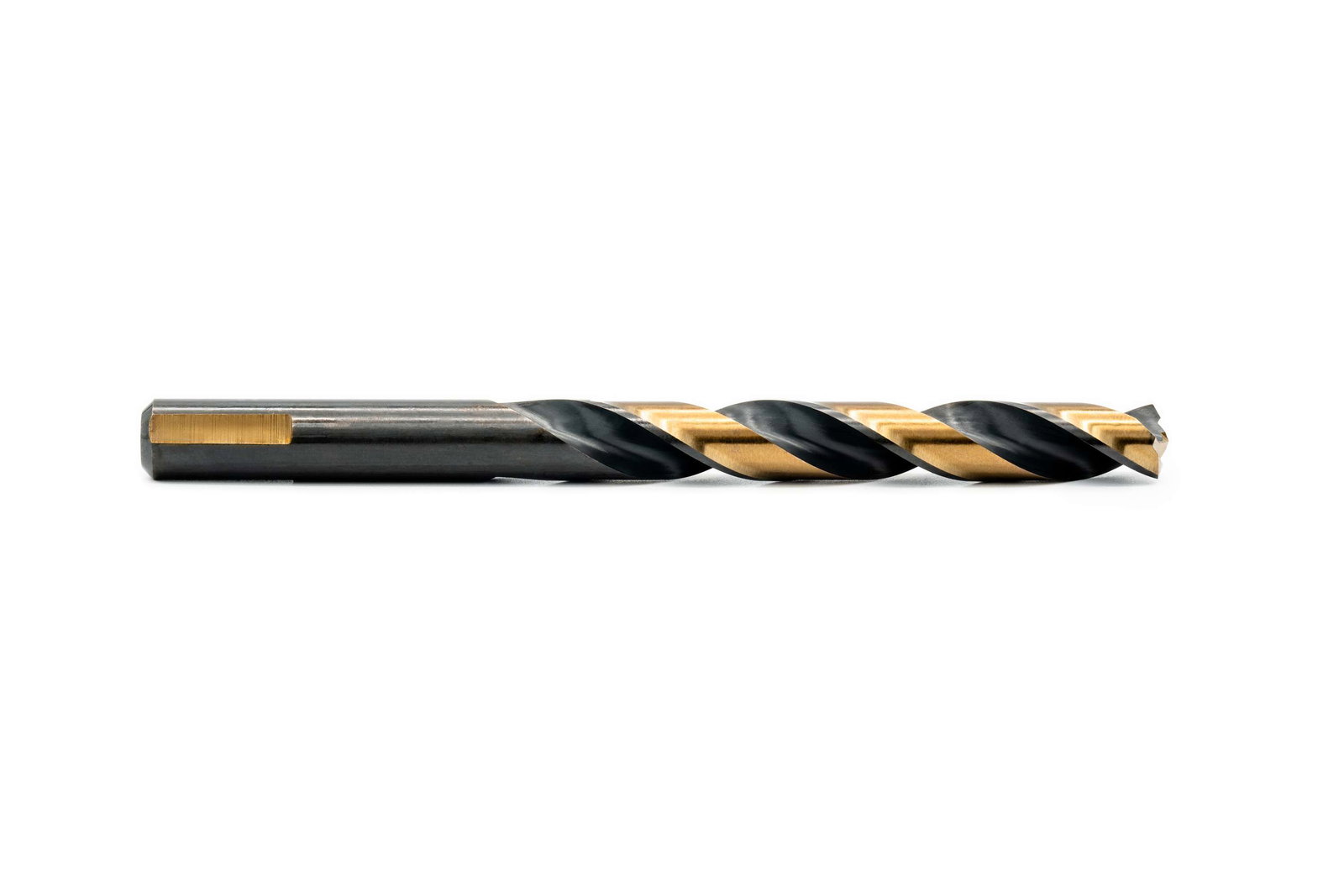

Drill body made of ground high-speed steel with 5% cobalt alloy
The fully ground variable helix drills ensure extremely precise and perfect circular holes. Two lateral chip breakers ensure fast chip removal and less burr residue. The high-quality HSS material of the drills guarantees excellent cutting performance and a long service life. Here you get a particularly stable twist drill bit with 5% cobalt alloy for pronounced heat resistance. The BAER twist drill bit in this set have a triangular shank, a double cutting point (turbo) and a black and gold surface treatment. A real eye-catcher in BAER's own colours.
The advantages at a glance:
- excellent tool life time
- easy chip removal
- Cobalt alloy for distinct heat resistance and universal use even in difficult-to-machine materials
- Triangular shank and a double cutting point
Quality for a long service life
The wood drill bits from BAER are characterised by:
- precise, fast & stable drilling
- excellent cutting performance
- fast chip removal & less burr residues
- long service life
Precise work and long-term cost savings make this set indispensable for every do-it-yourselfer.
