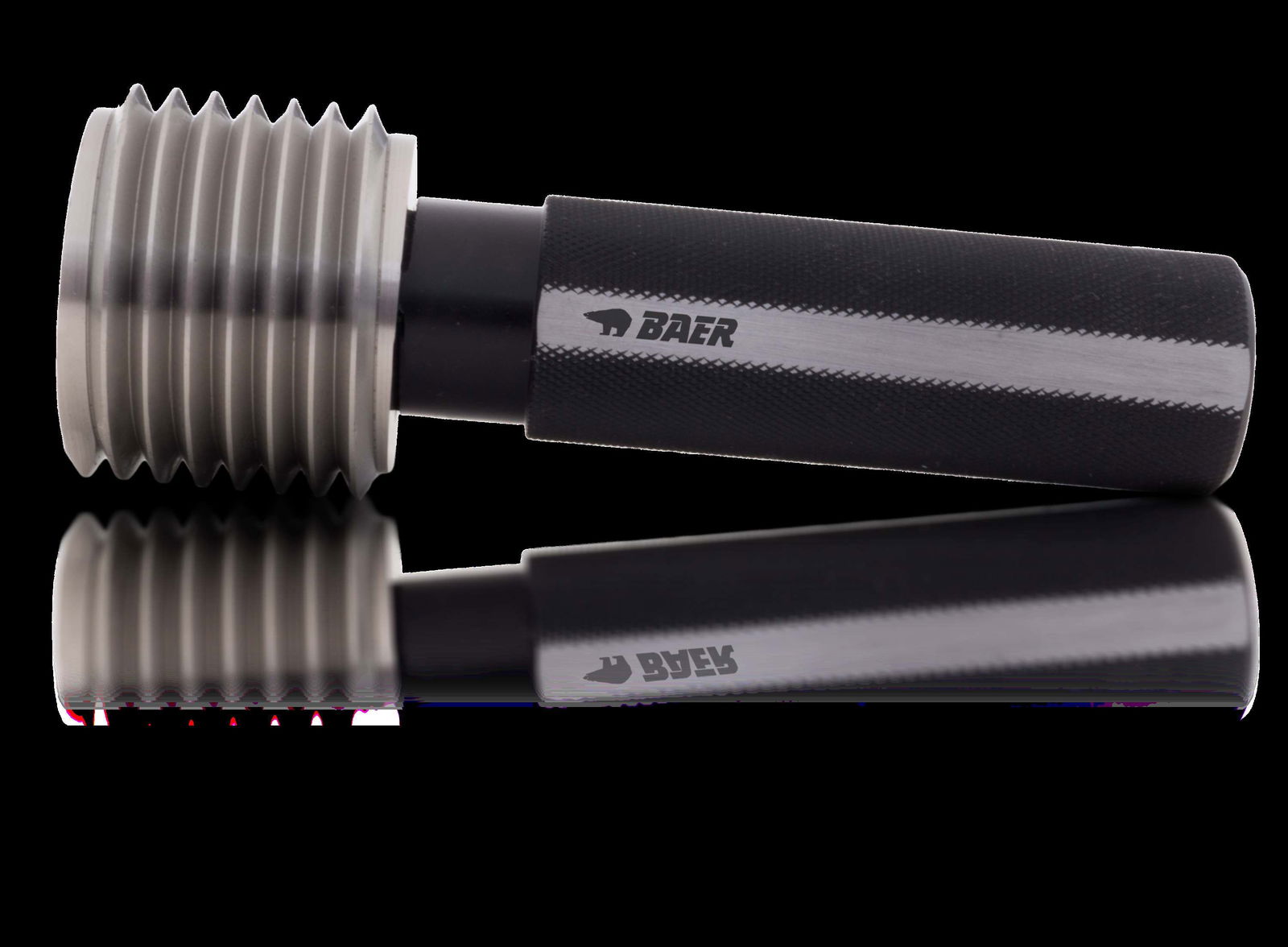

Thread Plug Gauge GO MF 76 x 1.5 - tolerance 6H
Thread Plug Gauge GO MF 76 x 1.5 - tolerance 6H
The BAER- thread Go gauge plug is a reliable and high-quality testing device for all cut or formed internal thread. You can check the so-called mating dimension of the internal thread and the screw-in ability with the go plug gauge. The thread profile of the plug gauge must be able to be screwed into the thread completely and easily by hand. The plug gauge is made of high-quality special gauge steel and is hardened, stress-relieved and finely ground.
Calibration
In the section accessories you can purchase a calibration for your gauge.
Please order the article with article number "KAL01" and the number of gauges you would like to have calibrated.
In the further order process you have the possibility to indicate in the "comment field" which of the ordered gauges you would like to have calibrated.
Dimensions
| Diameter |
76 |
|---|---|
| Pitch |
1,5 |
| Dimension |
MF 76 x 1,5 |
Characteristics
| Product group |
Thread gauges |
|---|---|
| Product type |
Thread plug gauges |
| Thread standard |
MF: Metric ISO fine thread according to DIN 13 |
| Tolerance |
ISO2/6H |
| Direction |
Right |
| Material |
Special gauge steel |
