Thread Plug Gauge GO MF 78 x 1.5 - tolerance 6H
EAN
4058462124174
Item no
122201098
PDF offer
Create PDF offer for this product
Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product information

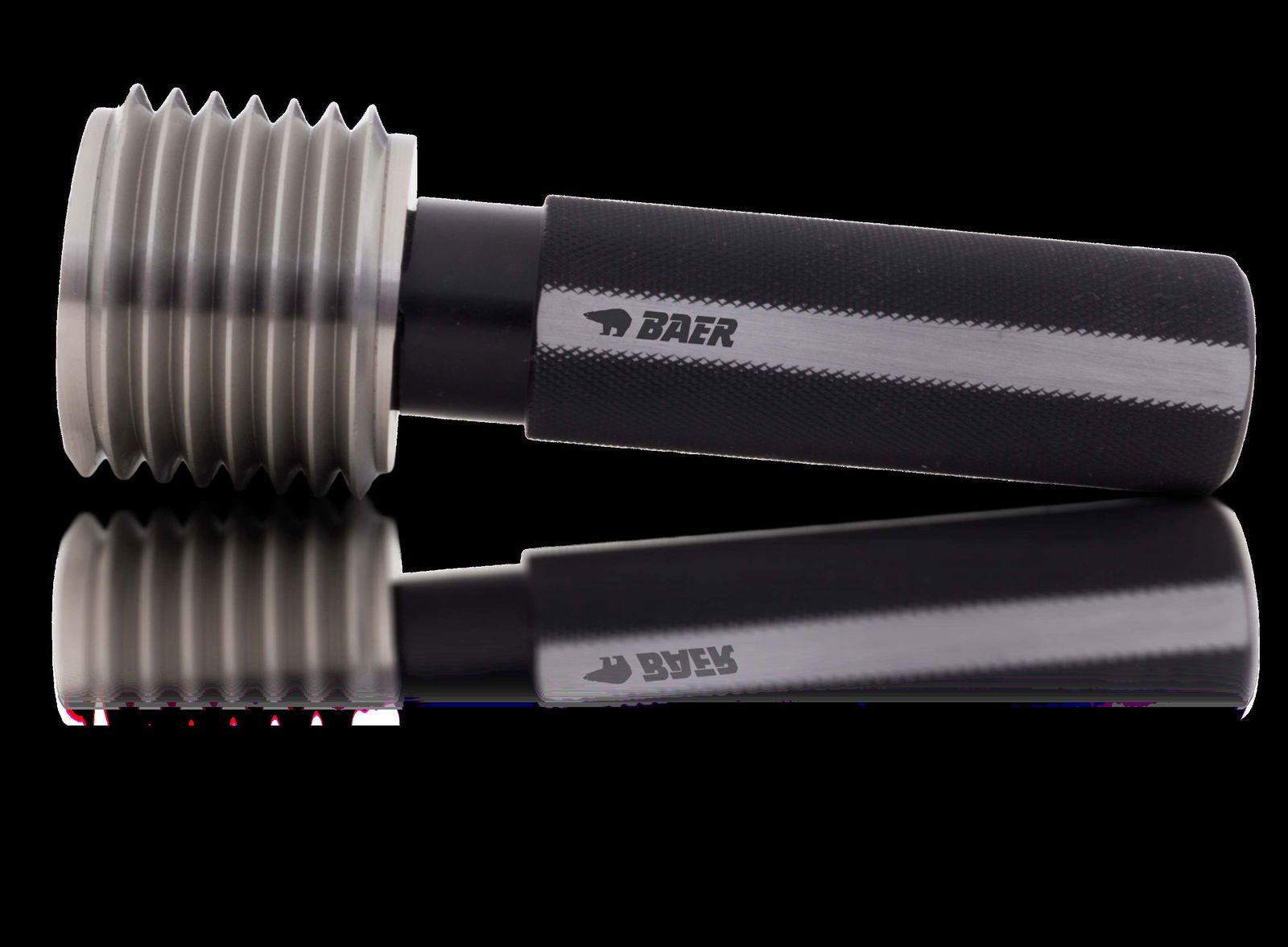

Thread Plug Gauge GO MF 78 x 1.5 - tolerance 6H
The BAER- thread Go gauge plug is a reliable way to test the so-called mating dimension of the internal thread and the screw-in ability. The thread profile of the plug gauge must be able to be completely and easily screwed into the thread by hand. The go plug gauge is made of high-quality special gauge steel and is hardened, stress-relieved and finely ground.
Calibration
In the section accessories you can purchase a calibration for your gauge.
Please order the article with article number "KAL01" and the number of gauges you would like to have calibrated.
In the further order process you have the possibility to indicate in the "comment field" which of the ordered gauges you would like to have calibrated.
Dimensions
| Diameter |
78 |
|---|---|
| Pitch |
1,5 |
| Dimension |
MF 78 x 1,5 |
Characteristics
| Product group |
Thread gauges |
|---|---|
| Product type |
Thread plug gauges |
| Thread standard |
MF: Metric ISO fine thread according to DIN 13 |
| Tolerance |
ISO2/6H |
| Direction |
Right |
| Material |
Special gauge steel |
