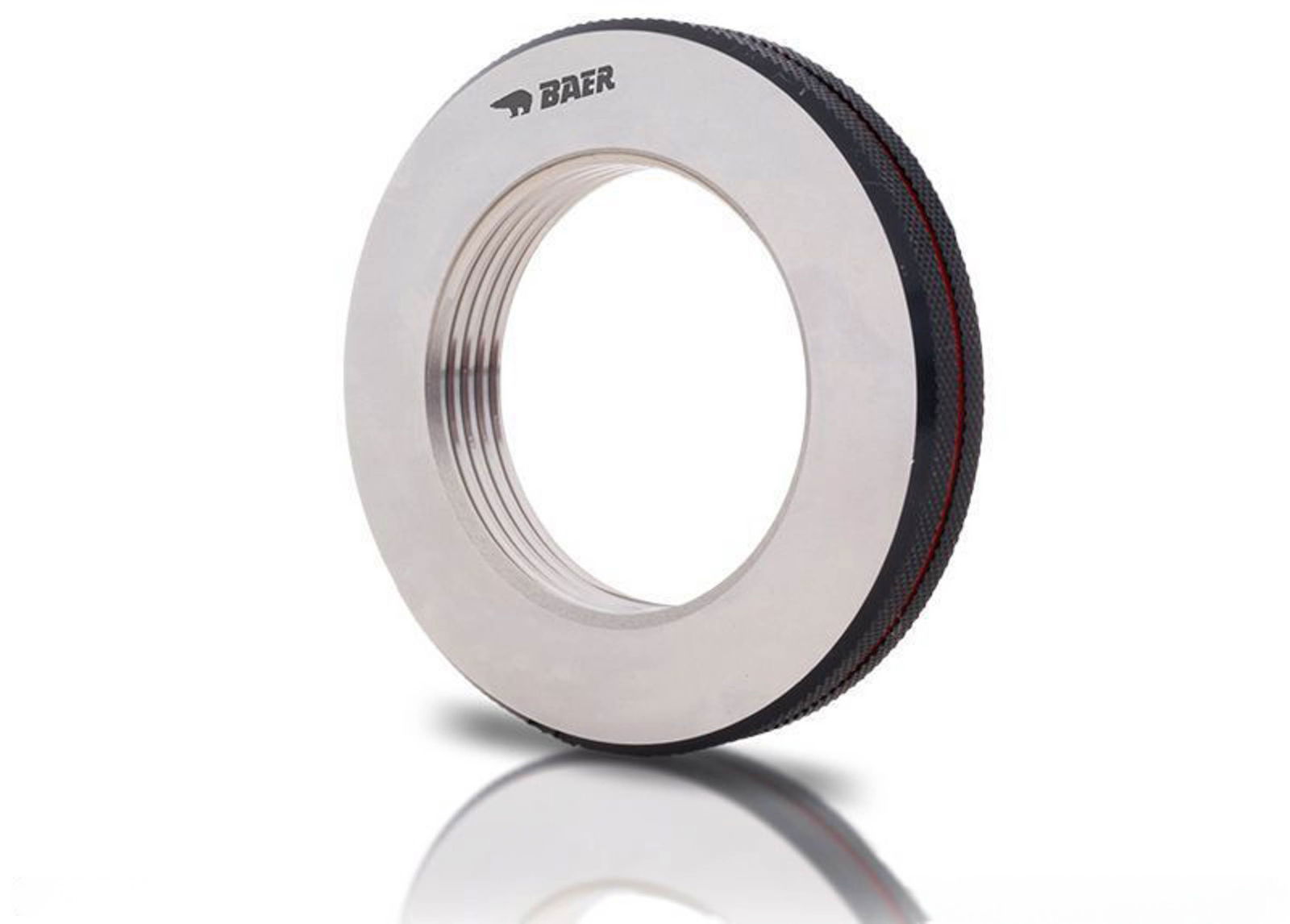

Thread ring gauge GO M 8 x 1.25 - tolerance 6g
In stock
Thread ring gauge GO M 8 x 1.25 - tolerance 6g
When testing the external thread, it must be possible to screw the full thread profile of the ring gauge completely onto the thread. The BAER good ring gauge checks the so-called mating dimension as well as the screw-on ability. Since the thread-good ring gauge wears out more quickly, it should be checked again and again with the wear test mandrel. With the thread limit ring gauge, also called a ring gauge nut, you can check the flank and core diameter of external threads. The material of the thread limit ring gauges consists of high-quality special gauge steel. This allows you to use your ring gauges for a long time for reliable thread testing.
Calibration
In the section accessories you can purchase a calibration for your gauge.
Please order the article with article number "KAL01" and the number of gauges you would like to have calibrated.
In the further order process you have the possibility to indicate in the "comment field" which of the ordered gauges you would like to have calibrated.
Dimensions
| Diameter |
8 |
|---|---|
| Pitch |
1,25 |
| Dimension |
M 8 x 1,25 |
Characteristics
| Product group |
Thread gauges |
|---|---|
| Product type |
Thread ring gauges |
| Thread standard |
M: Metric ISO standard thread according to DIN 13 |
| Tolerance |
6g |
| Direction |
Right |
| Material |
Special gauge steel |
