Thread ring gauge NO-GO MF 6 x 0.75 - tolerance 6g
Thread ring gauge NO-GO MF 6 x 0.75 - tolerance 6g

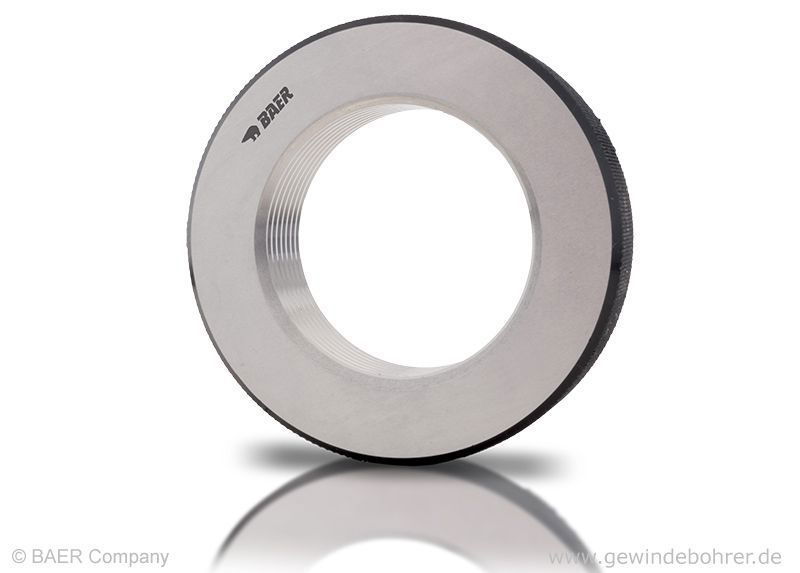

Reject ring gauges are specially designed tools that have shortened threads and cannot be fully unscrewed. A maximum of two turns is a guide value here. The BAER thread reject ring gauge checks the actual flank diameter of the external thread, which must have at least the specified minimum dimension. The external and core diameters are not tested. Scrap ring gauges are therefore the perfect tools for testing components with complex geometries.
Calibration
In the section accessories you can purchase a calibration for your gauge.
Please order the article with article number "KAL01" and the number of gauges you would like to have calibrated.
In the further order process you have the possibility to indicate in the "comment field" which of the ordered gauges you would like to have calibrated.
Dimensions
| Diameter |
6 |
|---|---|
| Pitch |
0,75 |
| Dimension |
MF 6 x 0,75 |
Characteristics
| Product group |
Thread gauges |
|---|---|
| Product type |
Thread ring gauges |
| Thread standard |
MF: Metric ISO fine thread according to DIN 13 |
| Tolerance |
6g |
| Direction |
Right |
| Material |
Special gauge steel |
