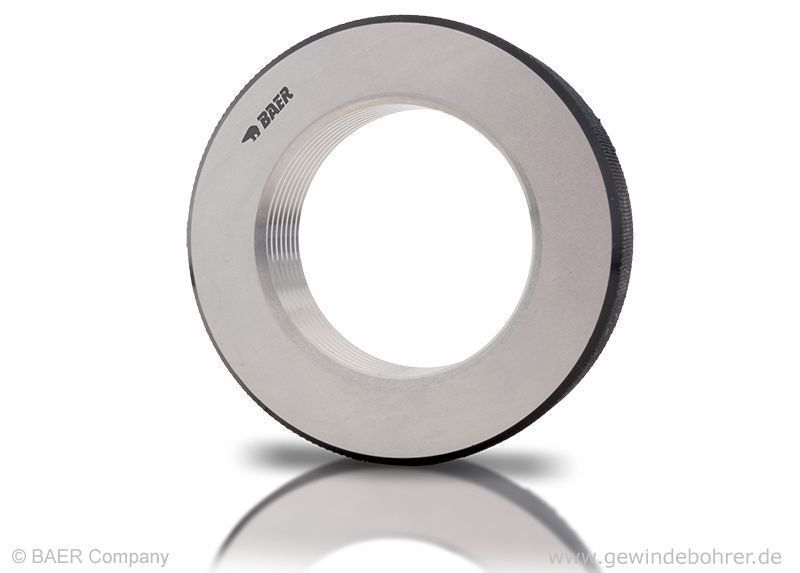

Thread ring gauge NO-GO MF 95 x 1.5 - tolerance 6g
EAN
4058462127137
Item no
122601270
PDF offer
Create PDF offer for this product
Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product information
Thread ring gauge NO-GO MF 95 x 1.5 - tolerance 6g
Reject ring gauges have shortened threads and must not be able to be unscrewed completely. A maximum of two turns is a guide value here. The BAER thread check ring gauge checks the actual flank diameter of the external thread, which must have at least the specified minimum dimension. The external and core diameters are not tested.
Calibration
In the section accessories you can purchase a calibration for your gauge.
Please order the article with article number "KAL01" and the number of gauges you want to have calibrated.
In the further order process you have the possibility to indicate in the "comment field" which of the ordered gauges you want to have calibrated.
Dimensions
| Diameter |
95 |
|---|---|
| Pitch |
1,5 |
| Dimension |
MF 95 x 1,5 |
Characteristics
| Product group |
Thread gauges |
|---|---|
| Product type |
Thread ring gauges |
| Thread standard |
MF: Metric ISO fine thread according to DIN 13 |
| Tolerance |
6g |
| Direction |
Right |
| Material |
Special gauge steel |
