BAER ULTRA SET HSSE STAINLESS STEEL: Hand Taps | Cutting Dies | Tools | Cutting Paste: M 3 - 12
BAER ULTRA SET HSSE STAINLESS STEEL: Hand Taps | Cutting Dies | Tools | Cutting Paste: M 3 - 12
Environmentally friendly box
Full range from M 3 - M 12
Optimised tools for machining stainless steel
Professional thread- tool box of the absolute top class
- COMPROMISE-FREE - The set for everyone who is looking for the highest quality. A set that can be inherited in the best case scenario, as all tools are of the highest quality in materials, grinding pattern and ideas
- INNOVATIVE - For straight setting, all taper tap (No. 1) of the 3-piece hand taps- sets have a guide nose. Cutting crooked threads is the most common cause of tool breakage. With these taps, skewing is impossible thread cutting
- REINFORCED - By means of die guides made of turned and vaporised free-cutting steel, the bolt is also guided in such a way that it is always cut straight. This protects the die and the threads are always straight
- CONCURRENCYLESS - BAER is not aware of any competitor on the market that offers such a set in this design, quality and with these innovations for the end user
- BAERENSTARK - Here you buy a thread cutting set of the extra class. Perfectly arranged taps in a stylish tool case. Completely logically arranged, the matching core drill bit and holding tools are immediately at hand
- VERSATILE - This professional tapping set is suitable for a wide range of threading operations and impresses with its tested BAER quality
- FLEXIBLE - Tap set for the production of internal & external threads. Thanks to the holding tools, effective and precise drilling is guaranteed
- SUSTAINABLE - Tool box made from glucose, natural waxes, minerals and natural fibres | closed CO₂ cycle and recyclable - no more plastic cases!
BAER ULTRA - For the love of tools and crafts
Real innovations that make thread cutting easier
#In real even more beautiful
By enthusiasts for enthusiasts. This tap set has been redesigned from the ground up to meet your needs and not only present the tapping tools as high-performance tools, but from the box down to the smallest accessories in a unique, long-lasting quality.

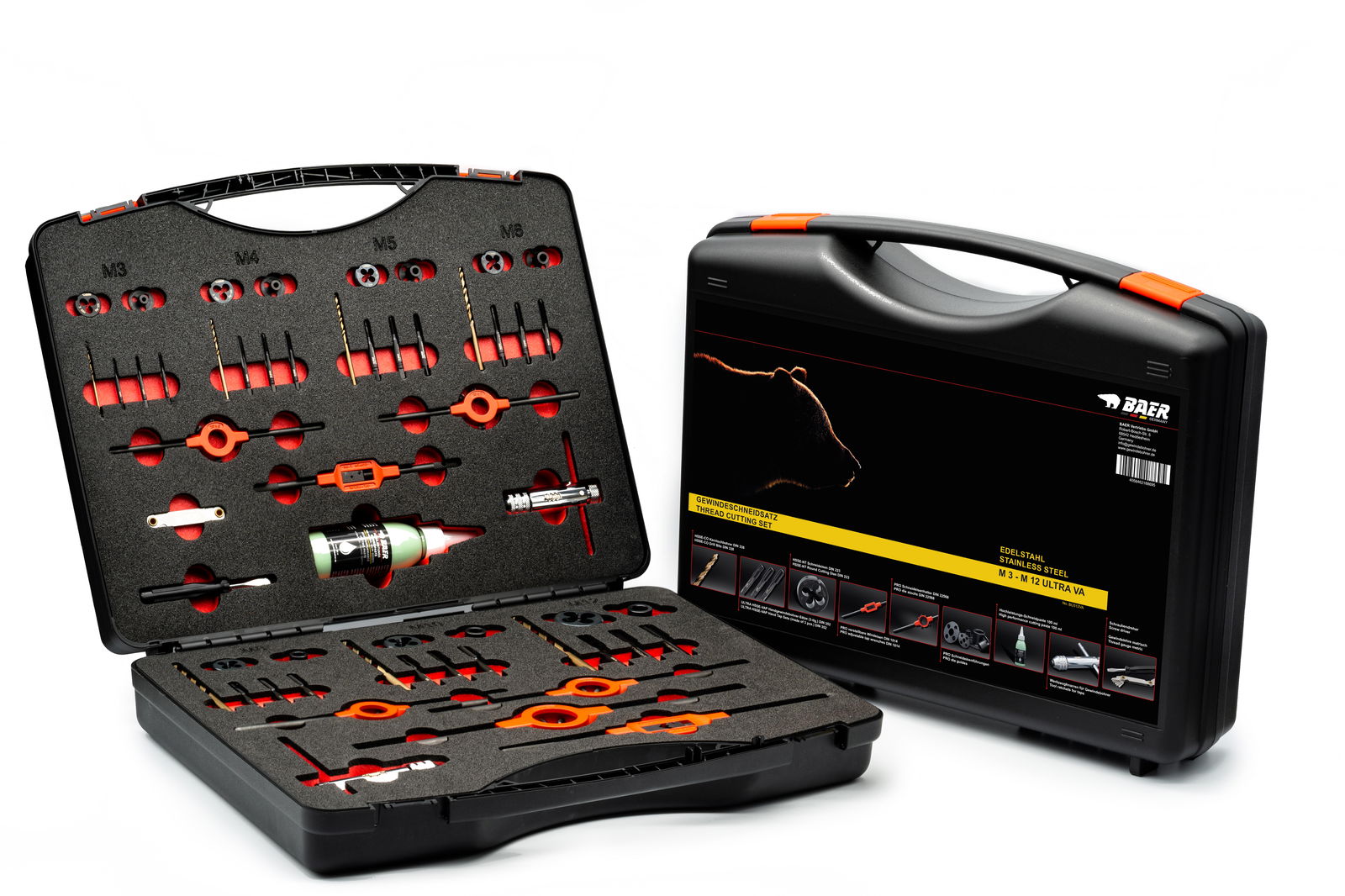

A case full of innovations and professional tools:
- The taper tap (No. 1) with guide nose of the 3-part hand tap- sets are a real special feature. They ensure that plumb threads are always cut, even in the trickiest places. Crooked thread cutting is one of the most common causes of tool breakage. With these sets, that no longer happens.
- Die guide made of turned, vaporised free-cutting steel ensure plumb thread cutting of external threads.
- Suitable cutting paste is also included in the set. It does not contain petroleum, sulphur or chlorine and is soap-water based. Lubricates excellently, but is much more ecological than competitor products.
- Instructions for use with valuable tips on thread cutting included in the kit
- Tap wrench and die holder are made of very high quality and fine zinc die casting, which makes them able to withstand more torques and are better processed than conventional holding tools. They also come in a chic red and black design.
- In a case, which does not contain any plastic, but is made in Germany from glucose, natural waxes, minerals and natural fibres and is therefore recyclable. Only the foam inserts contain plastic.
Dimensions
| Diameter |
3 - 12 |
|---|---|
| Dimension |
M 3 - 12 |
Characteristics
| Product group |
threading tool sets |
|---|---|
| Product type |
Threading tool sets |
| Thread standard |
M: Metric ISO standard thread according to DIN 13 |
| Tolerance |
ISO2/6H |
| Direction |
Right |
| Tensile strength at room temperature |
up to 1400 N/mm² | 44.5 HRC |
| Material |
HSSE VAP |
Technical information – Screw taps
Through hole and blind hole up to 2 x D
Form C straight fluted
2-3 threads
see illustration
External cooling and lubrication
HSSE VAP
up to 1400 N/mm² | 44.5 HRC
ISO2/6H
Technical information - Cutting dies
1,5
ISO-6g

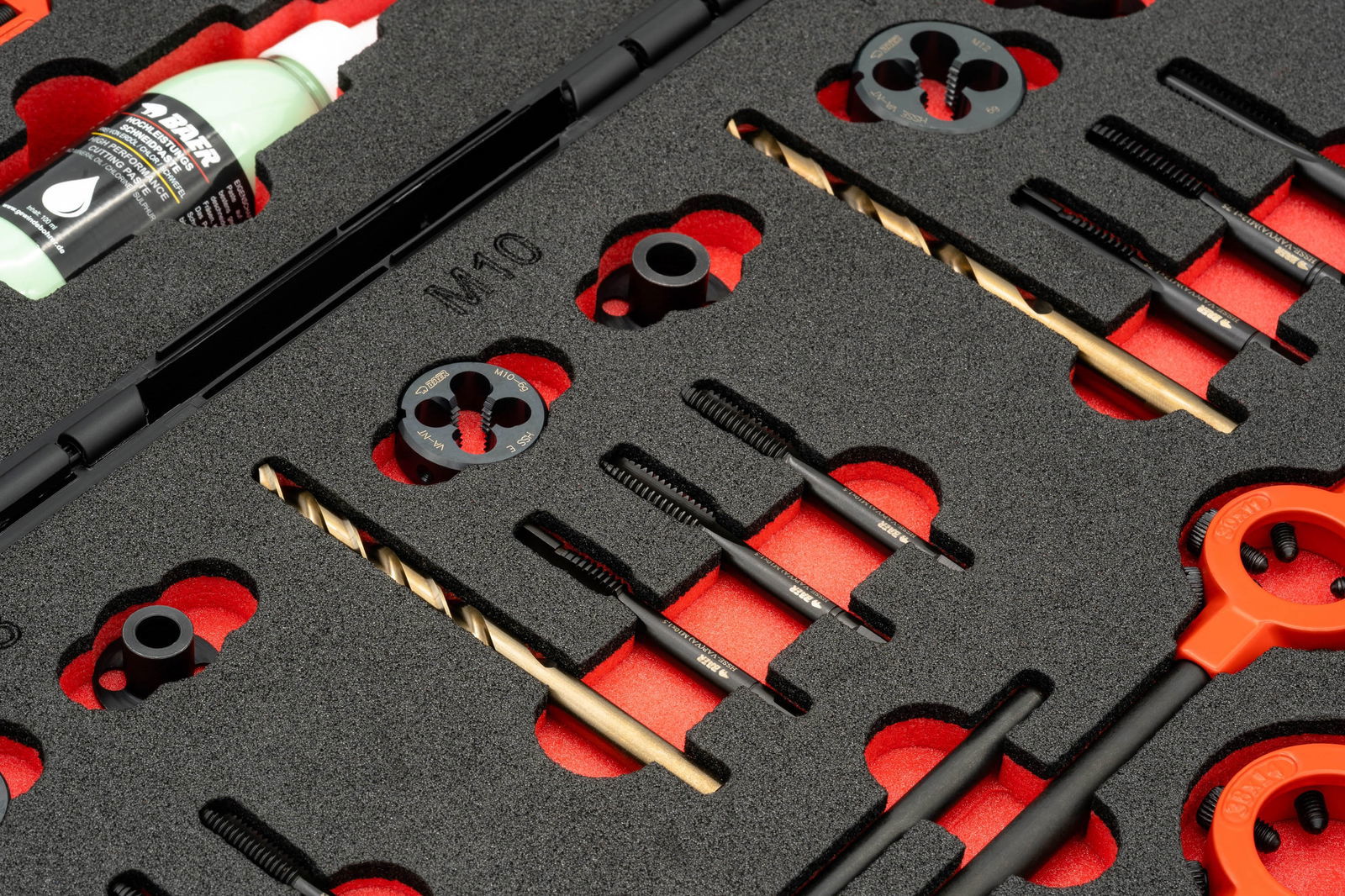

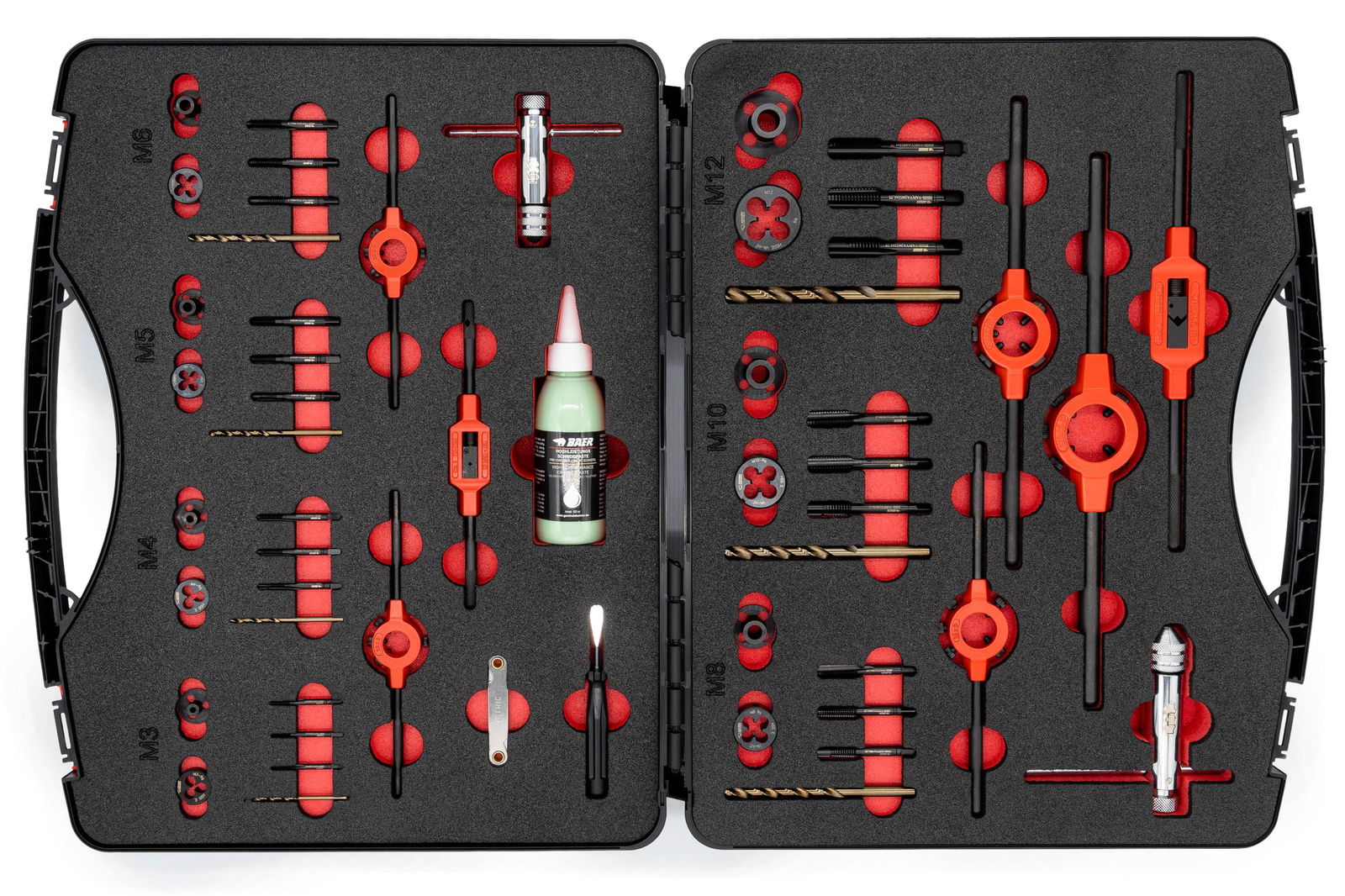

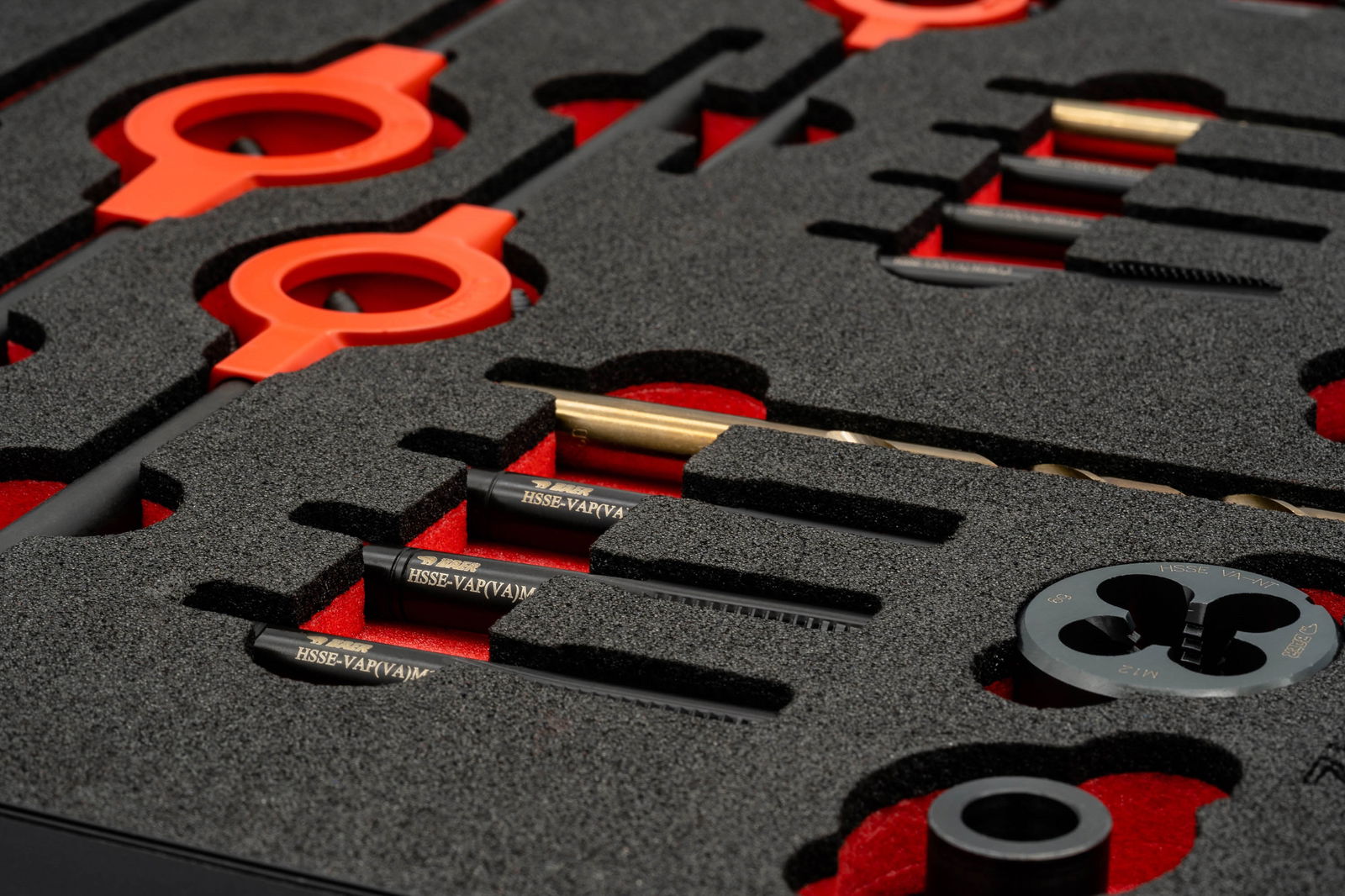

Set content
| BAER Ultra HSSE-VAP hand tap 3-piece sets (No. 1 with pilot nose) | M 3 x 0,5 | M 4 x 0,7 | M 5 x 0,8 M 6 x 1,0 | M 8 x 1,25 | M 10 x 1,5 M 12 x 1,75 |
|---|---|
| BAER HSSE-NT round cutting die | M 3 x 0,5 | M 4 x 0,7 | M 5 x 0,8 M 6 x 1,0 | M 8 x 1,25 | M 10 x 1,5 M 12 x 1,75 |
| BAER HSSE-CO core drill bits | 2,5 mm | 3,3 mm | 4,2 mm | 5,0 mm 6,8 mm | 8,5 mm | 10,2 mm |
| BAER PRO adjustable die wrench | No. 1: M 1-10 | 1/16-3/8 | G 1/8 No. 2: M 4-12 | 5/32-1/2 | G 1/8 |
| BAER PRO die holder | 20 x 5 | 20 x 7 | 25 x 9 | 30 x 11 38 x 14 |
| PRO die guides | M 3 x 0,5 | M 4 x 0,7 | M 5 x 0,8 M 6 x 1,0 | M 8 x 1,25 | M 10 x 1,5 M 12 x 1,75 |
| Lubricant | Environmentally friendly high-performance cutting paste 100 ml |
| BAER short tool holder with ratchet | M 3-10 M 5-12 |
| accessories | Screwdriver / thread gauge metric / instructions / tips for thread cutting |
Applications
- Rust / acid resistant steels
- Case-hardening steels
- Unalloyed heat-treatable steels
- Pure titanium
- Alloyed heat-treatable steels
- wear-resistant steels up to 1400 N/mm²
- high alloy steels
Further information
- M - Metric ISO thread DIN 13
- Information about tapping
- Designations, geometries and definitions on taps
- Thread tolerances of the internal thread
- Internal thread and core hole dimensions
- Tap Chamfer forms
- Surface treatments on tapping tools
- Cutting speeds, lubrication and cooling for taps
- Thread tolerances of external threads
- Bolt pre-machining diameter
For the sake of the environment - made from renewable raw materials
#Tool heroes with responsibility
We are committed to our fellow human beings and to future generations. In line with the neo-ecology megatrend, we focus our actions on the intelligent and sustainable use of resources. For us, sustainability is a value system that shows the highest respect for people and the environment. That is why we have chosen a sustainable and stable solution: the tool box made of glucose, natural waxes, minerals and natural fibres. The carbon needed for its production is extracted from the CO₂ in the atmosphere. Subsequent thermal recycling is thus CO₂-neutral, the CO₂ cycle is closed. The tool box are fully recyclable, so that valuable raw materials are retained in the material cycle.
HSSE-CO twist drill bit for core hole drilling
#You can't do without it
Almost every do-it-yourselfer has worked with them: the classic drilling tools for cordless screwdrivers, drills, impact drills or hammer drills. Decisive for the application of the drill is not only the material, but also the cutting edge geometry, the rake angle and the spiral angle, the so-called twist. These drills are particularly stable and made of high-alloy HSSE/Cobalt steel with pronounced heat resistance and extremely high runout accuracy. For drilling iron, steels, cast materials, bronzes, heat-treatable and case-hardening steels up to 1200 N/mm², as well as high-strength CrNi-based alloys and rust-, acid- and heat-resistant steels, such as V2A,V4A, INOX. The core hole drillings are essential to cut a internal thread afterwards.
HSSE-CO core drill bit DIN 338 for M 3 - M 12:
Ø 2.5 mm (M 3) | Ø 3.3 mm (M 4) | Ø 4.2 mm (M 5)| Ø 5.0 mm (M 6) | Ø 6.8 mm (M 8) | Ø 8.5 mm (M 10) | Ø 10.2 mm (M 12)

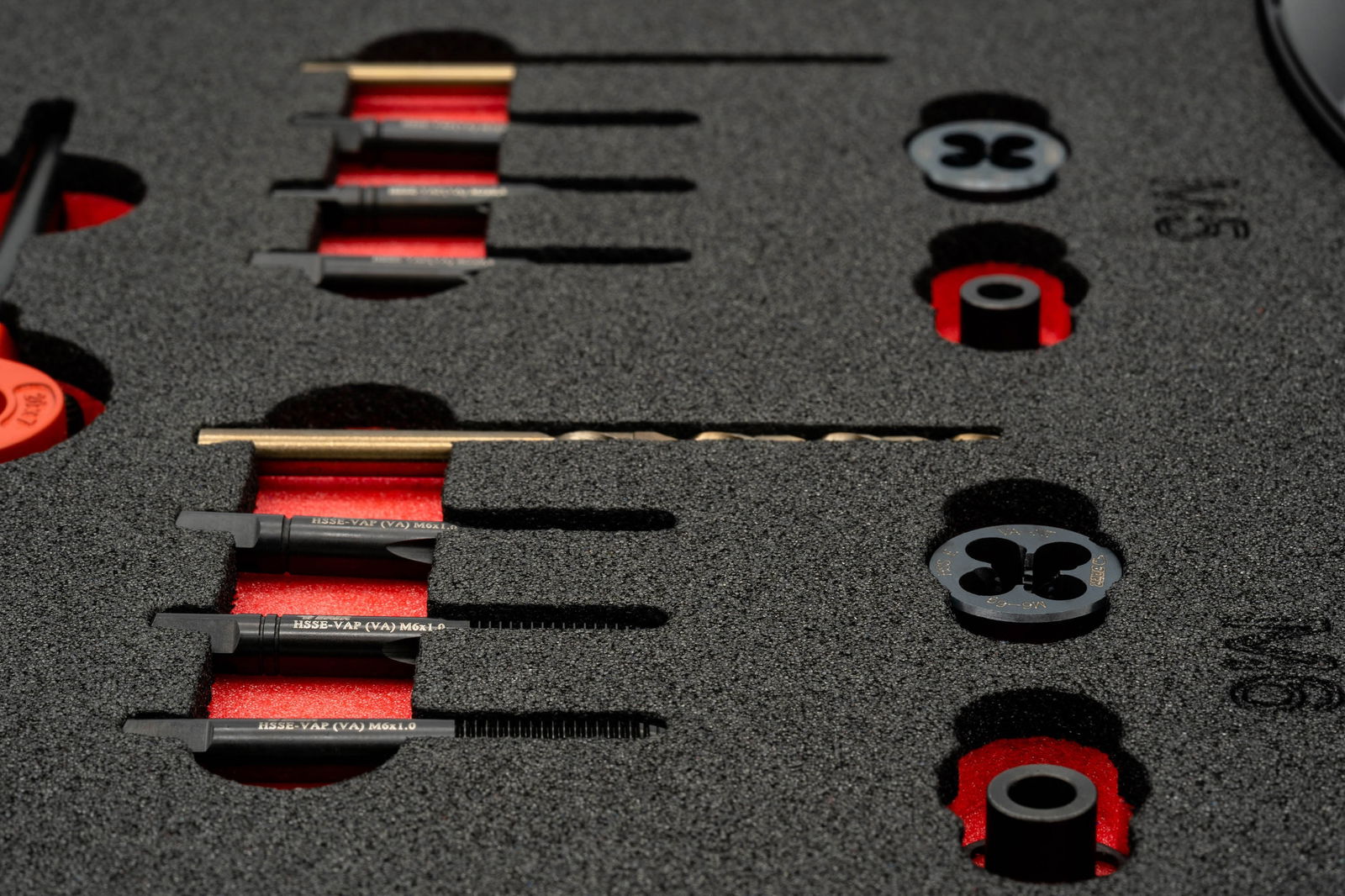

ULTRA-VA hand taps - nothing goes wrong even in stainless steel
#unbreakable
The taper tap (No. 1) with guide nose of the 3-part hand tap sets are a real speciality. They ensure that perpendicular threads are always cut, even in the trickiest places. Crooked thread cutting is one of the most common causes of tool breakage. With these sets, that no longer happens. The geometries and surface of the screw tap are designed for cutting stainless steel. The advantage of multi-part hand taps is that the respective parts of a set share the cutting power: The taper tap (No. 1) takes 65 per cent of the thread profile, the intermediate Tap (No. 2) 85 per cent and the finishing tap (No. 3) 100 per cent. This makes it easier to cut a straight and clean thread by hand.
Ultra HSSE-VAP hand tap- sets (3-piece) DIN 352 for stainless steel - taper tap (No. 1) with guide tang
M 3 x 0.5 | M 4 x 0.7 | M 5 x 0.8 | M 6 x 1.0 | M 8 x 1.25 |M 10 x 1.5 | M 12 x 1.75

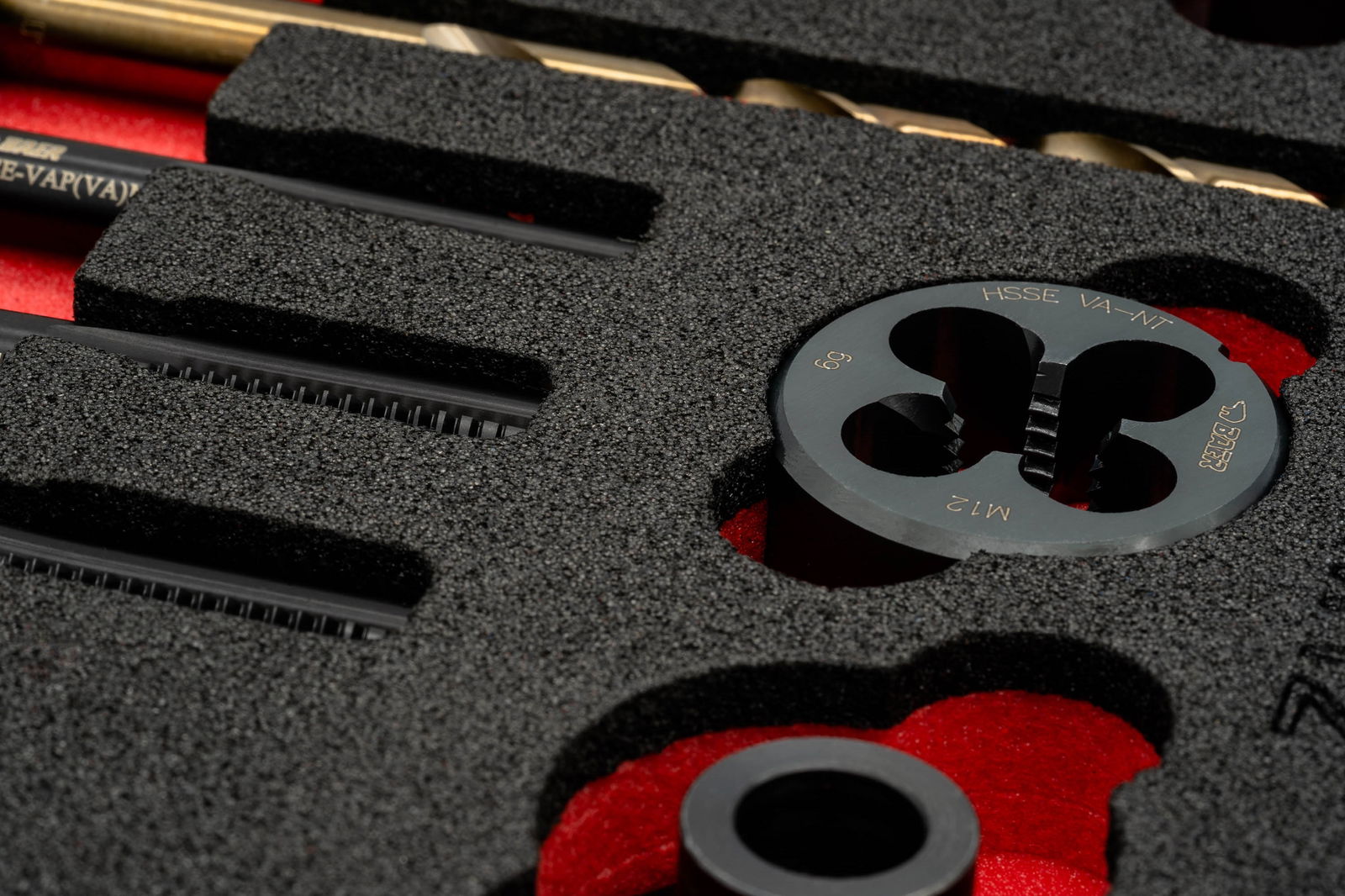

HSSE-NT dies - for perfect external threads
#runs round
These high-performance dies are made of cobalt alloyed high speed steel HSSE. The dies provide improved chip removal with their spiral point (spiral entry) and are lapped to smooth the cutting edges and reduce thread friction. The surface hardness is additionally increased by nitriding (1100-1200 HV). The geometry of this cutting tool is specially designed for machining stainless steels. The holes between the cutting edges take up the chips, roll them and carry them away. The cutting iron has outer and inner teeth. The flattened outer teeth make it easier to cut, reduce wear and thus increase the tool life time. Each tooth takes a chip of the same width with it when cutting. The inner teeth have no cutting function: in the cut part of the thread they serve as straight guides. The symmetrical design allows cutting in both axial directions.
HSSE-NT thread cutting dies DIN 223 for stainless steel
M 3 x 0.5 | M 4 x 0.7 | M 5 x 0.8 | M 6 x 1.0 | M 8 x 1.25 |M 10 x 1.5 | M 12 x 1.75

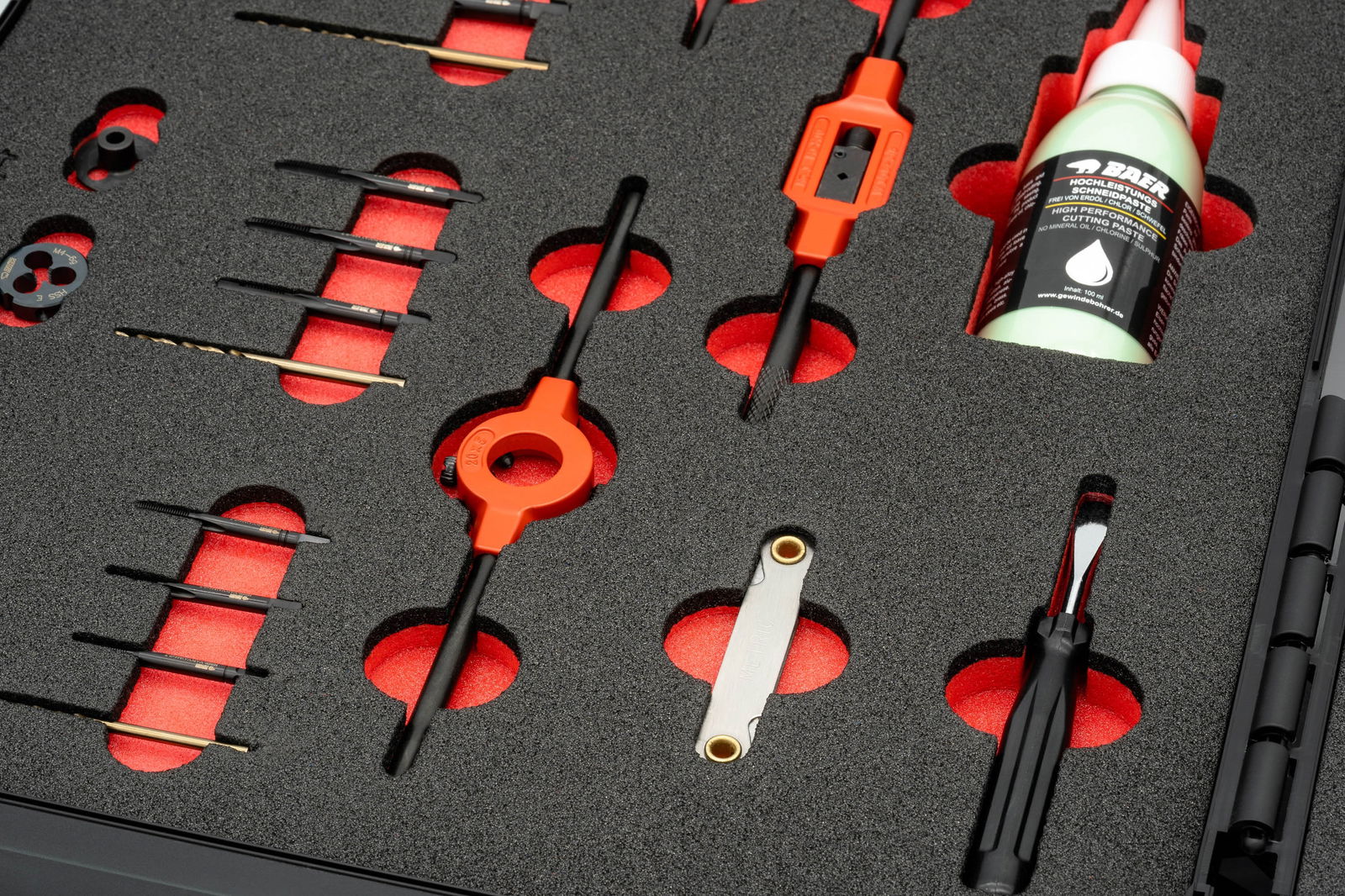

PRO adjustable tap wrench - custom-fit holding tools for screw tap
#fits like a glove
The PRO adjustable tap wrench is an actuating tool for screw tap made from a high-end zinc die casting body, with which internal thread can be cut by hand. The outstanding quality of the tap wrench is not only in the material, but also in the premium clamping jaws, the handles and the geometry, which make the tool extremely stable and very precise to use. The long levers on the right and left help to cut plumb into the hole and easily apply the required torque. Another advantage is the easy handling and the short changing times. A lever can be turned off on one side to be able to work in hard-to-reach situations.
PRO adjustable tap wrenches DIN 18140
No. 1: M 1 - M 10
No. 2: M 4 - M 12
PRO die stock with die guides - it doesn't get any better than this
#tool perfectionists
Our PRO die stocks are made of high-end zinc die casting. They have a very stable design and are therefore very resilient, wear-resistant and accurate. With screws you fix the die in a suitable holder and thus prevent it from twisting during use. In addition, the design allows the use of the included die guides. The PRO die guides are made of free-cutting steel with an oxidised surface. This makes them a better fit, more stable and more durable than ever before. They provide optimum guidance for cutting a plumb external thread. When using them, it is important that the holes in the guide overlap with the holes in the die to ensure chip removal.
PRO die stocks DIN 22568
20 x 5 mm (M 3 - M 4) | 20 x 7 mm (M 5 - M 6) | 25 x 9 mm (M 8) | 30 x 11 mm (M 10) | 38 x 14 mm (M 12)
Tool ratchets - thread cutting with ratchet
#as in no time at all
We offer you the operating tool with ratchet in proven BAER quality. To clamp the screw tap, the chuck can be easily turned open and closed. With the lever you can set the chuck to clockwise or anti-clockwise rotation. The ratchet function of the tool ratchet is particularly practical when you need to cut the thread in tight situations. Tapping is a breeze with it.
Tool ratchets with ratchet function for screw tap
No. 1: M 1 - M 10
No. 2: M 4 - M 12

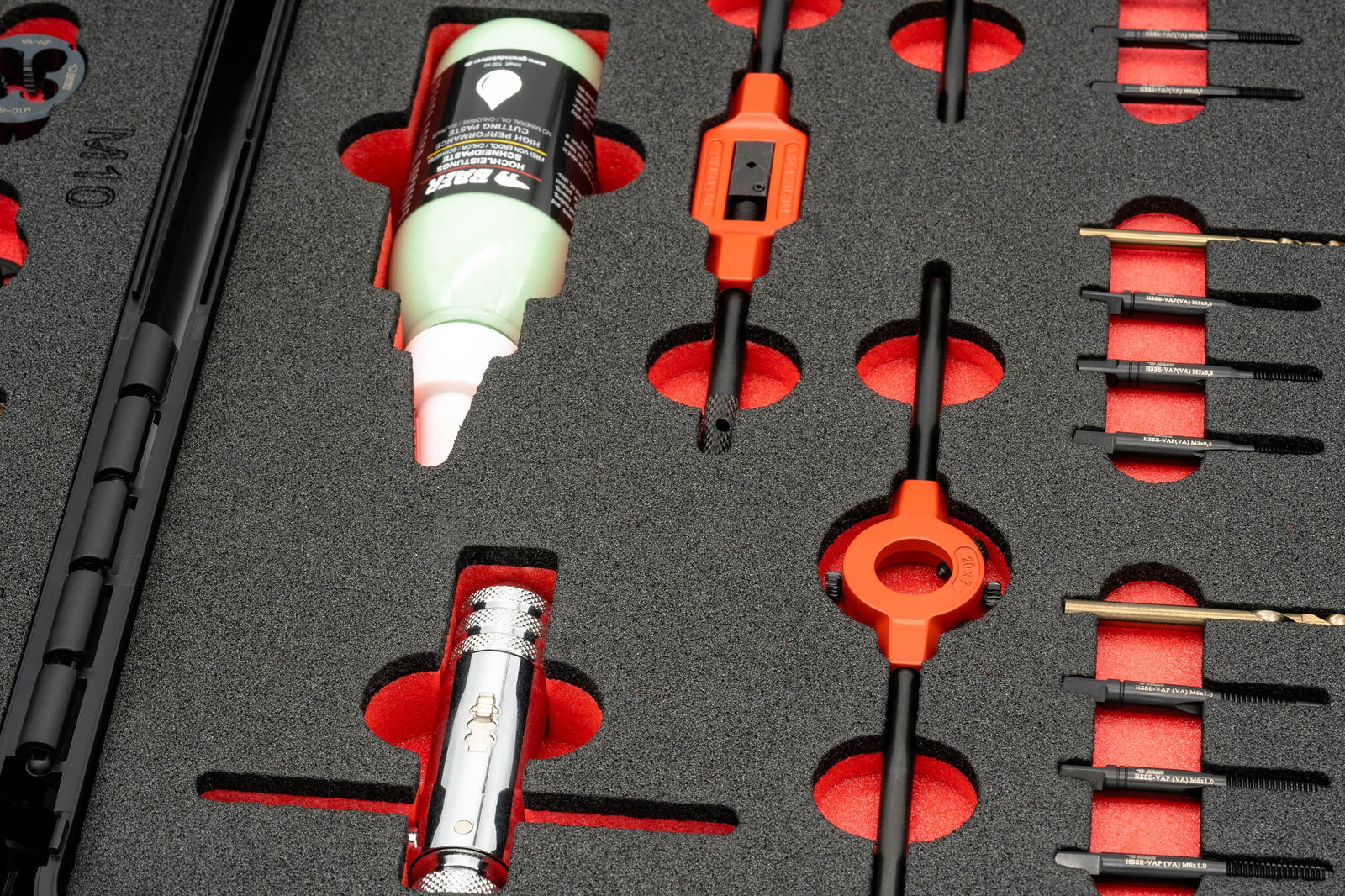

Cutting paste - for lubricating and cooling
#stay cool
Cutting pastes contribute to the cooling of drills, taps and dies. By adding a lubricant during cutting operations, you reduce the temperature, which in turn significantly extends tool life. It also reduces friction between the tool and the workpiece and thus wear and corrosion. This makes efficient and economical work possible. The BAER high-performance cutting paste with high-quality pressure additives achieves an excellent lubricating effect and is indispensable at thread cutting. The paste adheres to the cutting edges and only becomes liquid when used. As it does not contain any additives such as petroleum, chlorine or sulphur, it is extremely environmentally friendly.
High-performance cutting paste 100 ml
Accessories - like a car without a radio
#toollove
Who would want to do without valuable accessories? A tool lover certainly not. With the perfect accessories, this threading set becomes what it is: a masterpiece and all-rounder for tool lovers. If you try it once, you will never want to work with anything else again. With the thread template, you can determine the pitch of an existing external thread (e.g. a screw) and then cut a suitable internal thread with the correct screw tap. The included screwdriver can be used to tighten and loosen the screws of the die guides. Everything you need in one place, immediately to hand, clearly sorted in an environmentally friendly box.
Quality for generations
#Heirloom #Masterpiece
Are you looking for a high quality and sustainable tap set with dies and accessories? Then our BAER ULTRA tap set is exactly what you need! Our taps are made of the best material and guarantee you a precise and long-lasting cutting experience. Our threading tools are ground with the greatest care to guarantee you a perfect grinding pattern and a long service life. Convince yourself of our masterpiece. Look forward to only working with tools of the best quality and complete your workshop assortment with a set that, in the best case, can be inherited. Since all tools comply with the common DIN standards, replacement purchases or extensions to the assortment are possible at any time. We always recommend our customers to buy standard DIN tools, as this way the holding tools will also fit other taps and dies and repeat purchases will always be possible.
