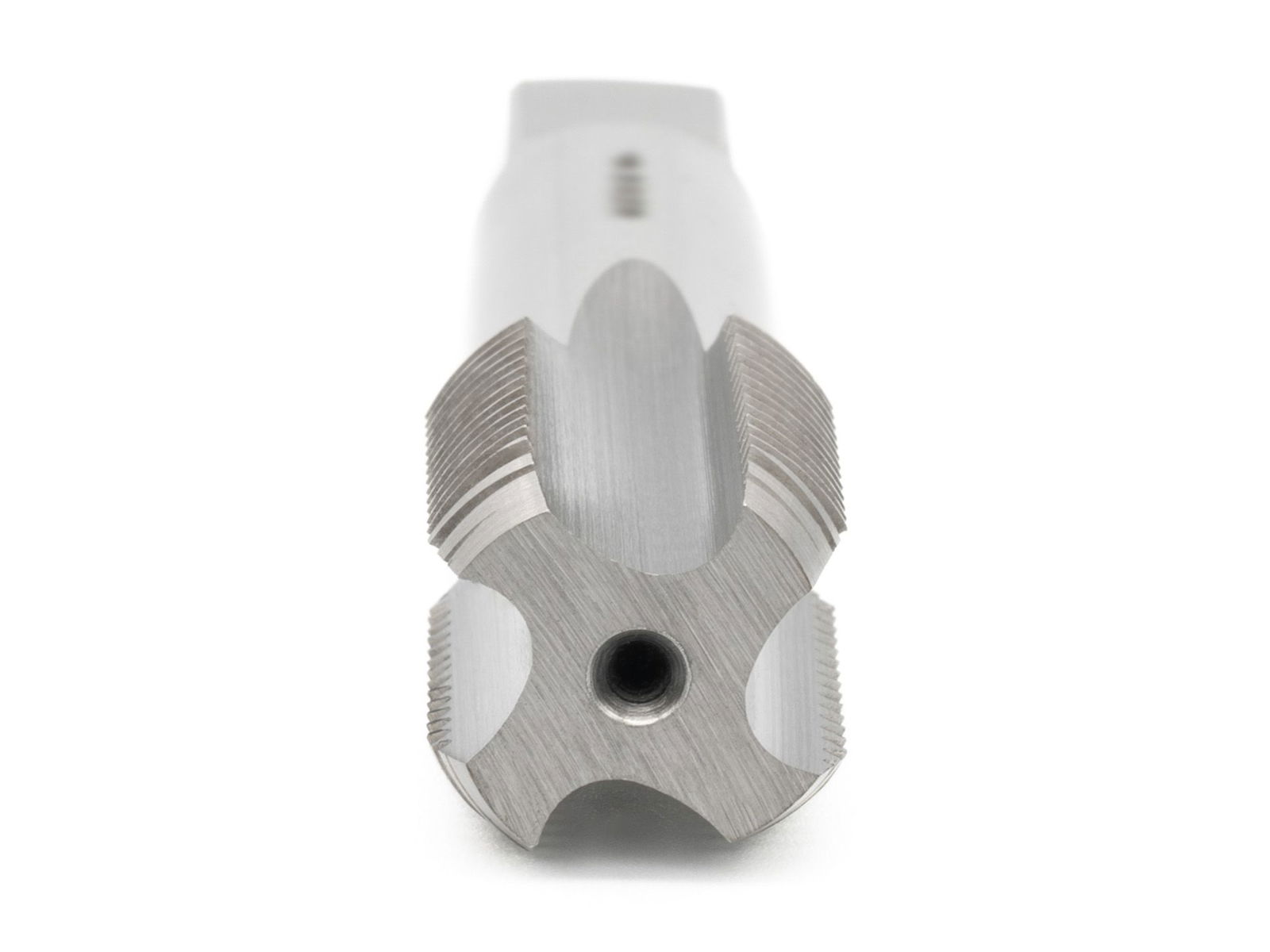

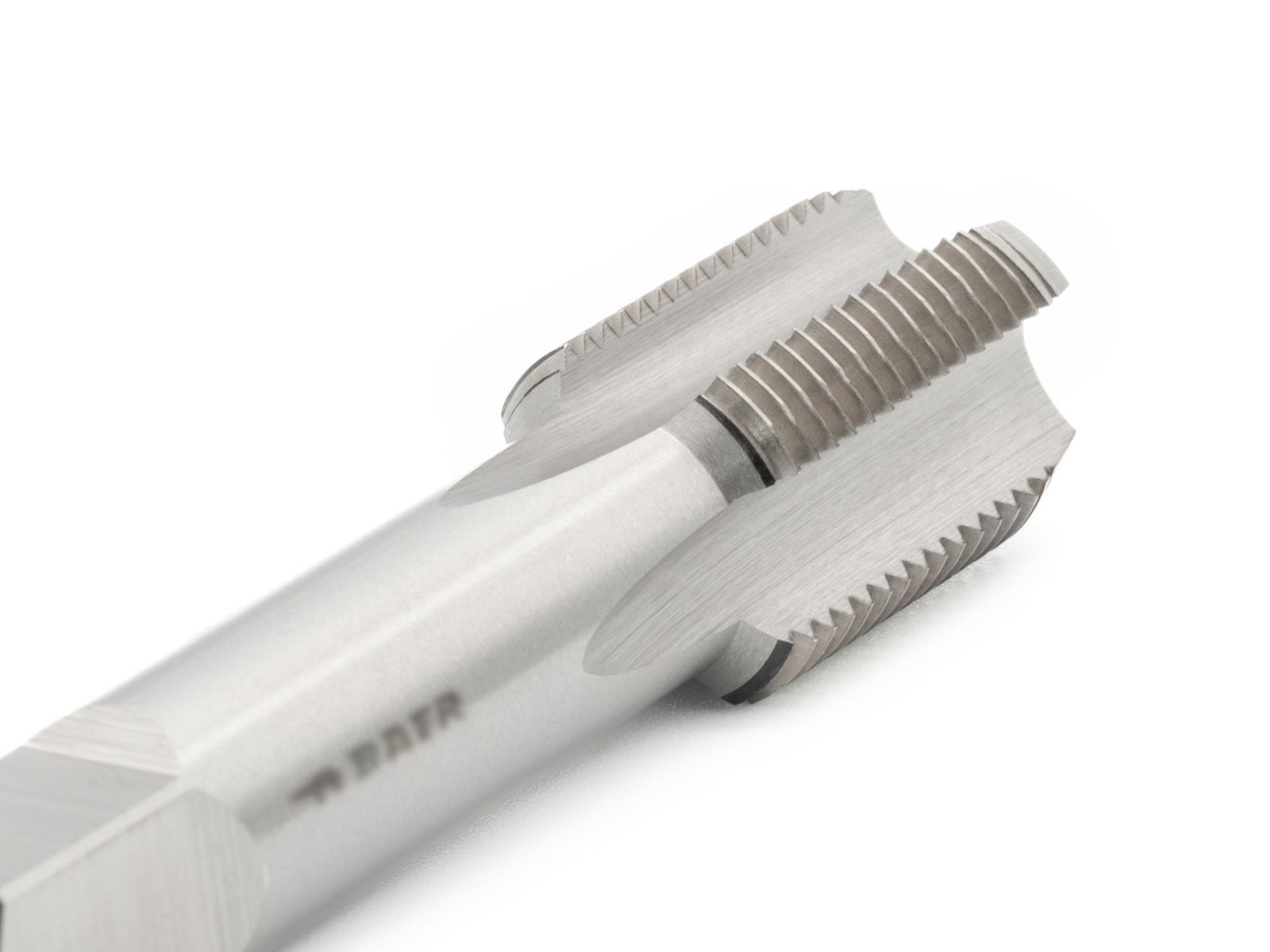

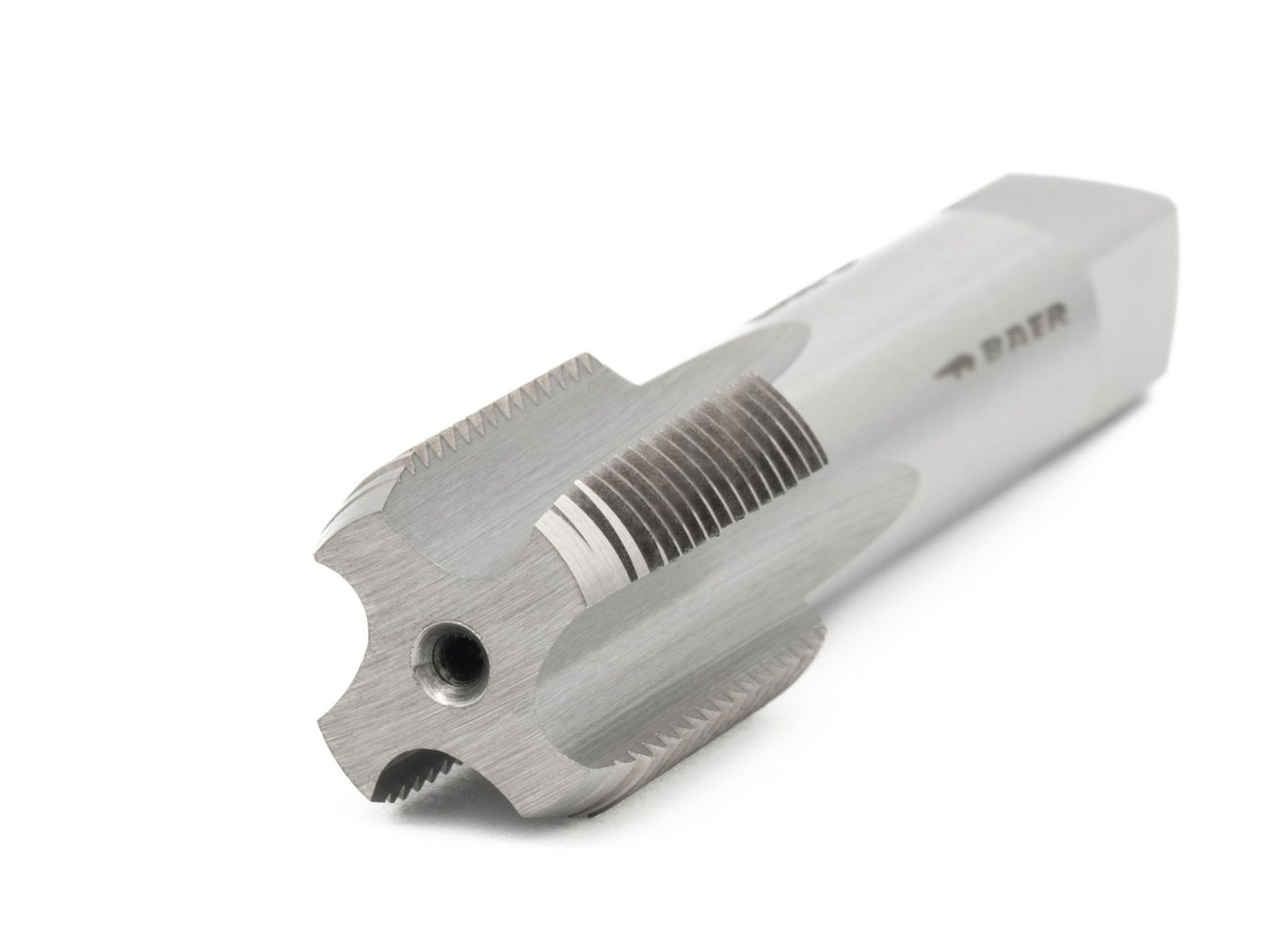

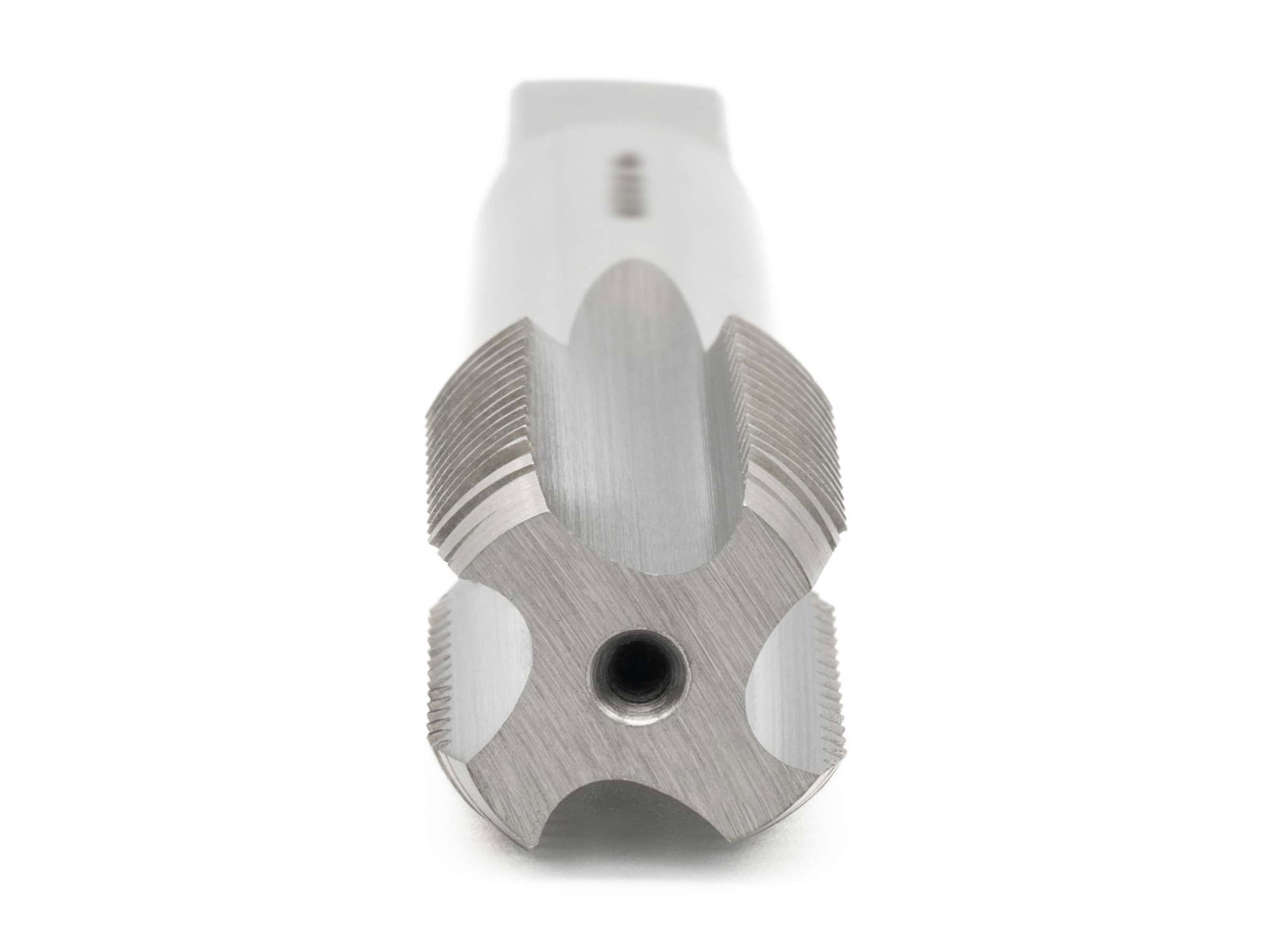

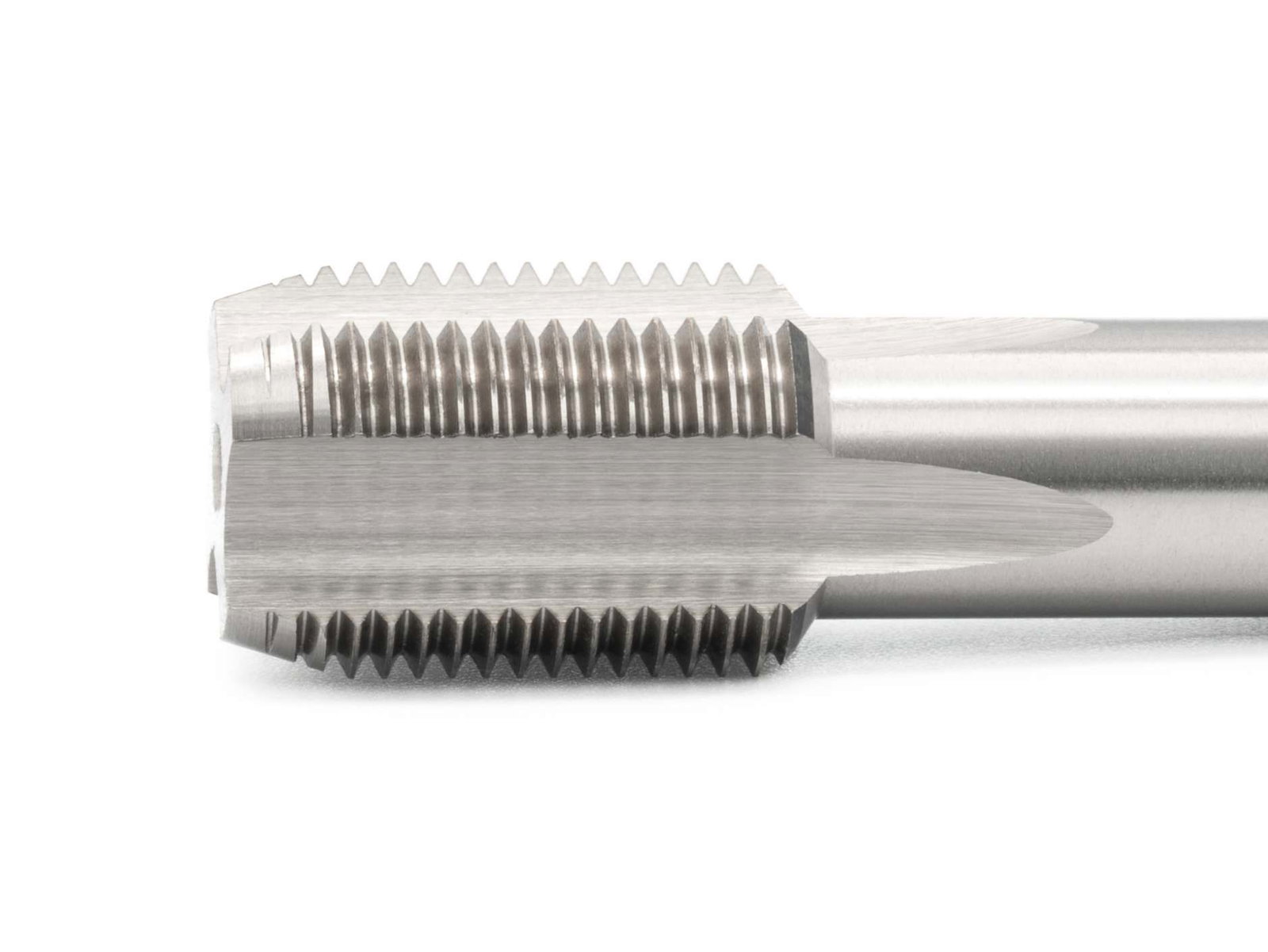

BAER HSSG Short Machine Tap Form D - G (BSP) 1/8 x 28
BAER HSSG Short Machine Tap Form D - G (BSP) 1/8 x 28
Short machine taps allow you to cut a finished thread with just one tool in one step, even by hand. Exact internal thread can be cut by hand or semi-professionally by machine to save time.
Compared to the machine tap, the short machine tap has a short shank. This allows you to cut internal thread by hand without jamming and can be operated with tap wrenches, tool ratchets or other holding tools with square drive.
The thread can be cut in a pre-drilled core hole and does not require any preparatory work by a taper tap (No. 1) or intermediate tap (No. 2).
This internal tap clearly offers the price advantage over the hand tap set, as you no longer need two or three screw taps for thread cutting, but only one screw tap. The high time saving also significantly increases the efficiency of thread cutting.
Due to the short chamfer and the straight flutes, chip is mainly absorbed by the flutes and is not removed during cutting. We recommend removing the chip from the flutes with a brush, compressed air or similar after each thread to prevent chip jamming. This chamfer form makes the screw tap reliable and universally applicable for through holes and blind holes.
Dimensions
| Diameter |
1/8 |
|---|---|
| Nominal diameter in inches |
0,383 |
| Nominal diameter in mm |
9,73 |
| Pitch |
28 |
| Pitch in mm |
0,907 |
| Dimension |
G (BSP) 1/8 x 28 |
Characteristics
| Product group |
Screw taps |
|---|---|
| Product type |
Short machine taps |
| Thread standard |
G (BSP): British Standard Pipe Thread according to DIN ISO 228 - Cylindrical pipe thread |
| Tolerance |
medium |
| Direction |
Right |
| Standard |
DIN 5157 |
| Tensile strength at room temperature |
up to 900 N/mm² | 27.1 HRC |
| Material |
HSSG bright |
8.8 mm
Through hole and blind hole up to 4 x D
Form D straight fluted
3.5-5 threads
Rarely occurs. Chips remain in flutes.
External cooling and lubrication
HSSG bright
up to 900 N/mm² | 27.1 HRC
medium
Applications
- General-purpose use
- Materials with good machinability up to 900 N/mm²
- Unalloyed and low-alloy steels
- for through hole and blind hole
- for hand and machine use
Examples of applications
- Inch thread or Whitworth thread in the sanitary sector
- G-pipe pipe thread
- Fittings, connectors, nipples, threaded fittings for water pipes, sanitary threads, water threads
- Double nipples and double pipe nipples
- Angle connection
- Pipe threaded connections
Technical drawing
| D1 |
G (BSP) 1/8 x 28 |
|---|---|
| D2 |
7 mm |
| L1 |
63 mm |
| L2 |
20 mm |
| Diameter |
1/8 |
| Square |
5,5 mm |
Application – Sample materials for taps
| Unalloyed construction steels | |
|---|---|
| 1.0035 | S185 (St33) |
| 1.0036 | S235JRH |
| 1.0038 | RSt37-2 |
| 1.0039 | S235JRG1+CR |
| 1.0044 | St44-2 |
| 1.0060 | E335 (St60-2) |
| 1.0116 | St37-3 |
| 1.0570 | St 52-3 |
| Alloyed construction steels | |
|---|---|
| 1.5415 | 15Mo3 |
| 1.5423 | 16Mo5 |
| 1.5622 | 14Ni6 |
| 1.7335 | 13CrMo44 |
| 1.7337 | 16CrMo44 |
| 1.7715 | 14MoV63 |
| Free-cutting steels | |
|---|---|
| 1.0711 | 9S20 |
| 1.0715 | 9SMn28 |
| 1.0718 | 11SMnPb30 |
| 1.0721 | 10S20 |
| 1.0723 | 15S20 |
| 1.0726 | 35S20 |
| 1.0737 | 9SMnPb36 |
| 1.0758 | 60SPb20 |
| Case-hardening steels | |
|---|---|
| 1.0401 | (C15) |
| 1.7016 | 17CR3 |
| 1.7131 | 16MnCr5 |
| 1.5919 | 15CrNi6 |
| Quenched and tempered steels unalloyed | |
|---|---|
| 1.0402 | C 22 |
| 1.1151 | C22E (Ck22) |
| 1.0503 | C 45 |
| 1.1191 | C45E (Ck45) |
| Cast steel | |
|---|---|
| 1.0420 | GS-38 |
| 1.5419 | GS-22 Mo 4 |
| 1.6750 | GS-20 NiCrMo3 7 |
| 1.7357 | GS-17 CrMo 5 5 |
| Malleable cast iron | |
|---|---|
| 0.8145 | EN-GJMB 450-6 |
| 0.8170 | EN-GJMB 700-2 |
| 0.8045 | EN-GJMW-450-7 |
| 0.8055 | EN-GJMW-550-4 |
| Pure copper low-alloyed | |
|---|---|
| 2.0240 | CuZn15 |
| 2.0265 | CuZn30 |
| Brass short-chipping | |
|---|---|
| 2.0401 | CuZn39Pb3 |
| Brass long-chipping | |
|---|---|
| 2.0321 | CuZn37 |
| 2.0335 | CuZn36 |
| 2.0360 | CuZn40 |
| Aluminum cast Si > 5-12 % | |
|---|---|
| 3.2161 | G-AlSi8Cu3 |
| 3.2163 | G-AlSi9Cu3 |
| 3.2381 | G-AlSi10Mg |
| 3.2583 | G-AlSi12(Cu) |
| Lamellar graphite cast iron | |
|---|---|
| 0.6010 | EN-GJL 100 (GG-10) |
| 0.6020 | EN-GJL 200 (GG -20) |
| 0.6025 | EN-GJL 250 (GG-25) |
| 0.6030 | EN-GJL 300 (GG -30) |
| Copper-tin alloy (bronze) short-chipping | |
|---|---|
| 2.1090.01 | G-CuSn7ZnPb |
| 2.1086.01 | G-CuSn10Zn |
| 2.1097 | G-CuSn5ZnPb |
| Pure copper, low-alloyed copper | |
|---|---|
| 2.0240 | CuZn15 |
| 2.0265 | CuZn30 |
