BaerCoil HSSE Machine Tap M 5 x 0.8 STI (oversized for wire thread inserts) - ECO for blind holes
BaerCoil® machine taps are mainly used for thread repair or thread reinforcement in connection with wire thread inserts. With this BaerCoil® screw tap a finished thread with oversize can be cut in one operation as a holding thread for wire thread inserts of the dimension M 5 x 0.8.
The holding thread for M 5 x 0.8 thread inserts is also called STI thread (screw thread insert) or STI thread (in English Screw Thread Insert) and has an oversize so that the normal initial thread M 5 x 0.8 is restored after installation of the thread insert.
Our machine taps are powerful and reliable taps for efficient machining of threads in one operation on the machine. Machine taps are used primarily in industrial manufacturing. They are suitable for CNC machines, thread cutting machines, cordless drills and pneumatic thread cutting machines, among others. As they are characterised by high efficiency and low production costs, they are often used in series production. The thread is cut by machine in one operation.
The machine tap can be used for blind holes, as the short gate and the swirl groove shape ensure that the chips are discharged to the rear
Dimensions
| Diameter |
5 |
|---|---|
| Nominal diameter in inches |
0,236 |
| Nominal diameter in mm |
6 |
| Pitch |
0,8 |
| Pitch in mm |
0,8 |
| Dimension |
M 5 x 0,8 EG/STI |
| Square |
6,4 mm |
Characteristics
| Product group |
Screw taps Wire thread inserts - Taps |
|---|---|
| Product type |
BaerCoil screw taps |
| Thread standard |
M EG/STI: Metric ISO standard thread for wire thread inserts according to DIN 8140-2 |
| Tolerance |
ISO2/6H mod. (ISO1/4H) |
| Direction |
Right |
| Standard |
Factory standard |
| Tensile strength at room temperature |
up to 900 N/mm² | 27.1 HRC |
| Material |
HSSE bright |
5.3 mm
Blind hole up to 3 x D
Form C 35° RSP
2-3 threads
Chips are removed upwards against the cutting direction
External cooling and lubrication
HSSE bright
up to 900 N/mm² | 27.1 HRC
ISO2/6H mod. (ISO1/4H)
Applications
All normal uses for thread repair and for thread reinforcement of blind hole threads.

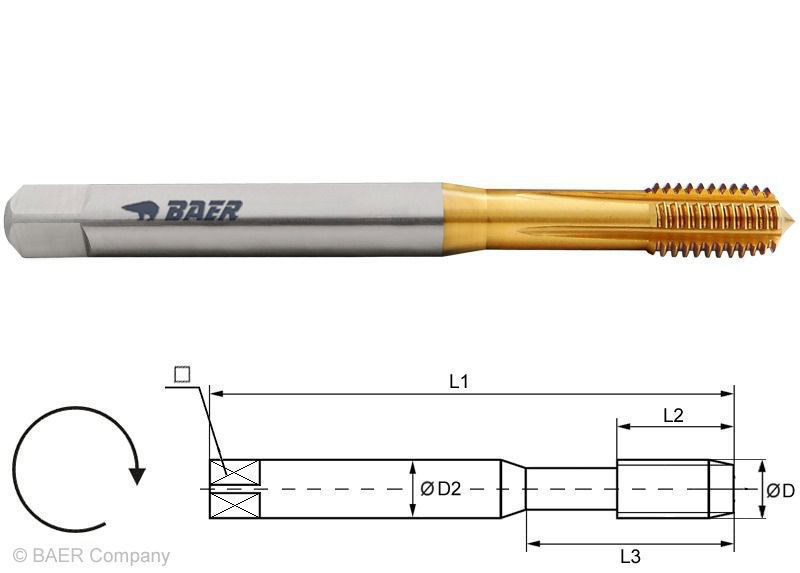

Technical drawing
| D1 |
6 mm |
|---|---|
| D2 |
6,4 mm |
| L1 |
66 mm |
| L2 |
26 mm |
| Diameter |
5 |
| Square |
6,4 mm |
Application – Sample materials for taps
| Unalloyed construction steels | Cutting speed vc in m/min | |
|---|---|---|
| 1.0037 | St 37-2 | 5 - 12 |
| 1.0044 | St 44-2 | 5 - 12 |
| 1.0039 | S 235JRG1+CR | 5 - 12 |
| 1.0060 | St 60-2 | 5 - 10 |
| Free-cutting steels | Cutting speed vc in m/min | |
|---|---|---|
| 1.0718 | 9 SMnPb 28 | 5 - 12 |
| 1.0721 | 10 S 20 | 5 - 12 |
| 1.0736 | 9 SMn 36 | 5 - 12 |
| 1.0726 | 35 S 20 | 5 - 10 |
| Cast steel | Cutting speed vc in m/min | |
|---|---|---|
| 1.0420 | GS-38 | 8 - 15 |
| 1.1120 | GS-20 Mn 5 | 5 - 15 |
| 1.5633 | GS-24 Ni 8 | 5 - 12 |
| 1.7379 | GS-18 CrMo 9 10 | 5 - 12 |
| Alloyed construction steels | Cutting speed vc in m/min | |
|---|---|---|
| 1.5415 | 15 Mo 3 | 5 - 12 |
| 1.5622 | 14 Ni 6 | 5 - 10 |
| 1.7335 | 13 CrMo 4 4 | 5 - 10 |
| 1.7715 | 14 MoV 6 3 | 5 - 10 |
Cutting speed vc [m/min] = (Outer diameter * π * speed) / 1000
Rotation speed n [1/min] = (Cutting speed in m/min * 1000) / (Outer diameter * π)
Feedrate programming [mm/min] = speed * pitch
Please note that the above cutting speeds are indicative and must be adjusted depending on lubrication and actuation.
