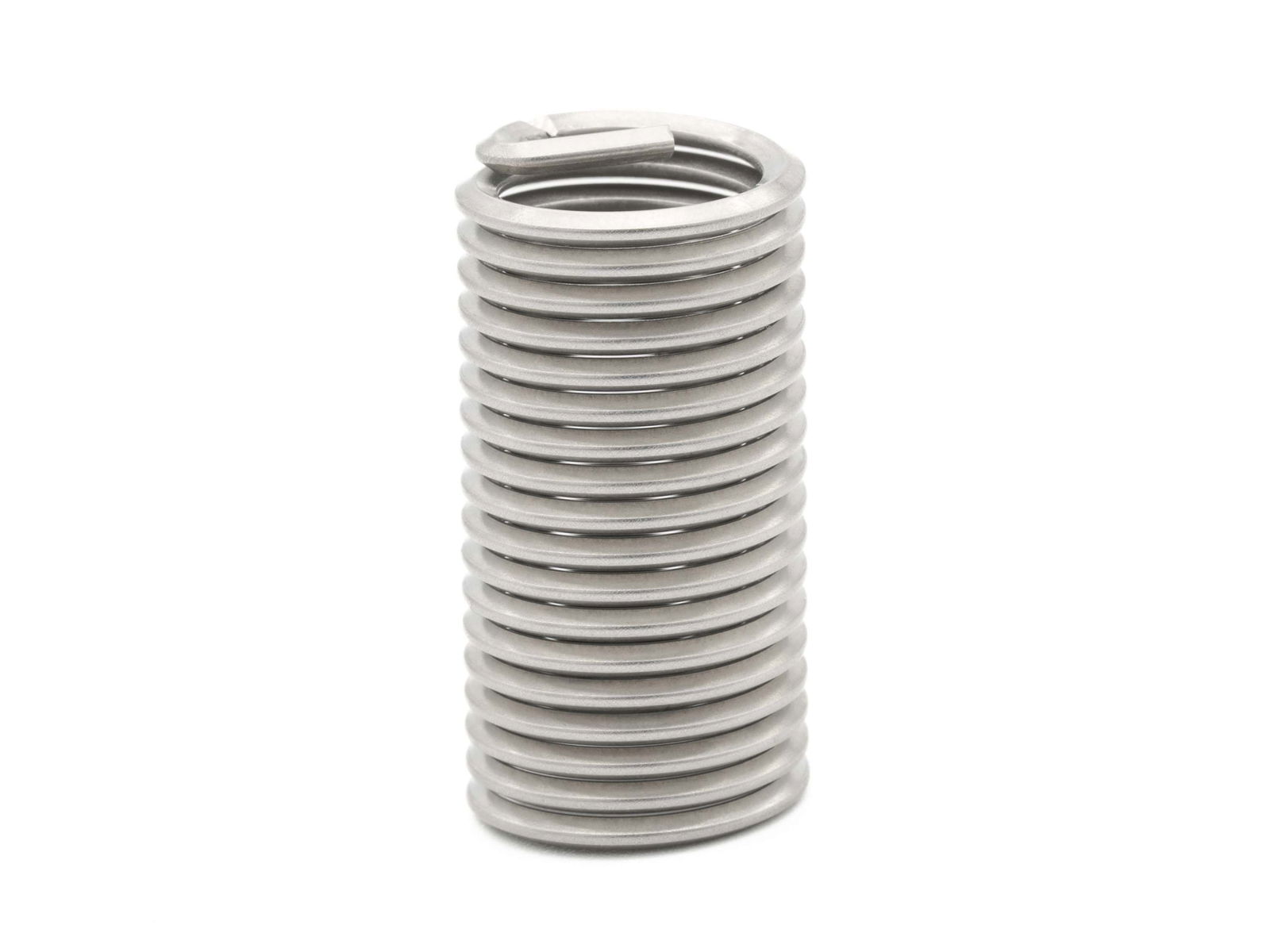

BaerCoil Wire Thread Inserts BSW 3/4 x 10 - 3.0 D (57.15 mm) - free running - 25 pcs.
BaerCoil Wire Thread Inserts BSW 3/4 x 10 - 3.0 D (57.15 mm) - free running - 25 pcs.
BaerCoil® thread inserts are the best solution for all your repair needs! With them you can create long-lasting and powerful connections. These inserts also ensure that you have no waste and recycle everything. The inserts are precise and wear resistant - your screw will stay firmly in place without the thread insert slipping.
The BaerCoil® thread insert is the perfect solution for damaged threads while maintaining the same nominal diameter. With BaerCoil® thread inserts, the manufactured thread is significantly stronger than the original thread.
BaerCoil® thread inserts ensure optimum power transmission from the bolt to the nut thread, even in lightweight constructions. Today, they are already an important component in aviation and vehicle construction.
BaerCoil® thread inserts can be shortened according to the required length with a side cutter or similar.
Dimensions
| Diameter |
3/4 |
|---|---|
| Pitch |
10 |
| Dimension |
BSW 3/4 x 10 |
| Length |
3,0 D |
| T (Length when installed) |
57,15 mm |
| Thread length calculation |
3.0 D means 3 times the diameter: 3 times 19.05 mm=57.15 mm The nominal diameter at BSW 3/4 is approx. 19.05 mm |
Characteristics
| Product group |
Wire thread inserts |
|---|---|
| Product type |
BaerCoil wire thread inserts |
| Thread standard |
BSW: British Whitworth standard thread according to BS 84 |
| Direction |
Right |
| Type |
free running |
| Tensile strength at room temperature |
>1400 N/mm² |
| Material |
Stainless Steel V2A (AISI 304, X5CrNi18-10, Material No.: 1.4301) |
| Temperature resistance |
315°C long-term 425°C short-term |
Applications
All normal uses for thread repair and thread reinforcement
Technical drawing
| Diameter |
3/4 |
|---|---|
| Length |
3,0 D |
| T (Length when installed) |
57,15 mm |
| F (Min. - Max. outside diameter of thread insert) |
0,868 '' - 0,905 '' |
| P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
| B (thread depth with chamfer) |
2,606 '' |
| D (minimum depth of the core hole, without tip) |
2,700 '' |
