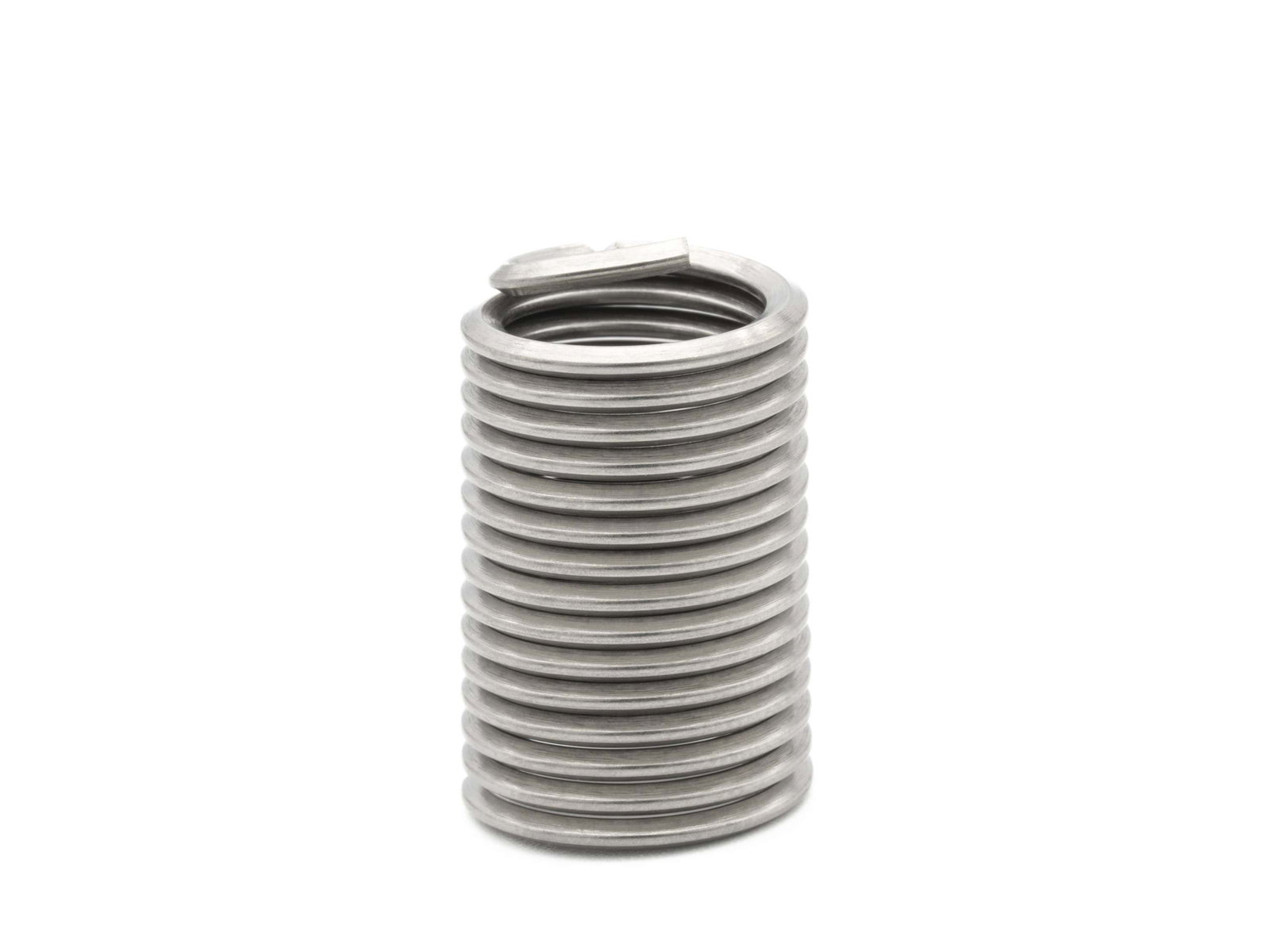

BaerCoil Wire Thread Inserts BSW 5/8 x 11 - 2.5 D (39.69 mm) - free running - 50 pcs.
BaerCoil Wire Thread Inserts BSW 5/8 x 11 - 2.5 D (39.69 mm) - free running - 50 pcs.
BaerCoil® thread inserts are the best solution for all your repair needs! With them you can create long-lasting and powerful connections. These inserts also ensure that you have no waste and recycle everything. The inserts are precise and wear resistant - your screw will stay firmly in place without the thread insert slipping.
The BaerCoil® thread insert is the perfect solution for damaged threads while maintaining the same nominal diameter. With BaerCoil® thread inserts, the manufactured thread is significantly stronger than the original thread.
BaerCoil® thread inserts are sophisticated design elements that ensure optimum power transmission from the bolt to the nut thread. They compensate for pitch and angular errors and thus distribute static and dynamic work loads evenly over all thread turns. This is particularly important in lightweight constructions where the carrier material is to be reduced. BaerCoil® thread inserts make it possible to use smaller and shorter screw connections. They are already an important component in the aerospace and automotive industries.
BaerCoil® thread inserts can be shortened, according to the required length, with a side cutter or similar.
Dimensions
| Diameter |
5/8 |
|---|---|
| Pitch |
11 |
| Dimension |
BSW 5/8 x 11 |
| Length |
2,5 D |
| T (Length when installed) |
39,69 mm |
| Thread length calculation |
2.5 D means 2.5 times the diameter: 2.5 times 15.88 mm=39.69 mm The nominal diameter at BSW 5/8 is approx. 15.88 mm |
Characteristics
| Product group |
Wire thread inserts |
|---|---|
| Product type |
BaerCoil wire thread inserts |
| Thread standard |
BSW: British Whitworth standard thread according to BS 84 |
| Direction |
Right |
| Type |
free running |
| Tensile strength at room temperature |
>1400 N/mm² |
| Material |
Stainless Steel V2A (AISI 304, X5CrNi18-10, Material No.: 1.4301) |
| Temperature resistance |
315°C long-term 425°C short-term |
Applications
All normal uses for thread repair and thread reinforcement
Technical drawing
| Diameter |
5/8 |
|---|---|
| Length |
2,5 D |
| T (Length when installed) |
39,69 mm |
| F (Min. - Max. outside diameter of thread insert) |
0,732 '' - 0,767 '' |
| P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
| B (thread depth with chamfer) |
1,881 '' |
| D (minimum depth of the core hole, without tip) |
1,972 '' |
