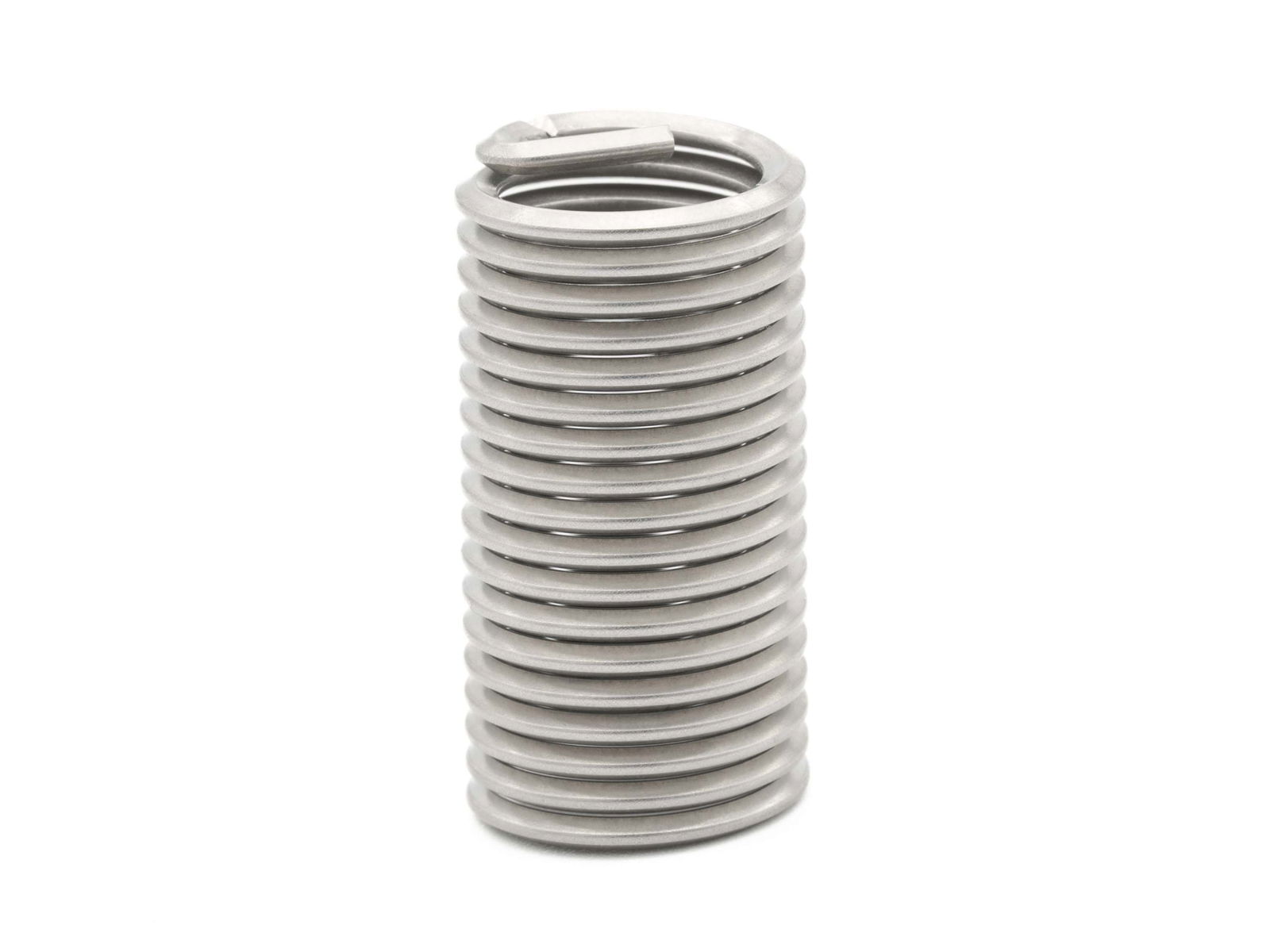

BaerCoil Wire Thread Inserts BSW 5/8 x 11 - 3.0 D (47.63 mm) - free running - 50 pcs.
BaerCoil Wire Thread Inserts BSW 5/8 x 11 - 3.0 D (47.63 mm) - free running - 50 pcs.
BaerCoil® thread inserts are the best solution for all your repair needs! With them you can create long-lasting and powerful connections. These inserts also ensure that you have no waste and recycle everything. The inserts are precise and wear resistant - your screw will stay firmly in place without the thread insert slipping.
The BaerCoil® thread insert is the perfect solution for damaged threads while maintaining the same nominal diameter. With BaerCoil® thread inserts, the manufactured thread is significantly stronger than the original thread.
BaerCoil® thread inserts are indispensable for optimal power transmission in lightweight constructions. They ensure that both static and dynamic work loads are distributed in a balanced manner to the individual thread turns. Also, the flexibility of the thread inserts compensates for any pitch and angle errors. BaerCoil® thread inserts not only save time and money, but are also much lighter and more compact than conventional screw connections.
BaerCoil® thread inserts can be shortened, according to the required length, with a side cutter or similar.
Dimensions
| Diameter |
5/8 |
|---|---|
| Pitch |
11 |
| Dimension |
BSW 5/8 x 11 |
| Length |
3,0 D |
| T (Length when installed) |
47,63 mm |
| Thread length calculation |
3.0 D means 3 times the diameter: 3 times 15.88 mm=47.63 mm The nominal diameter at BSW 5/8 is approx. 15.88 mm |
Characteristics
| Product group |
Wire thread inserts |
|---|---|
| Product type |
BaerCoil wire thread inserts |
| Thread standard |
BSW: British Whitworth standard thread according to BS 84 |
| Direction |
Right |
| Type |
free running |
| Tensile strength at room temperature |
>1400 N/mm² |
| Material |
Stainless Steel V2A (AISI 304, X5CrNi18-10, Material No.: 1.4301) |
| Temperature resistance |
315°C long-term 425°C short-term |
Applications
All normal uses for thread repair and thread reinforcement
Technical drawing
| Diameter |
5/8 |
|---|---|
| Length |
3,0 D |
| T (Length when installed) |
47,63 mm |
| F (Min. - Max. outside diameter of thread insert) |
0,732 '' - 0,767 '' |
| P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
| B (thread depth with chamfer) |
2,193 '' |
| D (minimum depth of the core hole, without tip) |
2,234 '' |
