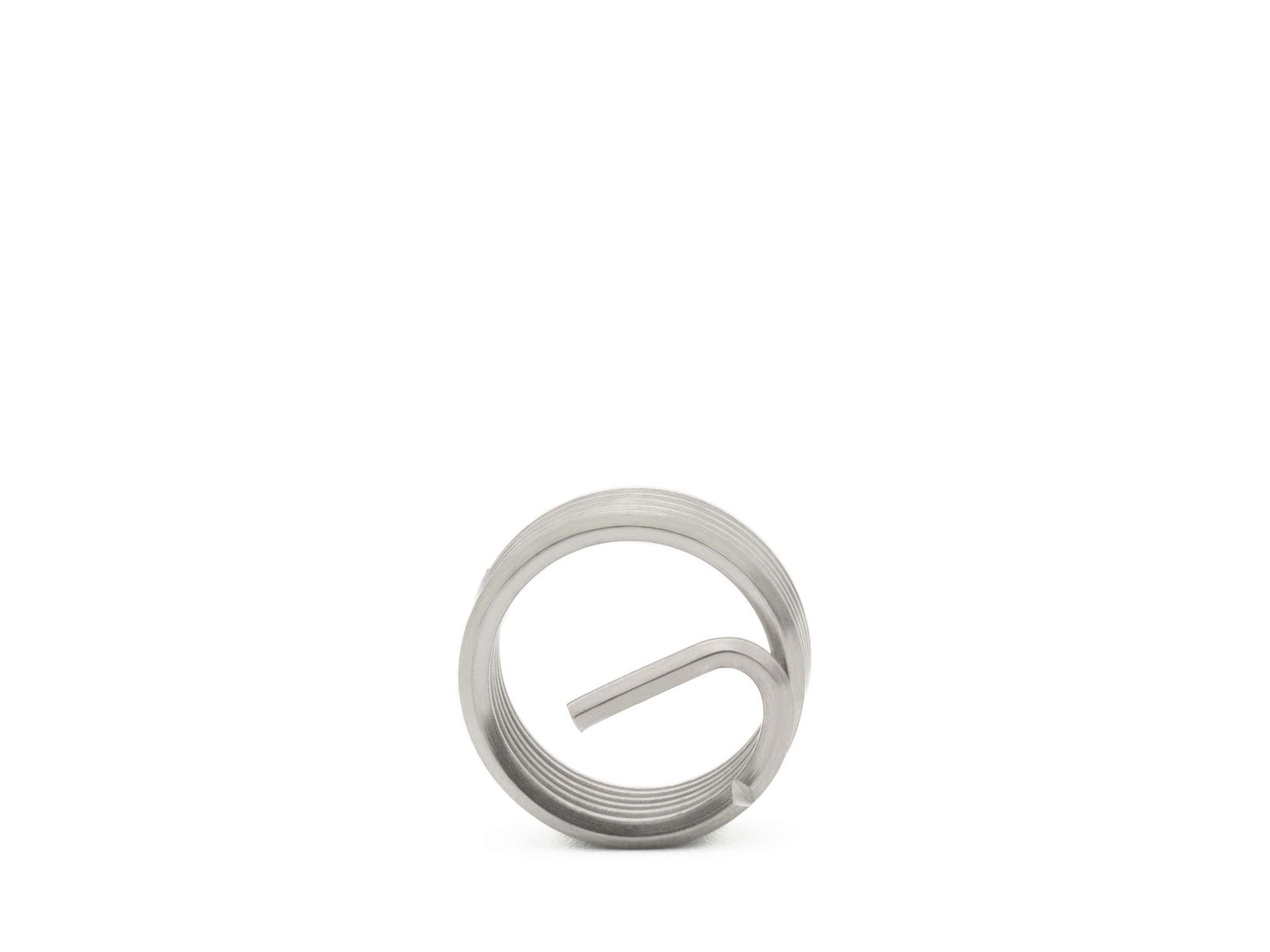

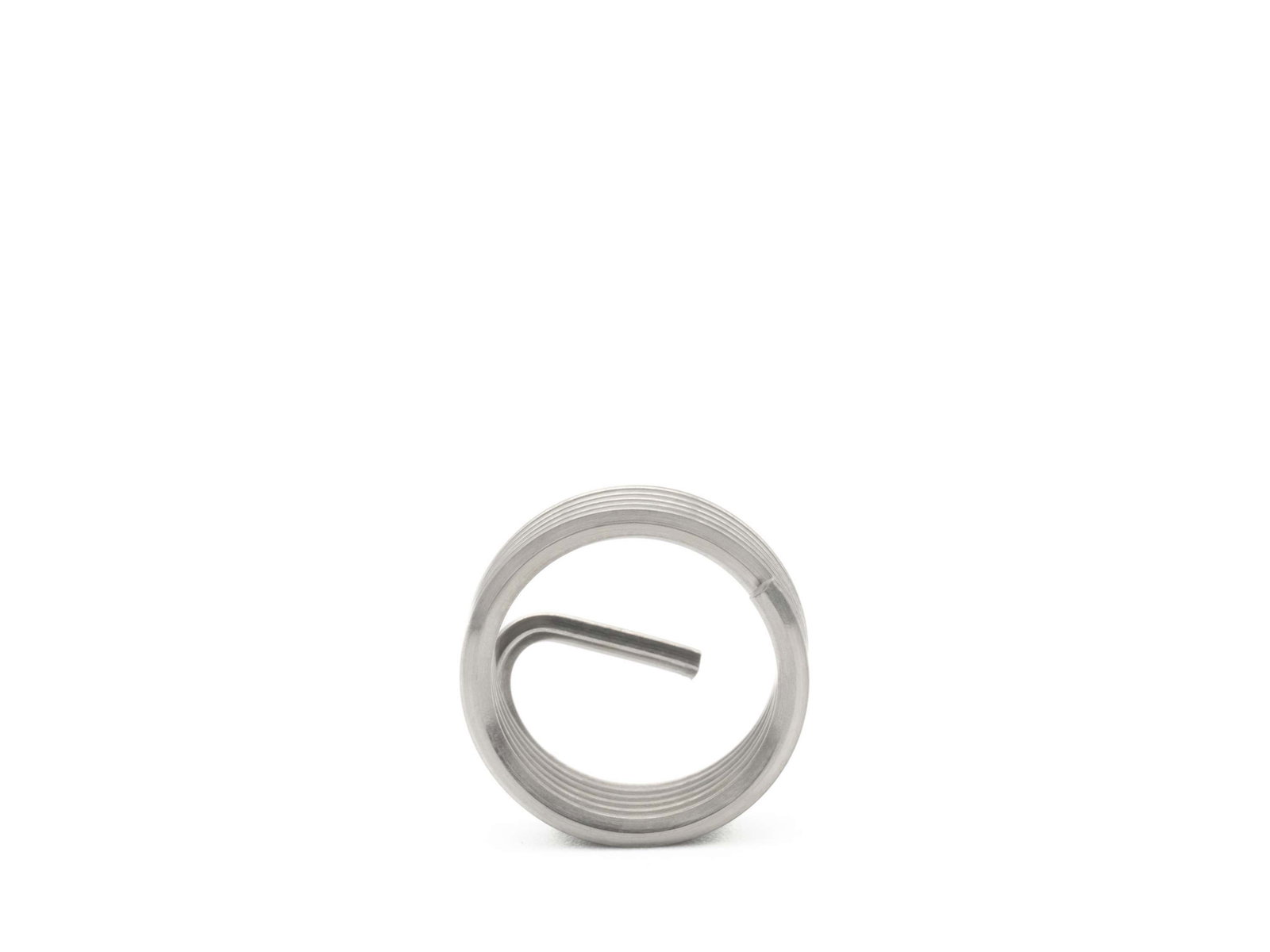

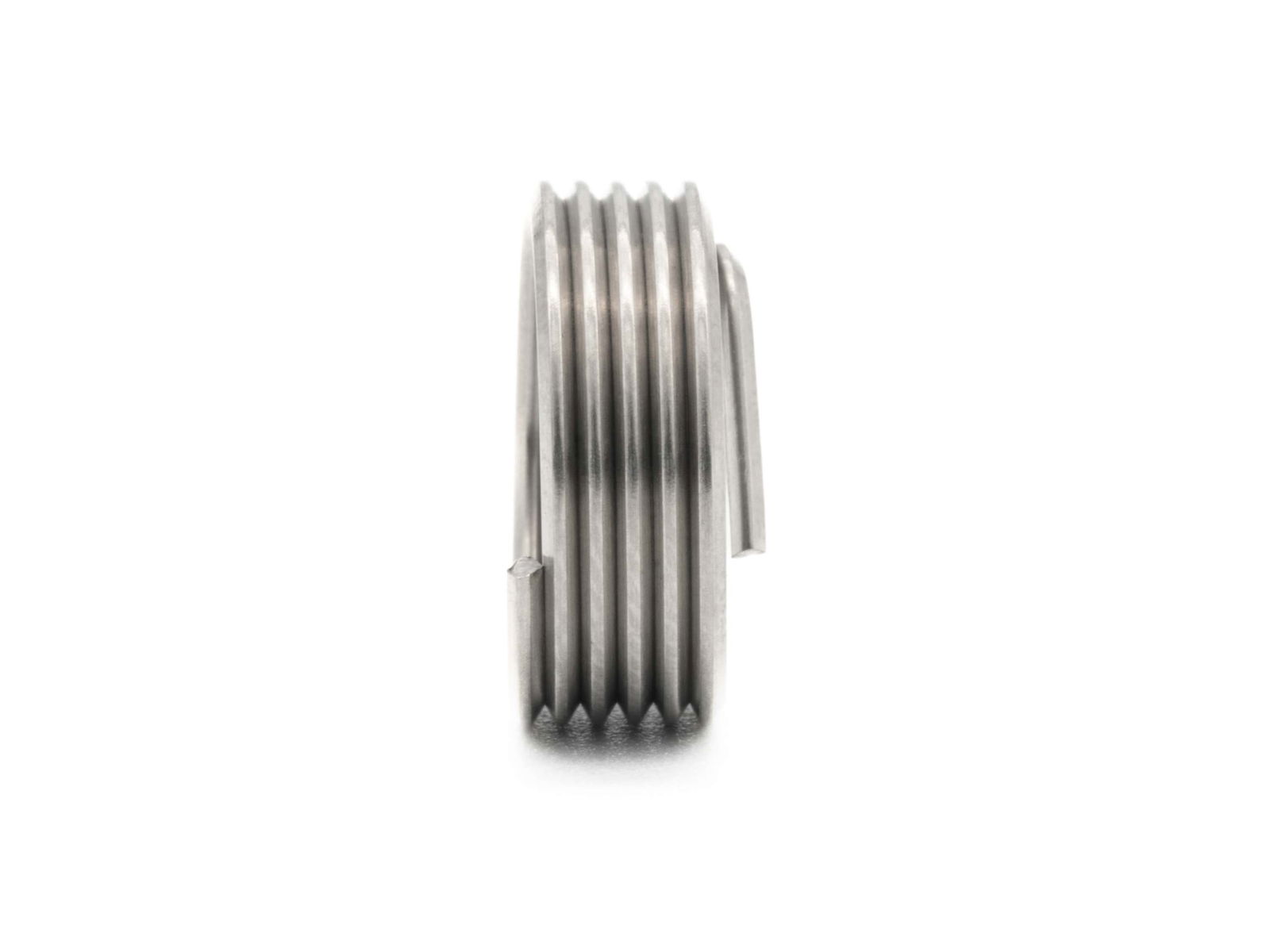

BaerCoil Wire Thread Inserts G (BSP) 1/2 x 14 - 1.5 D (19.05 mm) - free running - 25 pcs.
BaerCoil Wire Thread Inserts G (BSP) 1/2 x 14 - 1.5 D (19.05 mm) - free running - 25 pcs.
BaerCoil® thread inserts are the best solution for your thread repair! With them you can create long-lasting and powerful threaded connections. The inserts also ensure that you have no waste and recycle everything. The inserts are precise and wear-resistant - your screw will stay firmly in place without the thread insert slipping.
For thread repair with wire thread inserts, the thread is drilled out and a new STI thread (screw thread insert) is cut for the wire- thread insert. Often this thread is also called STI thread (STI=Screw Thread Insert).
BaerCoil® thread inserts ensure optimum power transmission from the bolt to the nut thread, even in lightweight constructions. Today, they are already an important component in aviation and vehicle construction. They save weight and allow the use of smaller and shorter bolted connections.
BaerCoil® thread inserts can be shortened, according to the required length, with a side cutter or similar.
Dimensions
| Diameter |
1/2 |
|---|---|
| Pitch |
14 |
| Dimension |
G (BSP) 1/2 x 14 |
| Length |
1,5 D |
| T (Length when installed) |
19,05 mm |
| Thread length calculation |
1.5 D means 1.5 times the calculation diameter: 1.5 times 12.7 mm=19.05 mm The nominal diameter for G (BSP) 1/2 is approx. 20.95 mm, but according to the standard the length is calculated with the diameter of 12.7 mm for calculation purposes |
Characteristics
| Product group |
Wire thread inserts |
|---|---|
| Product type |
BaerCoil wire thread inserts |
| Thread standard |
G (BSP): British Standard Pipe Thread according to DIN ISO 228 - Cylindrical pipe thread |
| Direction |
Right |
| Type |
free running |
| Tensile strength at room temperature |
>1400 N/mm² |
| Material |
Stainless Steel V2A (AISI 304, X5CrNi18-10, Material No.: 1.4301) |
| Temperature resistance |
315°C long-term 425°C short-term |
Applications
All normal uses for thread repair and thread reinforcement
Technical drawing
| Diameter |
1/2 |
|---|---|
| Length |
1,5 D |
| T (Length when installed) |
19,05 mm |
| F (Min. - Max. outside diameter of thread insert) |
0,911 '' - 0,992 '' |
| P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
| B (thread depth with chamfer) |
0,999 '' |
| D (minimum depth of the core hole, without tip) |
1,070 '' |
