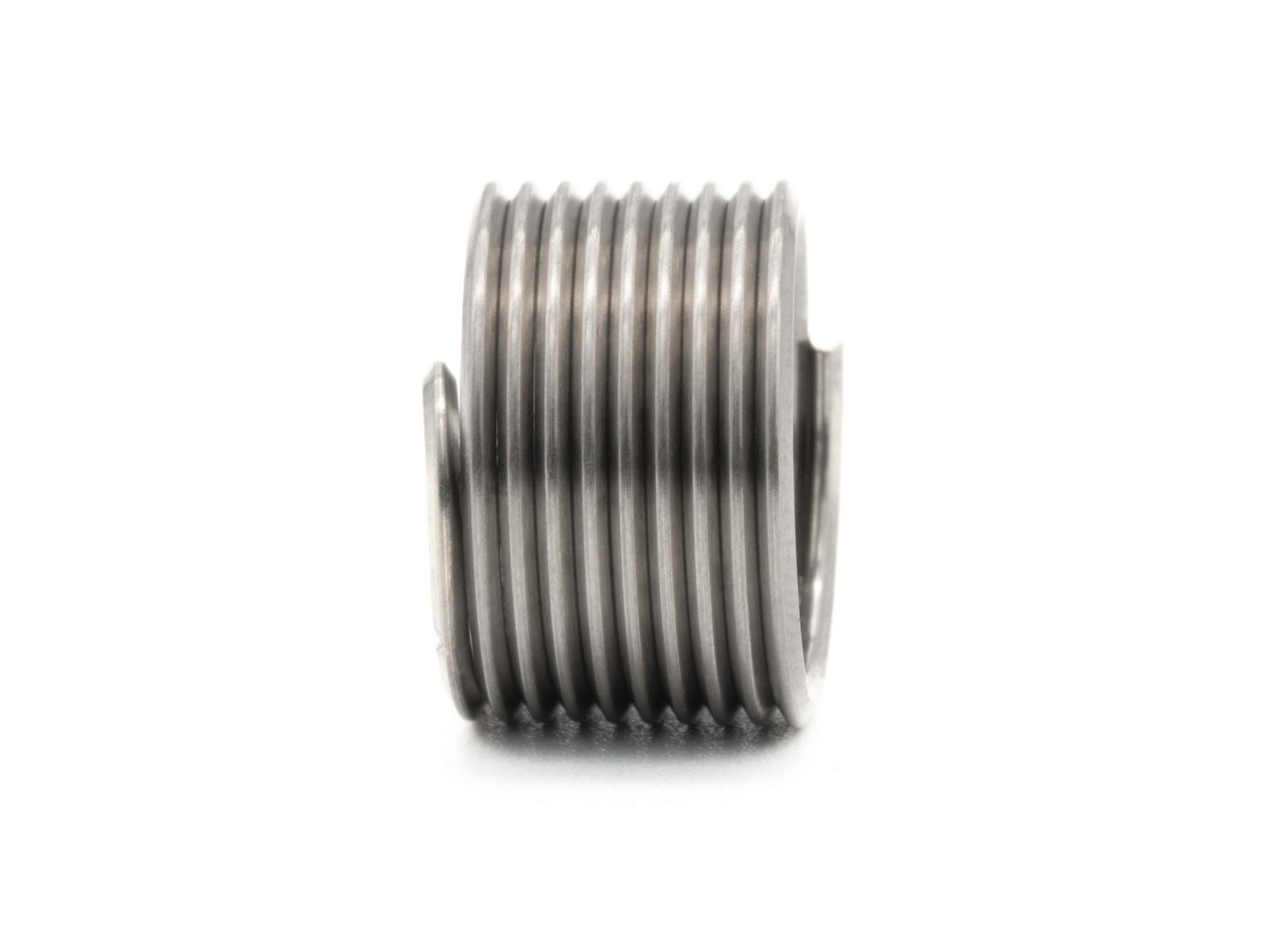

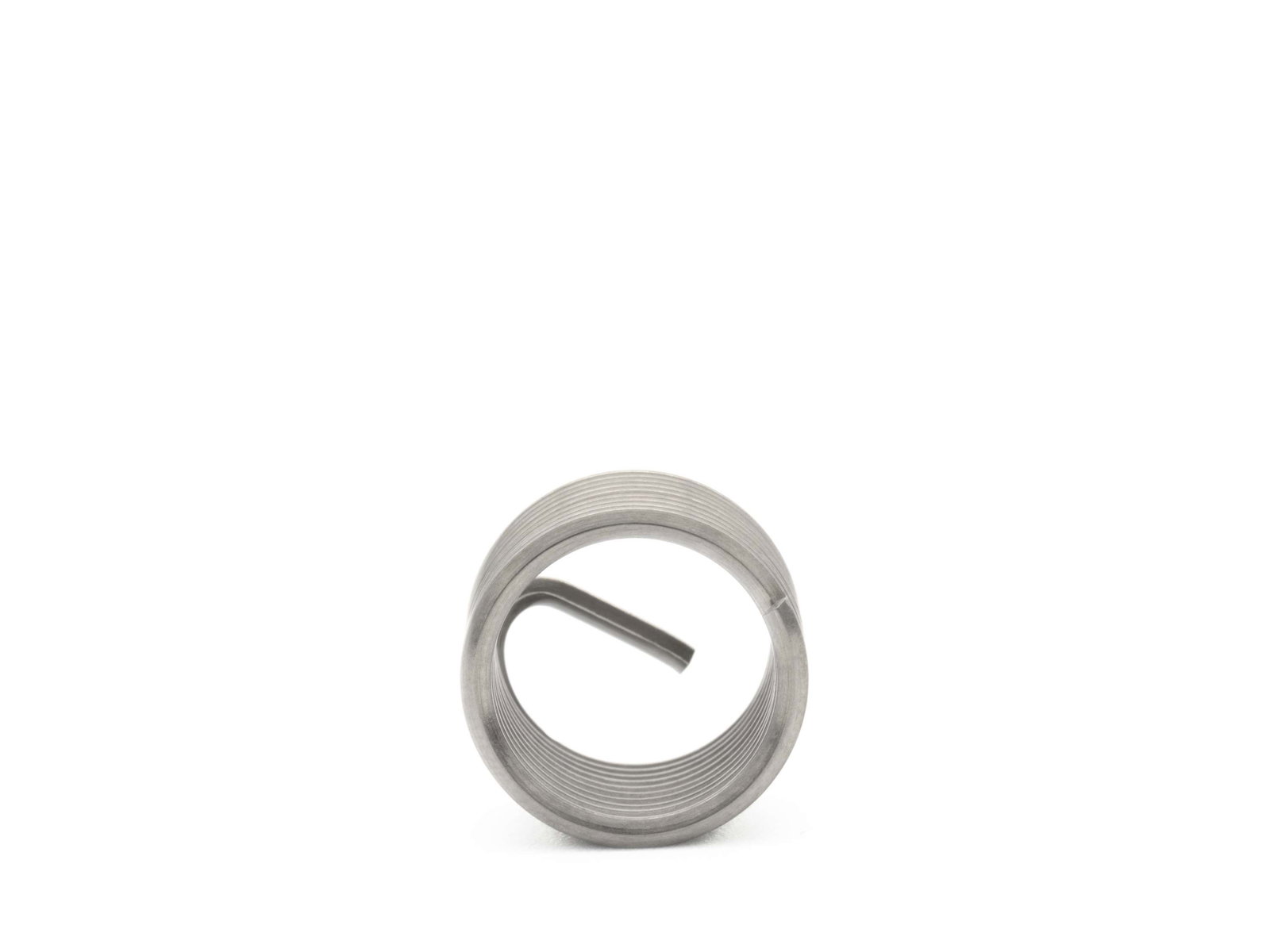

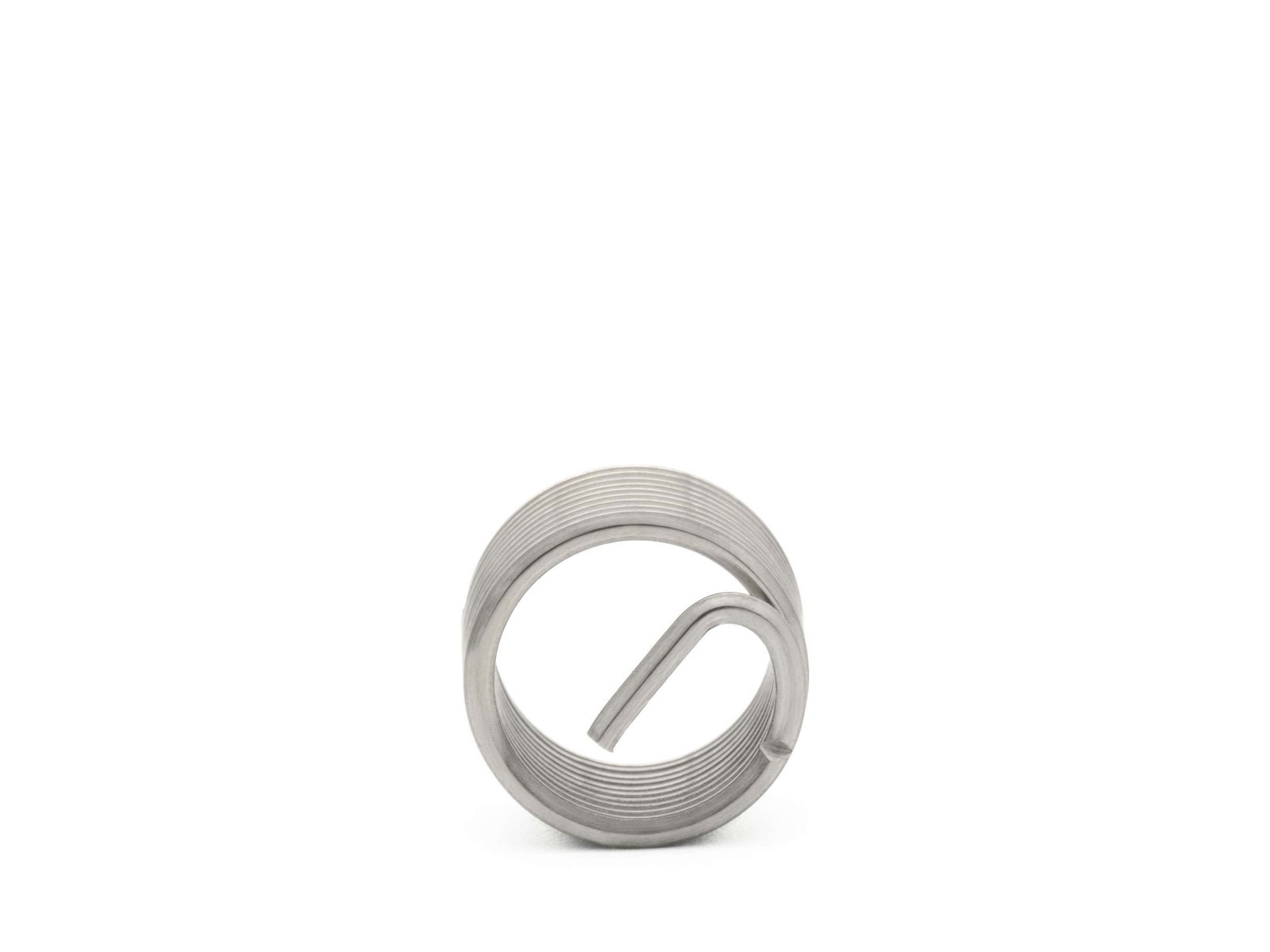

BaerCoil Wire Thread Inserts G (BSP) 1/4 x 19 - 2.5 D (15.88 mm) - free running - 100 pcs.
BaerCoil Wire Thread Inserts G (BSP) 1/4 x 19 - 2.5 D (15.88 mm) - free running - 100 pcs.
BaerCoil® thread inserts are the perfect solution for your thread repair needs! These inserts provide a durable and powerful thread connection and scrap recovery. With BaerCoil® thread inserts you also create load-bearing connections in materials with low shear strength. Precise and wear-resistant, the inserts hold your screw firmly in place without changing the thread insert. Ideal for repairing stripped or worn threads. wire thread inserts are often used in automotive, electrical, medical, lightweight construction, and aerospace applications.
The BaerCoil® thread insert is the perfect solution for damaged threads. With the use of BaerCoil® thread inserts, the thread produced is significantly stronger than the original thread.
BaerCoil® thread inserts are perfect for applications where a balanced distribution of forces is required. They can withstand both static and dynamic loads and help save support material.
BaerCoil® thread inserts can be shortened with a side cutter or similar, according to the length required.
Dimensions
| Diameter |
1/4 |
|---|---|
| Pitch |
19 |
| Dimension |
G (BSP) 1/4 x 19 |
| Length |
2,5 D |
| T (Length when installed) |
15,88 mm |
| Thread length calculation |
2.5 D means 2.5 times the calculation diameter: 2.5 times 6.35 mm=15.88 mm The nominal diameter for G (BSP) 1/4 is approx. 13.16 mm, but according to the standard the length is calculated with the diameter of 6.35 mm for calculation purposes |
Characteristics
| Product group |
Wire thread inserts |
|---|---|
| Product type |
BaerCoil wire thread inserts |
| Thread standard |
G (BSP): British Standard Pipe Thread according to DIN ISO 228 - Cylindrical pipe thread |
| Direction |
Right |
| Type |
free running |
| Tensile strength at room temperature |
>1400 N/mm² |
| Material |
Stainless Steel V2A (AISI 304, X5CrNi18-10, Material No.: 1.4301) |
| Temperature resistance |
315°C long-term 425°C short-term |
Applications
All normal uses for thread repair and thread reinforcement
Technical drawing
| Diameter |
1/4 |
|---|---|
| Length |
2,5 D |
| T (Length when installed) |
15,88 mm |
| F (Min. - Max. outside diameter of thread insert) |
0,582 '' - 0,637 '' |
| P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
| B (thread depth with chamfer) |
0,810 '' |
| D (minimum depth of the core hole, without tip) |
0,863 '' |
