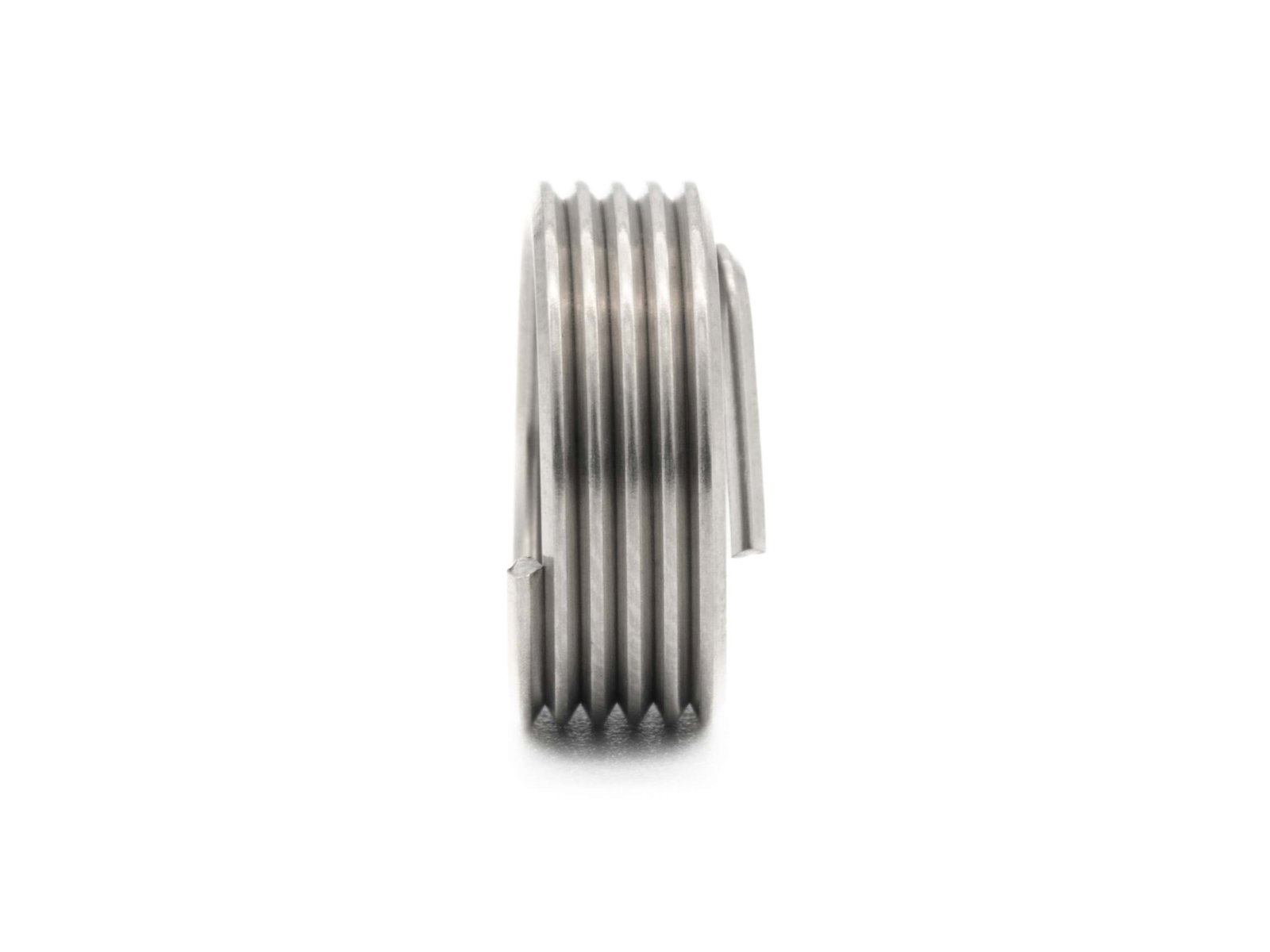

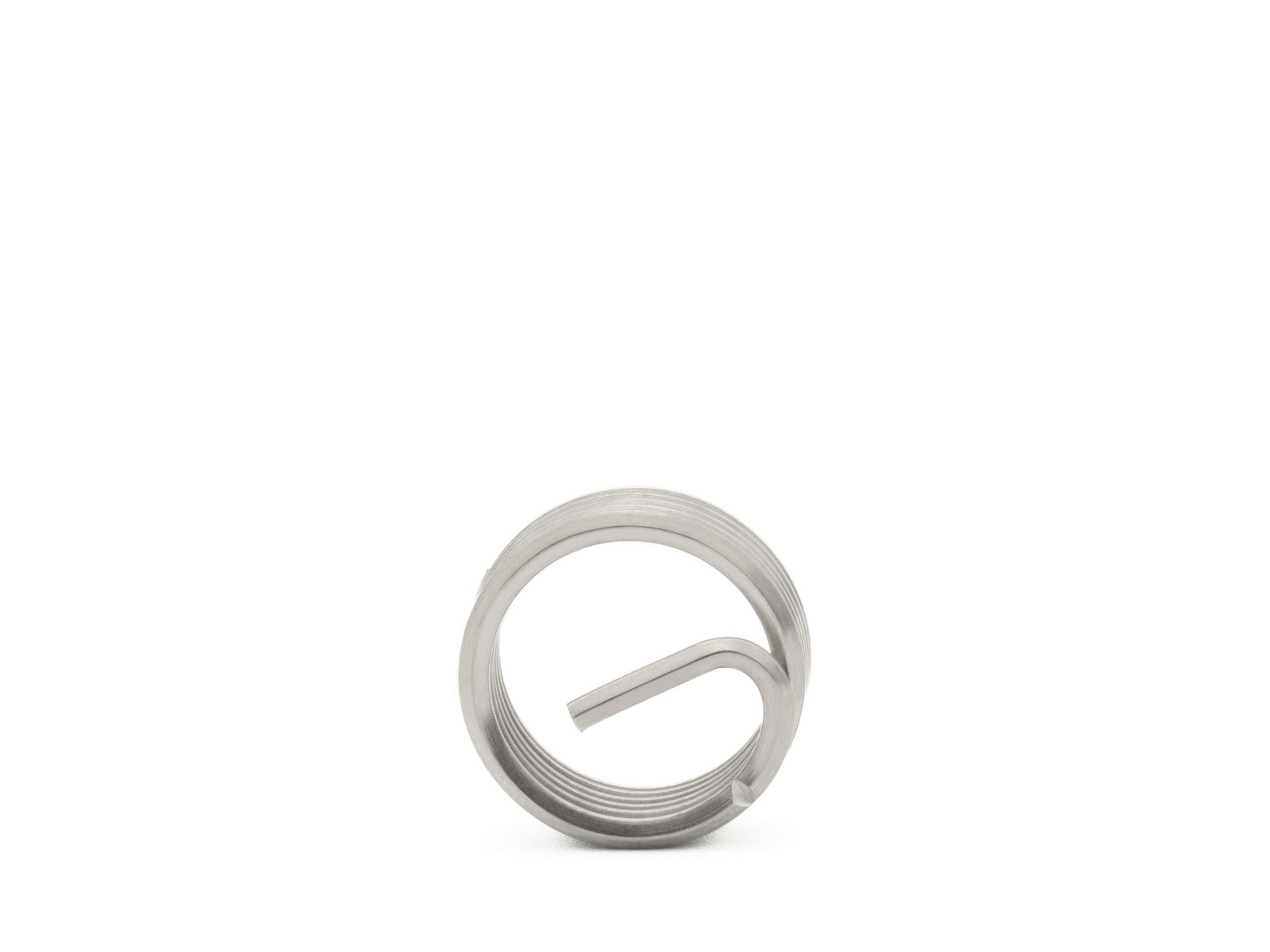

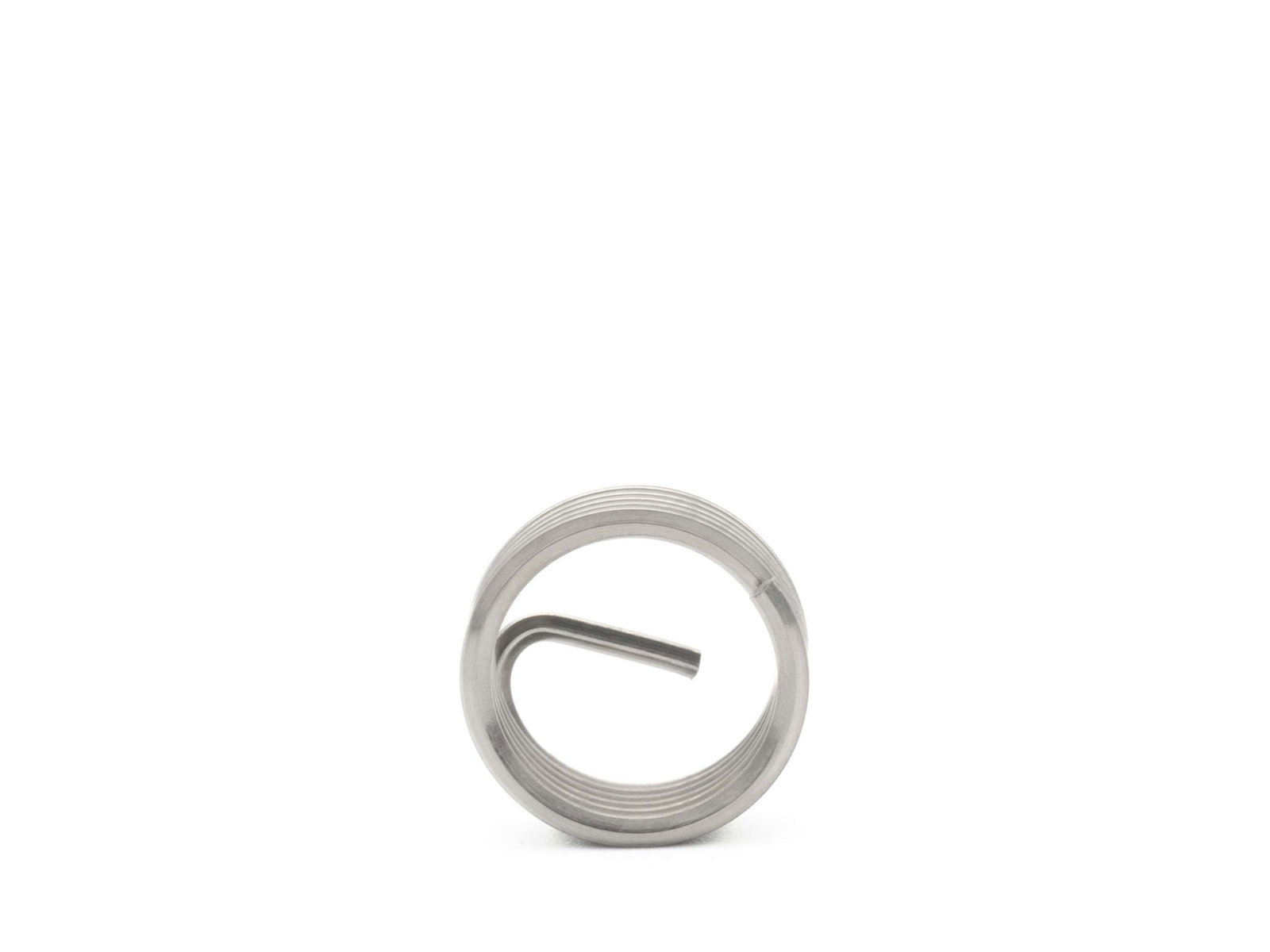

BaerCoil Wire Thread Inserts G (BSP) 3/8 x 19 - 1.5 D (14.29 mm) - free running - 50 pcs.
BaerCoil Wire Thread Inserts G (BSP) 3/8 x 19 - 1.5 D (14.29 mm) - free running - 50 pcs.
BaerCoil® thread inserts are the best solution for your thread repair! With them you can create long-lasting and powerful threaded connections. The inserts also ensure that you have no waste and recycle everything. The inserts are precise and wear-resistant - your screw will stay firmly in place without the thread insert slipping.
For thread repair with wire thread inserts, the thread is drilled out and a new STI thread (screw thread insert) is cut for the wire- thread insert. Often this thread is also called STI thread (STI=Screw Thread Insert).
BaerCoil® thread inserts are essential for optimal power transmission in lightweight constructions. They ensure that both static and dynamic work loads are distributed in a balanced manner to the individual thread turns. Also, the flexibility of the thread inserts compensates for any pitch and angle errors. BaerCoil® thread inserts not only save time and money, but are also much lighter and more compact than conventional screw connections.
BaerCoil® thread inserts can be shortened, according to the required length, with a side cutter or similar.
Dimensions
| Diameter |
3/8 |
|---|---|
| Pitch |
19 |
| Dimension |
G (BSP) 3/8 x 19 |
| Length |
1,5 D |
| T (Length when installed) |
14,29 mm |
| Thread length calculation |
1.5 D means 1.5 times the calculation diameter: 1.5 times 9.525 mm=14.29 mm The nominal diameter for G (BSP) 3/8 is approx. 16.66 mm, but according to the standard the length is calculated with the diameter of 9.525 mm for calculation purposes |
Characteristics
| Product group |
Wire thread inserts |
|---|---|
| Product type |
BaerCoil wire thread inserts |
| Thread standard |
G (BSP): British Standard Pipe Thread according to DIN ISO 228 - Cylindrical pipe thread |
| Direction |
Right |
| Type |
free running |
| Tensile strength at room temperature |
>1400 N/mm² |
| Material |
Stainless Steel V2A (AISI 304, X5CrNi18-10, Material No.: 1.4301) |
| Temperature resistance |
315°C long-term 425°C short-term |
Applications
All normal uses for thread repair and thread reinforcement
Technical drawing
| Diameter |
3/8 |
|---|---|
| Length |
1,5 D |
| T (Length when installed) |
14,29 mm |
| F (Min. - Max. outside diameter of thread insert) |
0,720 '' - 0,787 '' |
| P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
| B (thread depth with chamfer) |
0,747 '' |
| D (minimum depth of the core hole, without tip) |
0,800 '' |
