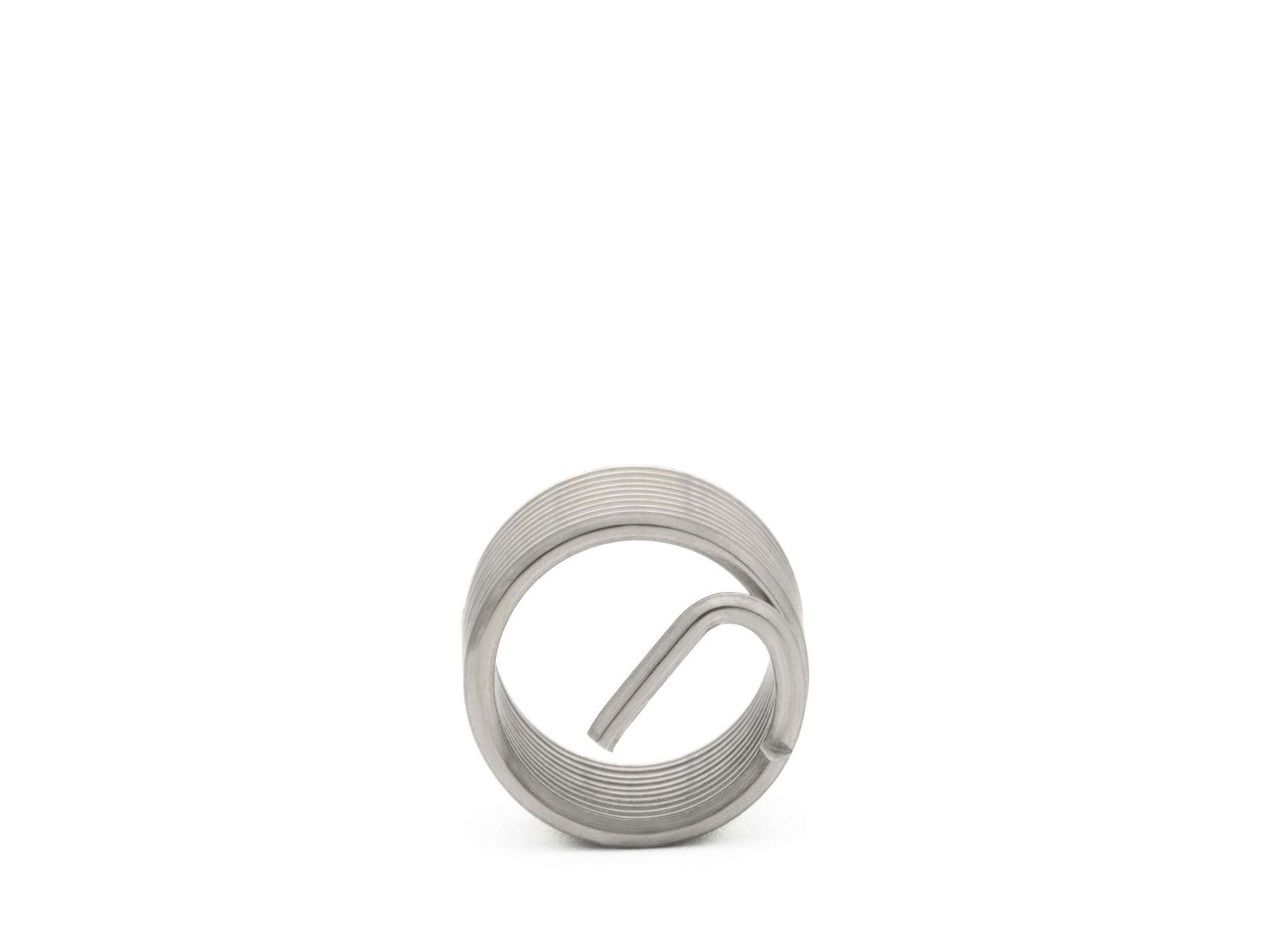

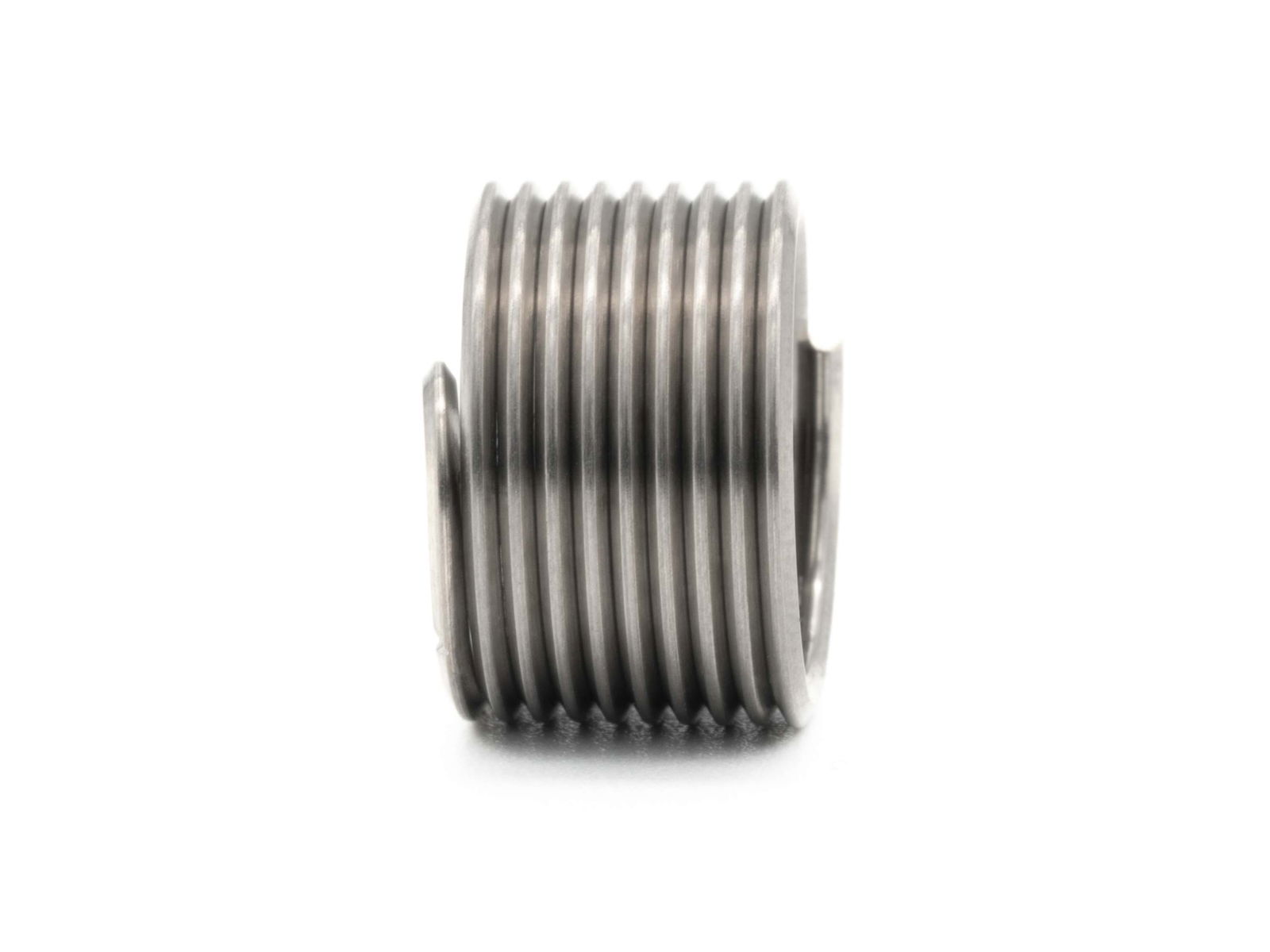

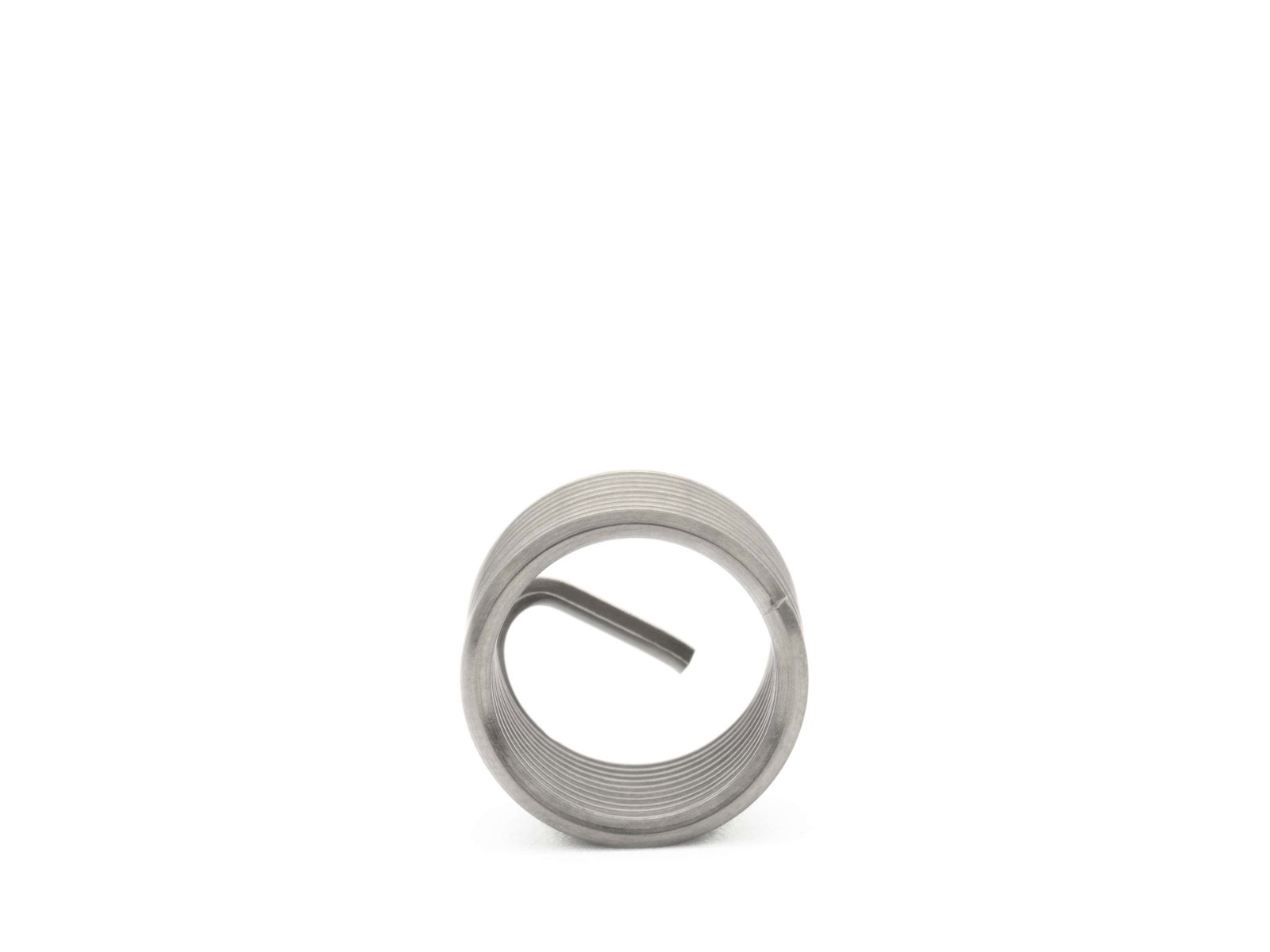

BaerCoil Wire Thread Inserts G (BSP) 3/8 x 19 - 2.5 D (23.81 mm) - free running - 50 pcs.
BaerCoil Wire Thread Inserts G (BSP) 3/8 x 19 - 2.5 D (23.81 mm) - free running - 50 pcs.
BaerCoil® thread inserts are the best solution for all your repair needs! With them you can create long-lasting and powerful connections. These inserts also ensure that you have no waste and recycle everything. The inserts are precise and wear resistant - your screw will stay firmly in place without the thread insert slipping.
The BaerCoil® thread insert is the perfect solution for damaged threads. With the use of BaerCoil® thread inserts, the thread produced is significantly stronger than the original thread.
BaerCoil® thread inserts ensure optimum power transmission from the bolt to the nut thread. The flexibility of the thread inserts compensates for any pitch and angular errors so that the loads are distributed evenly over the individual thread turns. BaerCoil® thread inserts are ideal for lightweight constructions, as they reduce the carrier material and enable smaller or shorter screw connections. Today, they are already an important component in aviation and vehicle construction.
BaerCoil® thread inserts can be shortened according to the required length with a side cutter or similar.
Dimensions
| Diameter |
3/8 |
|---|---|
| Pitch |
19 |
| Dimension |
G (BSP) 3/8 x 19 |
| Length |
2,5 D |
| T (Length when installed) |
23,81 mm |
| Thread length calculation |
2.5 D means 2.5 times the calculation diameter: 2.5 times 9.525 mm=23.81 mm The nominal diameter for G (BSP) 3/8 is approx. 16.66 mm, but according to the standard the length is calculated with the diameter of 9.525 mm for calculation purposes |
Characteristics
| Product group |
Wire thread inserts |
|---|---|
| Product type |
BaerCoil wire thread inserts |
| Thread standard |
G (BSP): British Standard Pipe Thread according to DIN ISO 228 - Cylindrical pipe thread |
| Direction |
Right |
| Type |
free running |
| Tensile strength at room temperature |
>1400 N/mm² |
| Material |
Stainless Steel V2A (AISI 304, X5CrNi18-10, Material No.: 1.4301) |
| Temperature resistance |
315°C long-term 425°C short-term |
Applications
All normal uses for thread repair and thread reinforcement
Technical drawing
| Diameter |
3/8 |
|---|---|
| Length |
2,5 D |
| T (Length when installed) |
23,81 mm |
| F (Min. - Max. outside diameter of thread insert) |
0,720 '' - 0,787 '' |
| P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
| B (thread depth with chamfer) |
1,122 '' |
| D (minimum depth of the core hole, without tip) |
1,175 '' |
