BaerCoil Wire Thread Inserts Harley 7/16 x 16 - 1.5 D (16.67 mm) - screw grip (screw locking) - 10 pcs.
BaerCoil Wire Thread Inserts Harley 7/16 x 16 - 1.5 D (16.67 mm) - screw grip (screw locking) - 10 pcs.
BaerCoil® thread inserts are the best solution for your thread repair! With them you can create long-lasting and powerful threaded connections. The inserts also ensure that you have no waste and recycle everything. The inserts are precise and wear-resistant - your screw will stay firmly in place without the thread insert slipping.

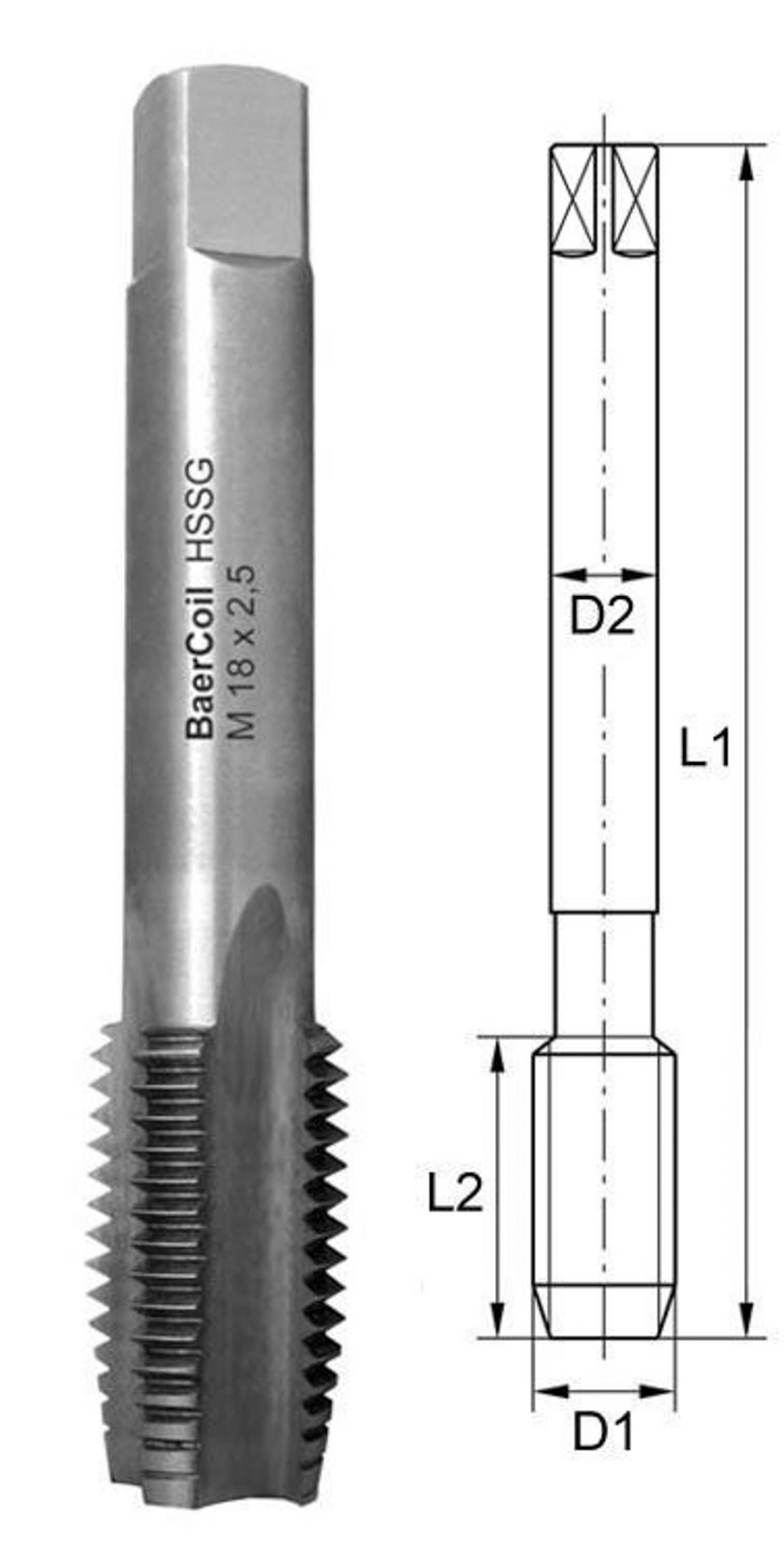

For thread repair with wire thread inserts, the thread is drilled out and a new STI thread (screw thread insert) is cut for the wire- thread insert. Often this thread is also called STI thread (STI=Screw Thread Insert).
BaerCoil® thread inserts are perfect for applications where a balanced distribution of forces is required. They can withstand both static and dynamic loads and help save backing material.
BaerCoil® screw-locking thread inserts | Type "screw grip " - All advantages at a glance
With the self-clamping "screw grip" thread inserts, your construction will remain stable - regardless of shocks, constant vibrations or movements. The screw-locking BaerCoil® thread inserts complement the properties of the "free running" connection and have a clamping effect on the flanks of the screwed-in screw due to their polygonally shaped windings. Please use only screws of a higher strength class for this purpose, as an elastically resilient frictional connection is created. The clamping torques are comparable with the specifications in DIN 267 Part 15 and ISO 2320. Please note that special insertion tools with reduced diameters are required for screw grip inserts.
BaerCoil® thread inserts can be shortened if necessary, according to the required length, with a side cutter or similar. It should be noted that the thread inserts with screw locking have a polygonal winding approximately in the middle of the insert. This must not be removed when shortening in order to maintain the screw locking effect.
Dimensions
| Diameter |
7/16 |
|---|---|
| Pitch |
16 |
| Dimension |
Harley 7/16 x 16 |
| Length |
1,5 D |
| T (Length when installed) |
16,67 mm |
| Thread length calculation |
1.5 D means 1.5 times the diameter: 1.5 times 11.11 mm=16.67 mm The nominal diameter for Harley 7/16 is approx. 11.11 mm |
Characteristics
| Product group |
Wire thread inserts |
|---|---|
| Product type |
BaerCoil wire thread inserts |
| Thread standard |
Harley |
| Direction |
Right |
| Type |
screw grip (screw locking) |
| Tensile strength at room temperature |
>1400 N/mm² |
| Material |
Stainless Steel V2A (AISI 304, X5CrNi18-10, Material No.: 1.4301) |
| Temperature resistance |
315°C long-term 425°C short-term |
Applications
All normal uses for thread repair and thread reinforcement
Technical drawing
| Diameter |
7/16 |
|---|---|
| Length |
1,5 D |
| T (Length when installed) |
16,67 mm |
| P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
