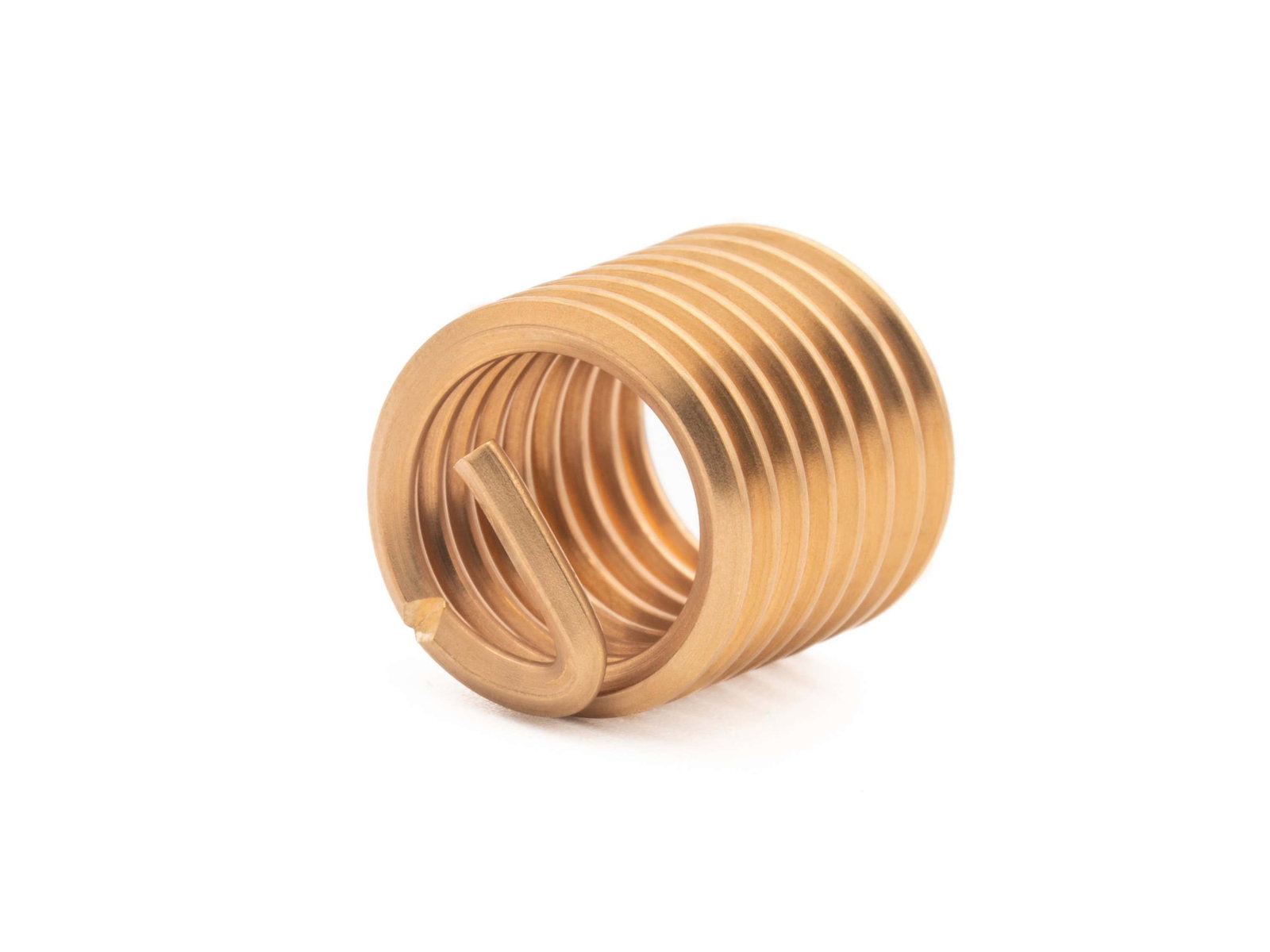

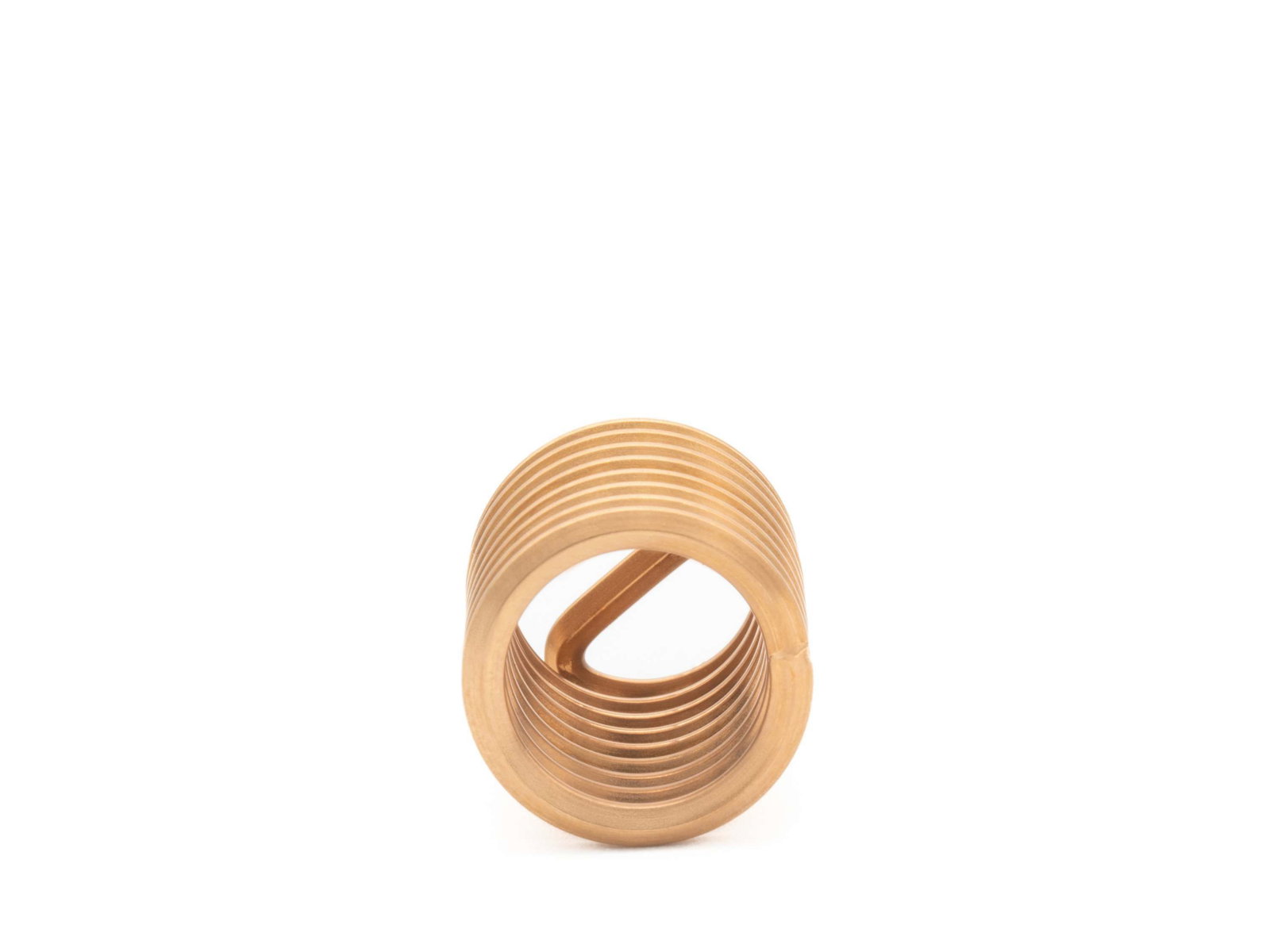

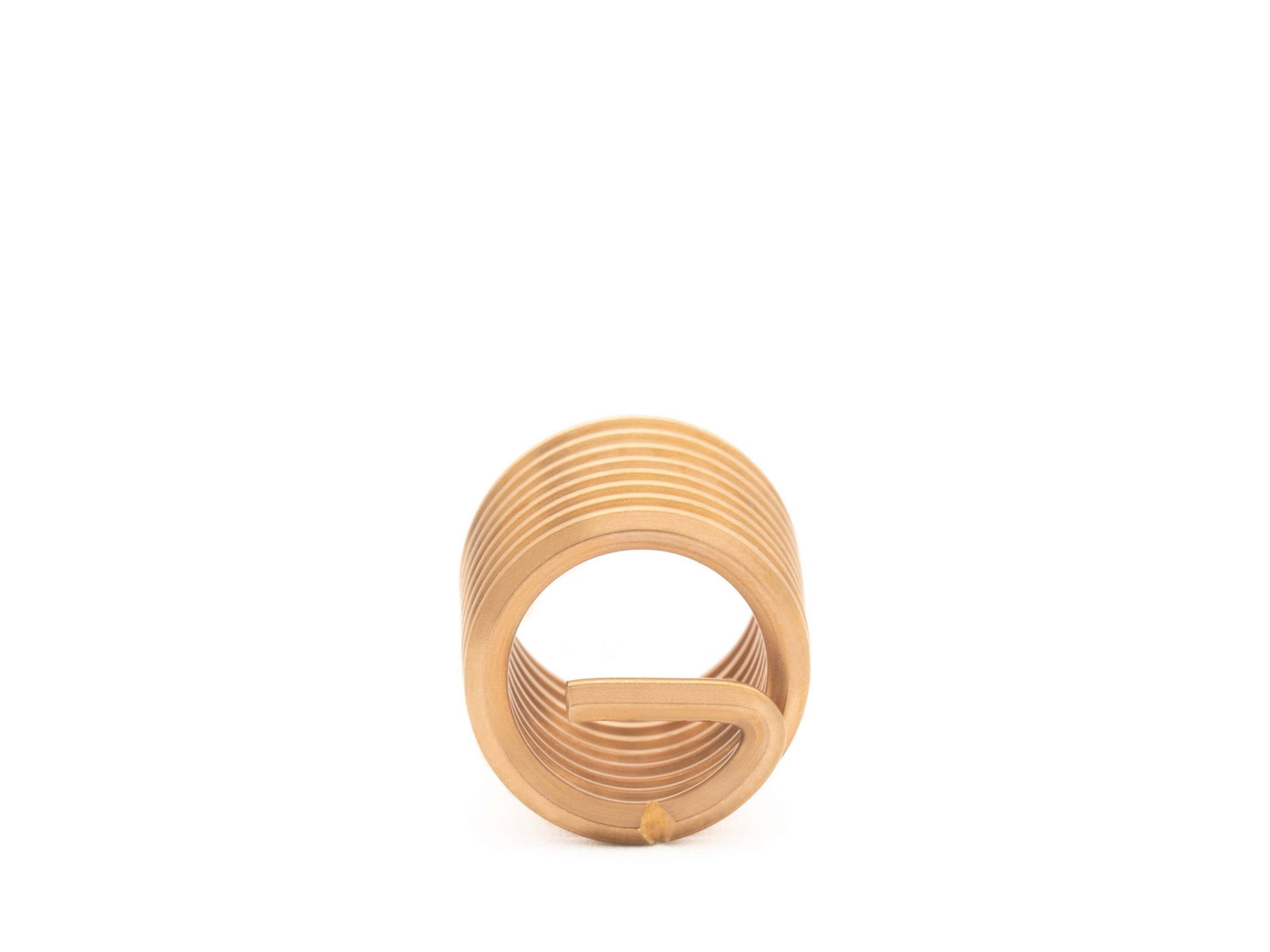

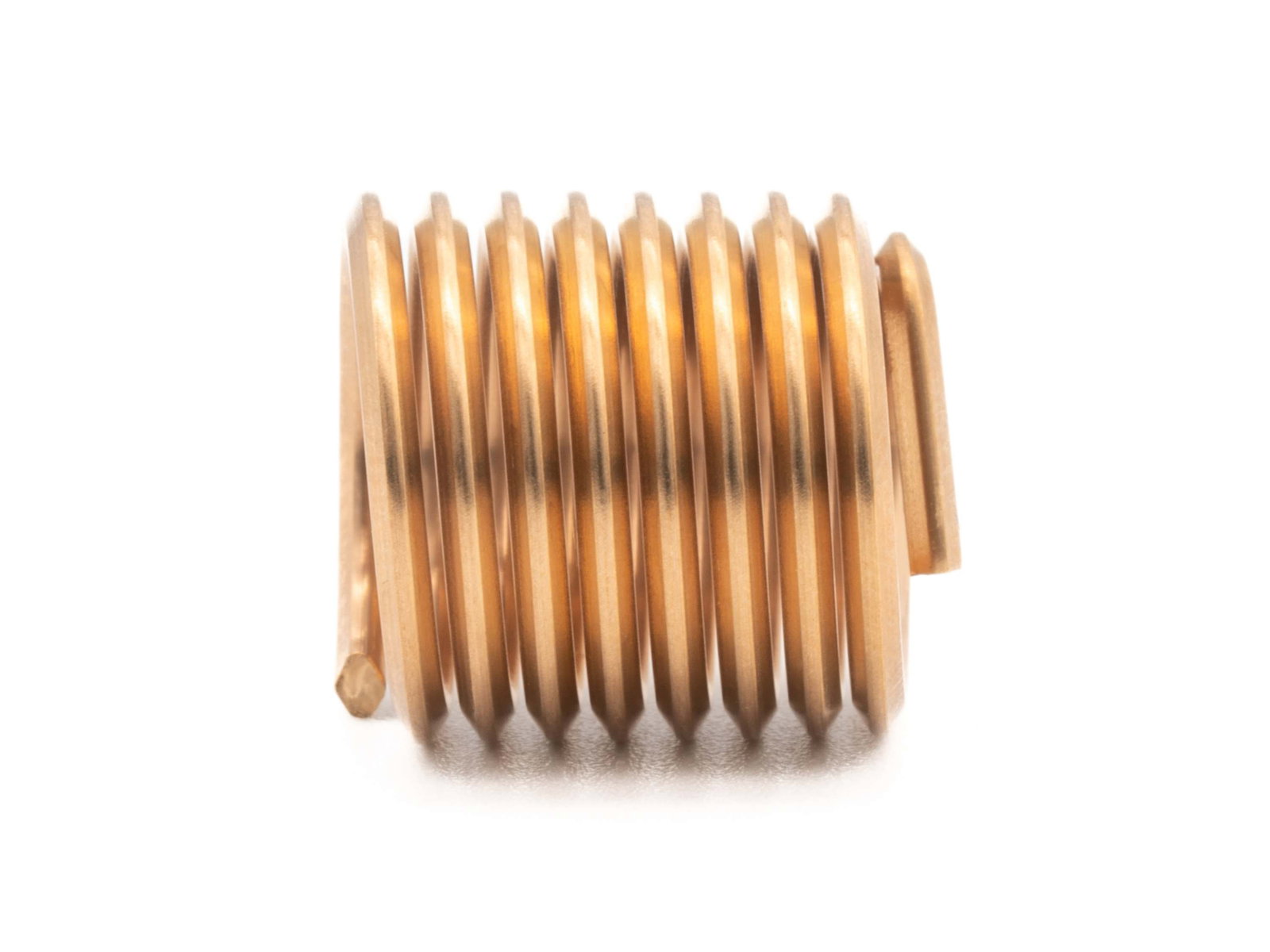

BaerCoil Wire Thread Inserts M 10 x 1.5 - 1.5 D (15 mm) - free running - Bronze - 100 pcs.
BaerCoil Wire Thread Inserts M 10 x 1.5 - 1.5 D (15 mm) - free running - Bronze - 100 pcs.
BaerCoil® thread inserts are the perfect solution for your thread repair needs! These inserts provide a long lasting and powerful thread connection and scrap recovery.
The BaerCoil® thread insert is the perfect solution for damaged threads while maintaining nominal diameter. With BaerCoil® thread inserts, the thread produced is significantly stronger than the original thread.
BaerCoil® thread inserts ensure that both static and dynamic work loads are evenly distributed over the individual thread turns. Also, the flexibility of the ® thread inserts compensates for any pitch and angular errors, so that optimum force transmission from the bolt to the nut thread is achieved.
BaerCoil® thread inserts can be shortened according to the required length with a side cutter or similar.
Dimensions
| Diameter |
10 |
|---|---|
| Pitch |
1,5 |
| Dimension |
M 10 x 1,5 |
| Length |
1,5 D |
| T (Length when installed) |
15 mm |
| Thread length calculation |
1.5 D means 1.5 times the diameter: 1.5 times 10 mm=15 mm The nominal diameter for M 10 is 10 mm |
Characteristics
| Product group |
Wire thread inserts |
|---|---|
| Product type |
BaerCoil wire thread inserts |
| Thread standard |
M: Metric ISO standard thread according to DIN 13 |
| Tolerance |
ISO2/6H |
| Direction |
Right |
| Type |
free running |
| Tensile strength at room temperature |
> 900 N/mm² |
| Material |
from Bronze (CuSn6, CW452K, material no.: 2.1020) |
| Temperature resistance |
250°C long-term 300°C short-term |
Applications
- Applications in seawater
- Best electrical conductivity
Attributes
- Movement thread
- Cr-Ni screws
- Cu workpieces
- Non-magnetic
Technical drawing
| Diameter |
10 |
|---|---|
| Length |
1,5 D |
| T (Length when installed) |
15 mm |
| F (Min. - Max. outside diameter of thread insert) |
11,74 mm - 12,50 mm |
| P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
| B (thread depth with chamfer) |
20,25 mm |
| D (minimum depth of the core hole, without tip) |
21,75 mm |
