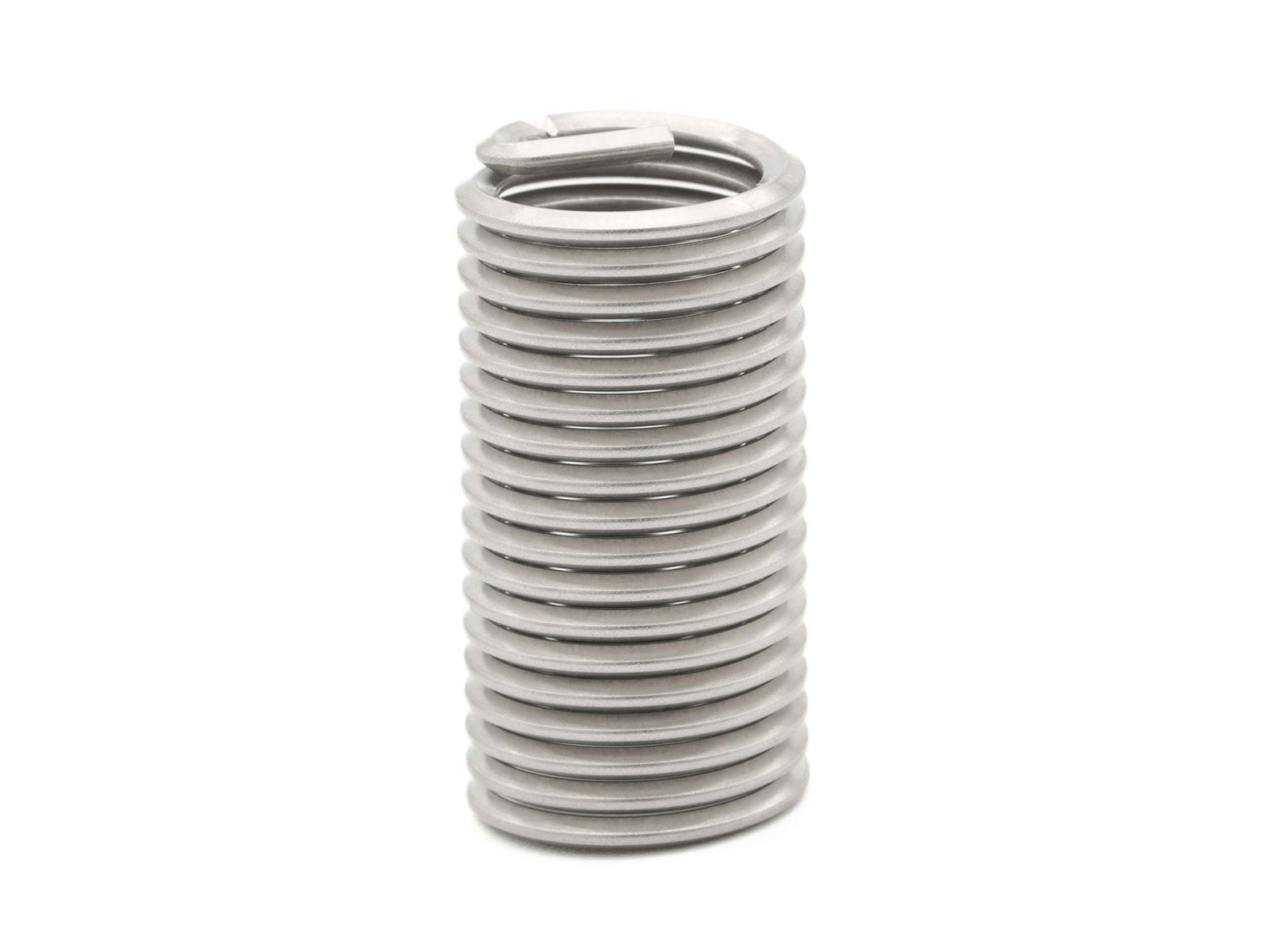

BaerCoil Wire Thread Inserts M 14 x 1.0 - 3.0 D (42 mm) - free running - 50 pcs.
€77.84*
Prices incl. VAT plus shipping costs
In stock
Express shipping is also possible for this product
BaerCoil Wire Thread Inserts M 14 x 1.0 - 3.0 D (42 mm) - free running - 50 pcs.
BaerCoil® thread inserts are the best solution for all your repair needs! With them you can create long-lasting and powerful connections. These inserts also ensure that you have no waste and recycle everything. The inserts are precise and wear resistant - your screw will stay firmly in place without the thread insert slipping.
The BaerCoil® thread insert is the perfect solution for damaged threads while maintaining the same nominal diameter. For thread repair with wire thread inserts, the thread is drilled out and a new STI thread (screw thread insert) is cut for the wire- thread insert. This thread is often called STI thread (STI=Screw Thread Insert). Then the BaerCoil® thread insert is screwed into the old thread and thus the workpieces are screwed on again. With BaerCoil® thread inserts, the thread produced is significantly more stable than the original thread.
BaerCoil® thread inserts are sophisticated design elements that ensure optimum power transmission from the bolt to the nut thread. They compensate for pitch and angular errors and thus distribute static and dynamic work loads evenly over all thread turns. This is particularly important in lightweight constructions where the carrier material is to be reduced. BaerCoil® thread inserts make it possible to use smaller and shorter screw connections. They are already an important component in the aerospace and automotive industries.
BaerCoil® thread inserts can be shortened, according to the required length, with a side cutter or similar.
Dimensions
Diameter |
14 |
---|---|
Pitch |
1,0 |
Dimension |
MF 14 x 1,0 |
Length |
3,0 D |
T (Length when installed) |
42 mm |
Thread length calculation |
3.0 D means 3 times the diameter: 3 times 14 mm=42 mm The nominal diameter for MF 14 is 14 mm |
Characteristics
Product group |
Wire thread inserts |
---|---|
Product type |
BaerCoil wire thread inserts |
Thread standard |
MF: Metric ISO fine thread according to DIN 13 |
Tolerance |
ISO2/6H |
Direction |
Right |
Type |
free running |
Tensile strength at room temperature |
>1400 N/mm² |
Material |
Stainless Steel V2A (AISI 304, X5CrNi18-10, Material No.: 1.4301) |
Temperature resistance |
315°C long-term 425°C short-term |
Applications
All normal uses for thread repair and thread reinforcement
Technical drawing
Diameter |
14 |
---|---|
Length |
3,0 D |
T (Length when installed) |
42 mm |
F (Min. - Max. outside diameter of thread insert) |
15,47 mm - 17,03 mm |
P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
B (thread depth with chamfer) |
46,37 mm |
D (minimum depth of the core hole, without tip) |
47,62 mm |
