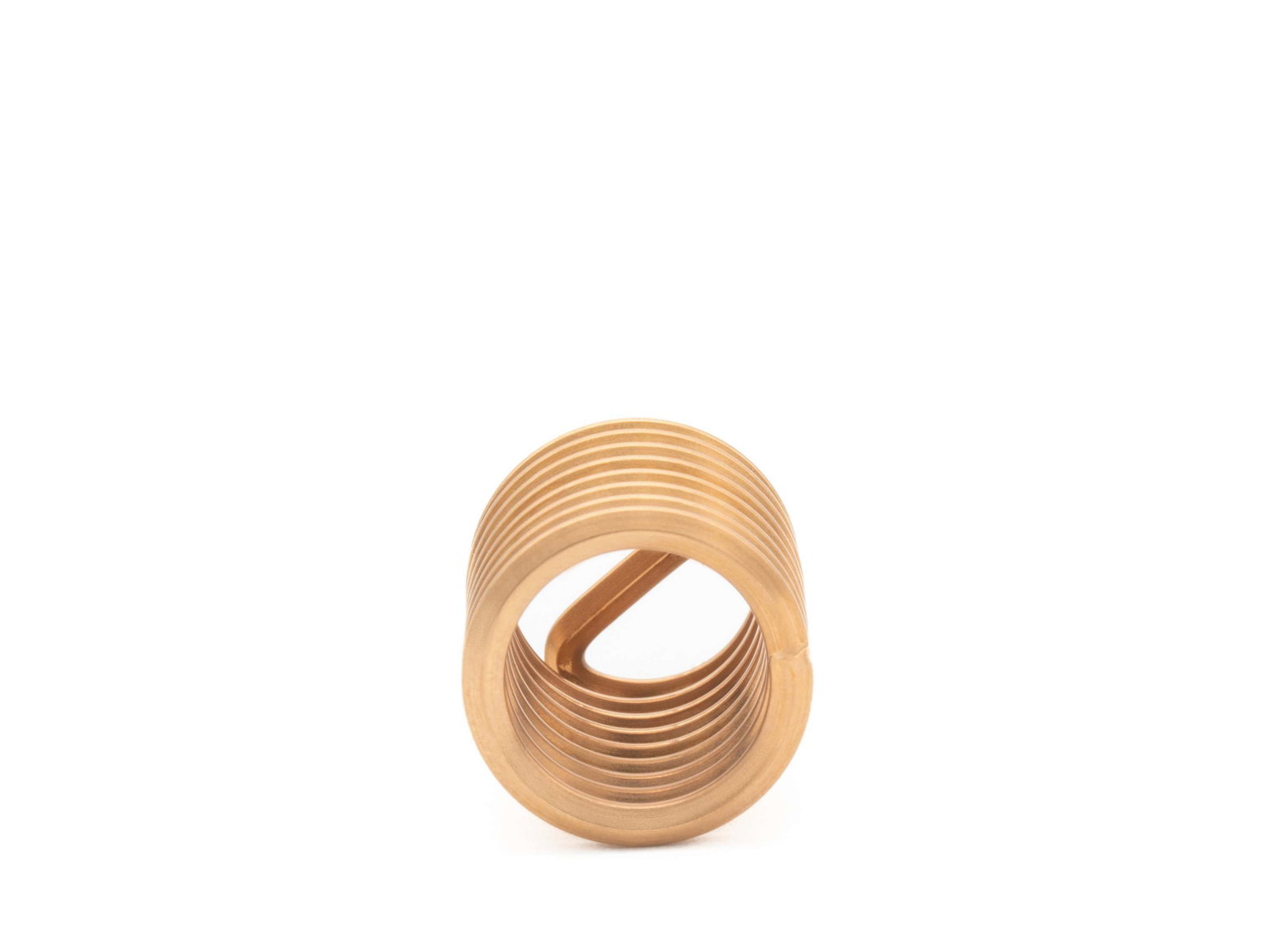

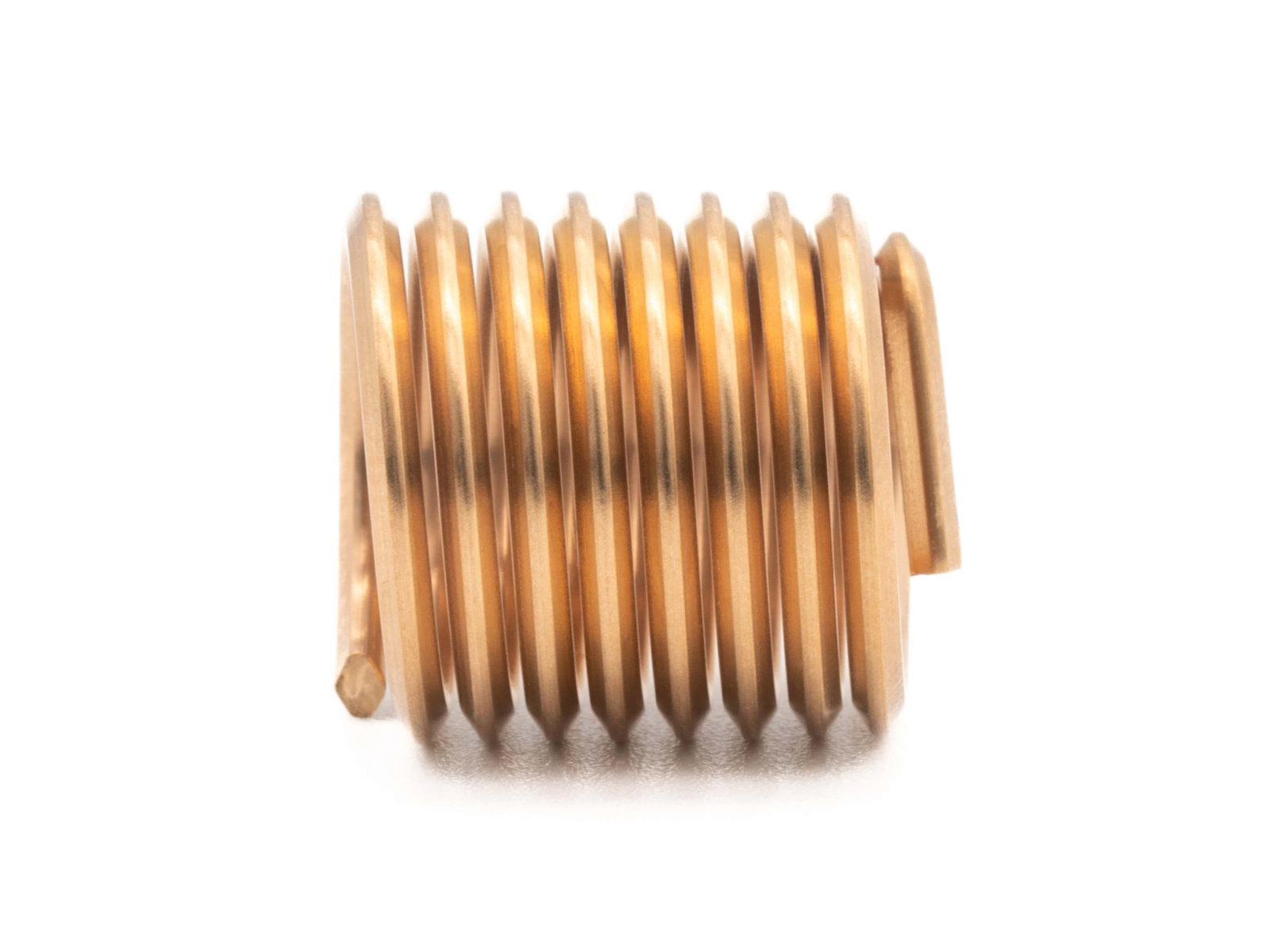

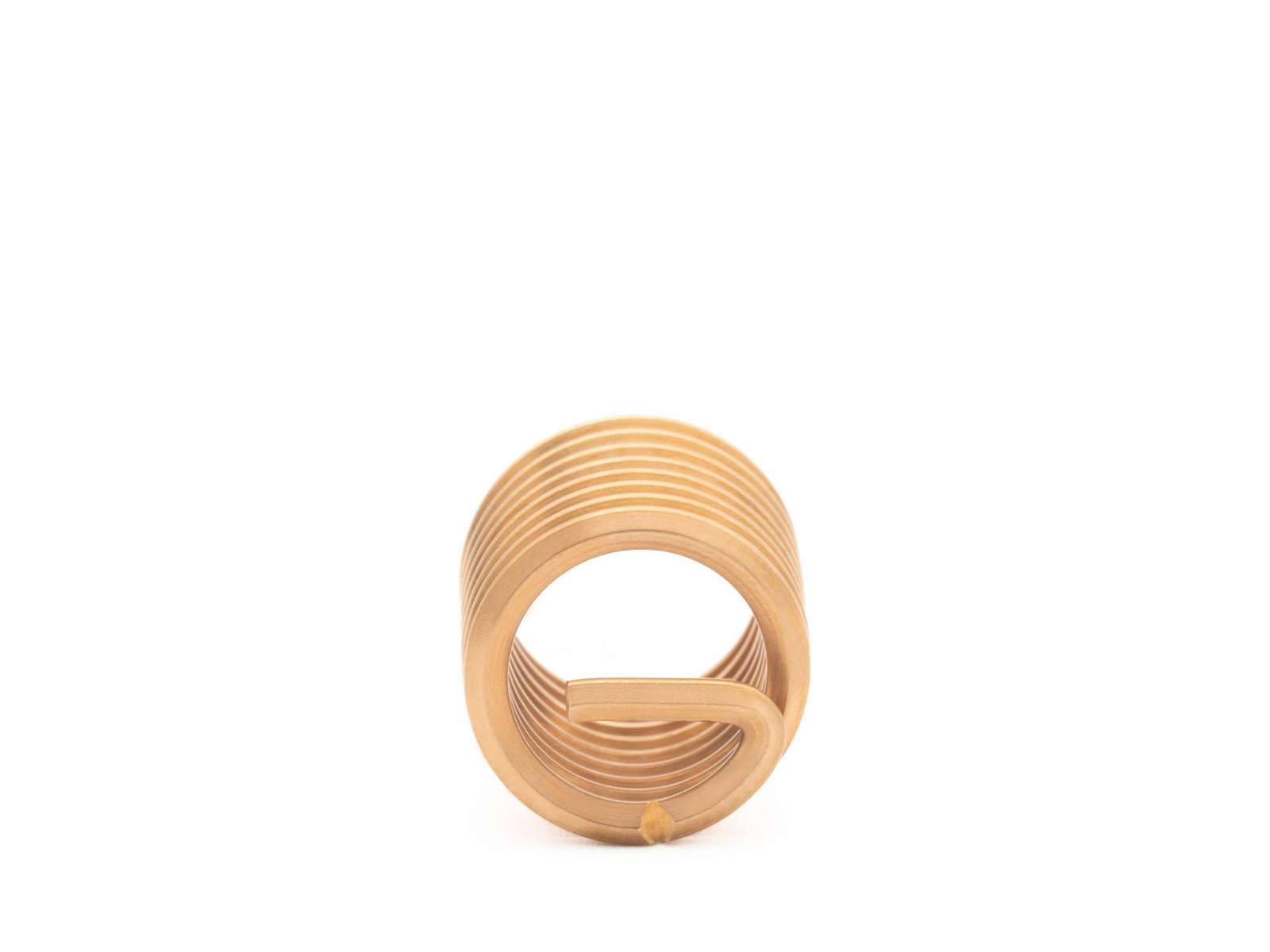

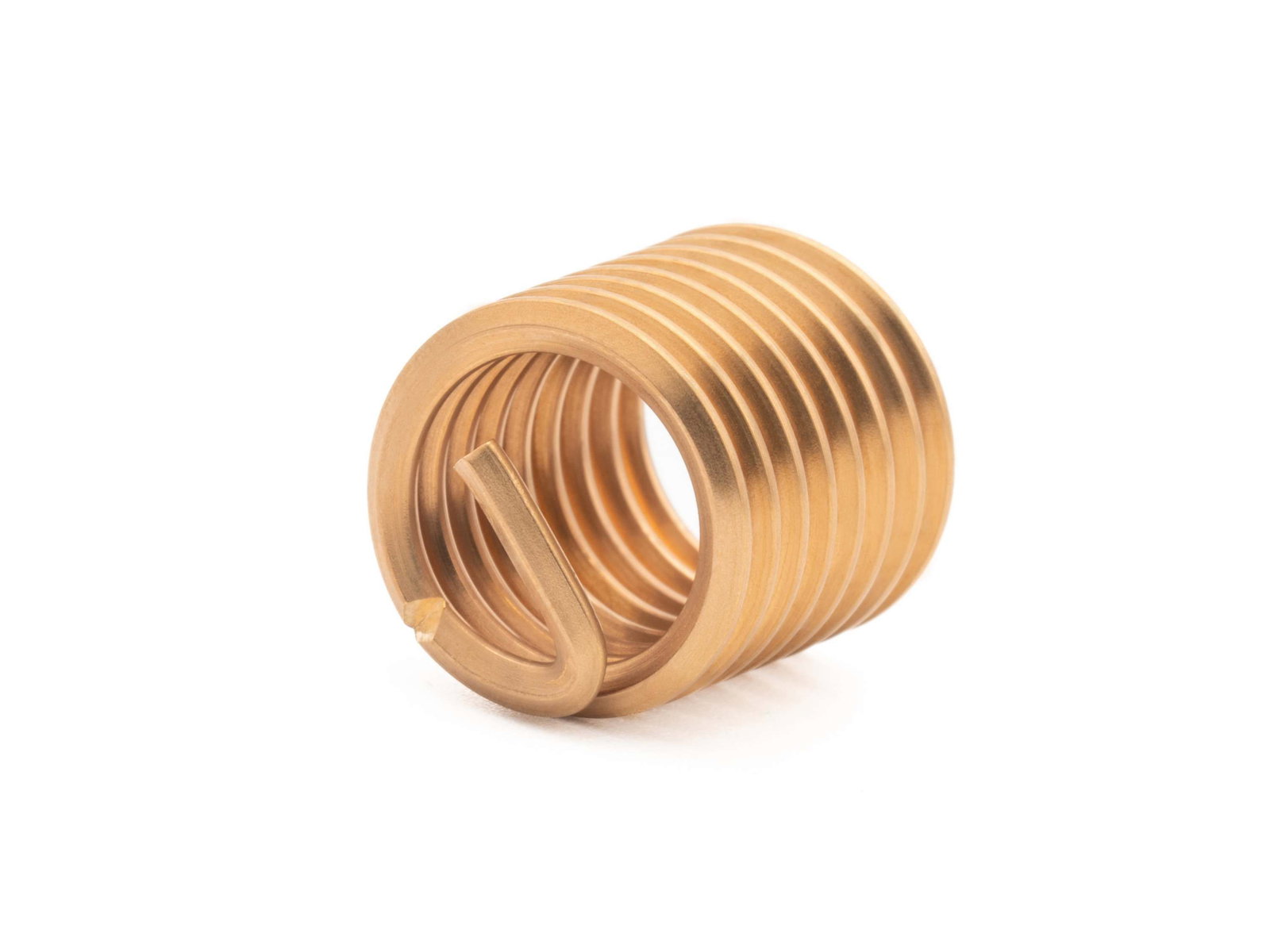

BaerCoil Wire Thread Inserts M 16 x 2.0 - 1.5 D (24 mm) - free running - Bronze - 100 pcs.
In stock
Express shipping available
BaerCoil Wire Thread Inserts M 16 x 2.0 - 1.5 D (24 mm) - free running - Bronze - 100 pcs.
BaerCoil® wire thread inserts provide a long-lasting and powerful thread connection and scrap recovery in the thread repair. The inserts also create load-bearing connections in materials with low shear strength. thread inserts are precise and wear-resistant and hold your screw firmly in place without changing the thread insert. Ideal for repairing stripped or worn threads. wire thread inserts are commonly used in automotive, electrical, medical, lightweight construction, and aerospace applications.
BaerCoil® thread inserts are the perfect solution for damaged threads. They are drilled out and a new STI thread (screw thread insert) is cut for the wire thread insert. This thread is often also called STI thread (STI=Screw Thread Insert). Then the BaerCoil® thread insert is screwed into the old thread and thus the workpieces are screwed on again. With BaerCoil® thread inserts, the thread produced is significantly more stable than the original thread.
BaerCoil® thread inserts are sophisticated design elements that ensure optimum power transmission from the bolt to the nut thread. They compensate for pitch and angular errors and thus distribute static and dynamic work loads evenly over all thread turns. This is particularly important in lightweight constructions where the carrier material is to be reduced. BaerCoil® thread inserts make it possible to use smaller and shorter screw connections. Today, they are already an important component in the aerospace and automotive industries.
BaerCoil® thread inserts can be shortened, according to the required length, with a side cutter or similar.
Dimensions
| Diameter |
16 |
|---|---|
| Pitch |
2,0 |
| Dimension |
M 16 x 2,0 |
| Length |
1,5 D |
| T (Length when installed) |
24 mm |
| Thread length calculation |
1.5 D means 1.5 times the diameter: 1.5 times 16 mm=24 mm The nominal diameter for M 16 is 16 mm |
Characteristics
| Product group |
Wire thread inserts |
|---|---|
| Product type |
BaerCoil wire thread inserts |
| Thread standard |
M: Metric ISO standard thread according to DIN 13 |
| Tolerance |
ISO2/6H |
| Direction |
Right |
| Type |
free running |
| Tensile strength at room temperature |
> 900 N/mm² |
| Material |
from Bronze (CuSn6, CW452K, material no.: 2.1020) |
| Temperature resistance |
250°C long-term 300°C short-term |
Applications
- Applications in seawater
- Best electrical conductivity
Attributes
- Movement thread
- Cr-Ni screws
- Cu workpieces
- Non-magnetic
Technical drawing
| Diameter |
16 |
|---|---|
| Length |
1,5 D |
| T (Length when installed) |
24 mm |
| F (Min. - Max. outside diameter of thread insert) |
18,31 mm - 19,60 mm |
| P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
| B (thread depth with chamfer) |
31,00 mm |
| D (minimum depth of the core hole, without tip) |
33,00 mm |
Video instructions
Further information
Product data sheet
Safety instructions
