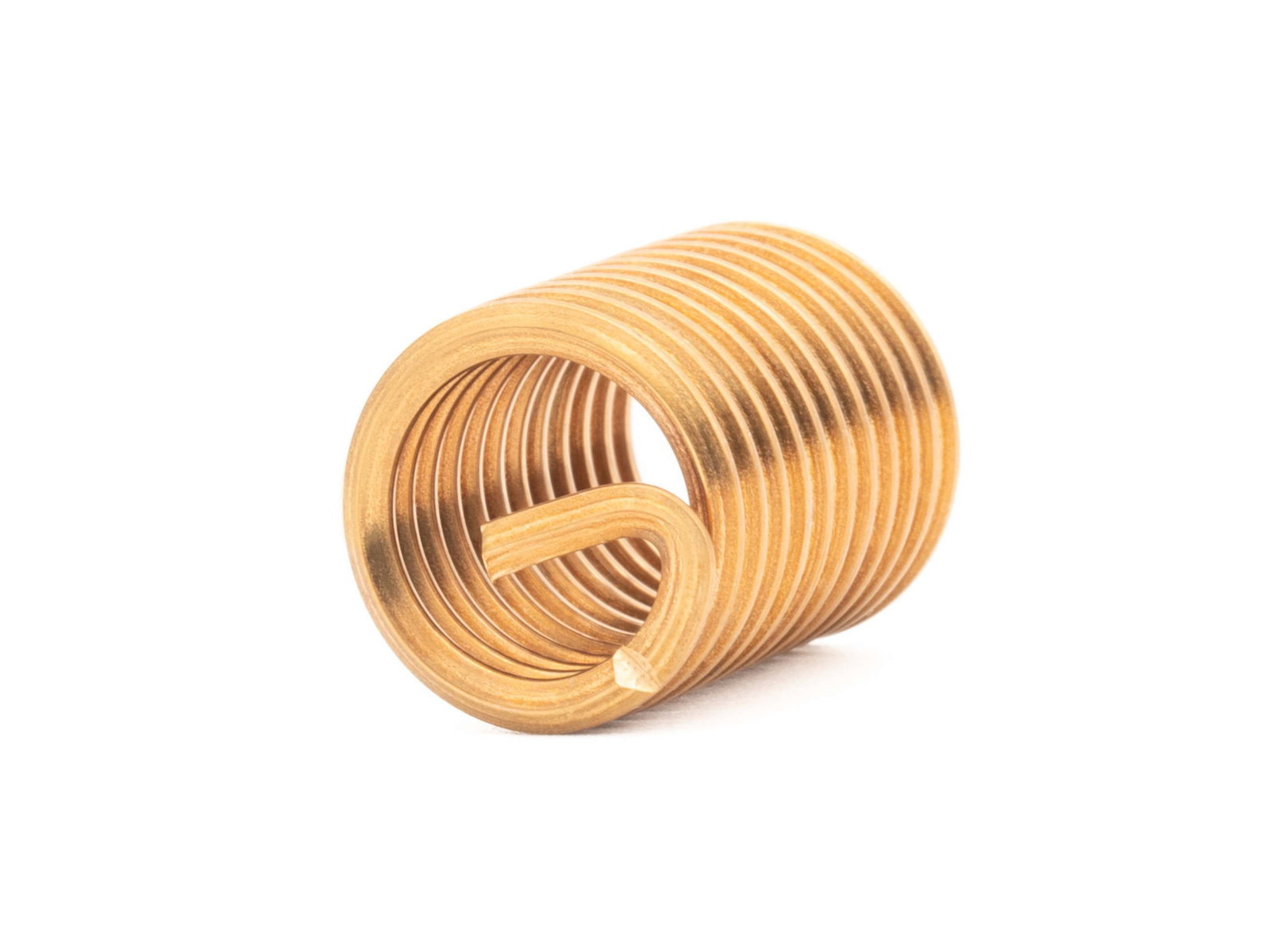

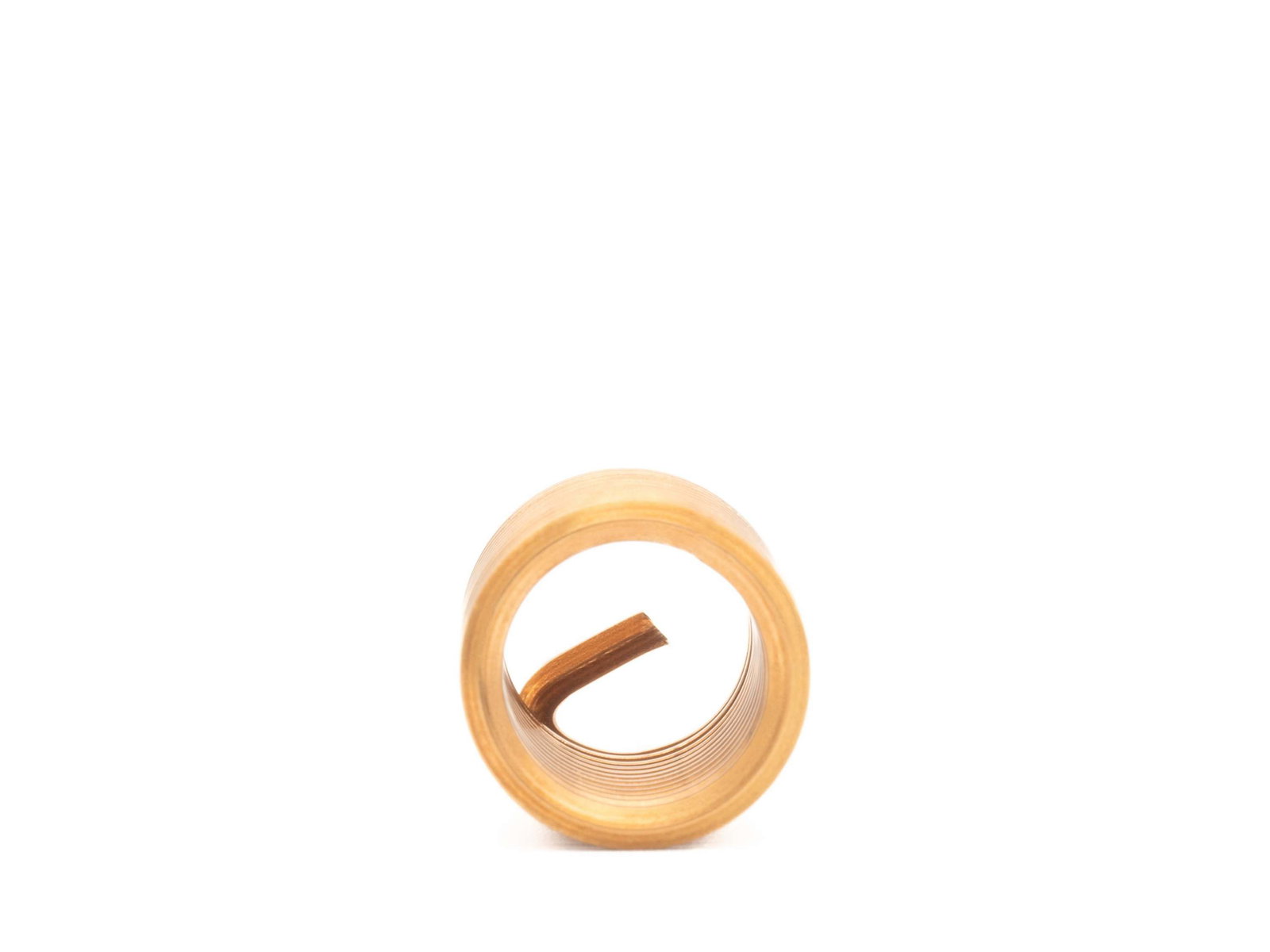

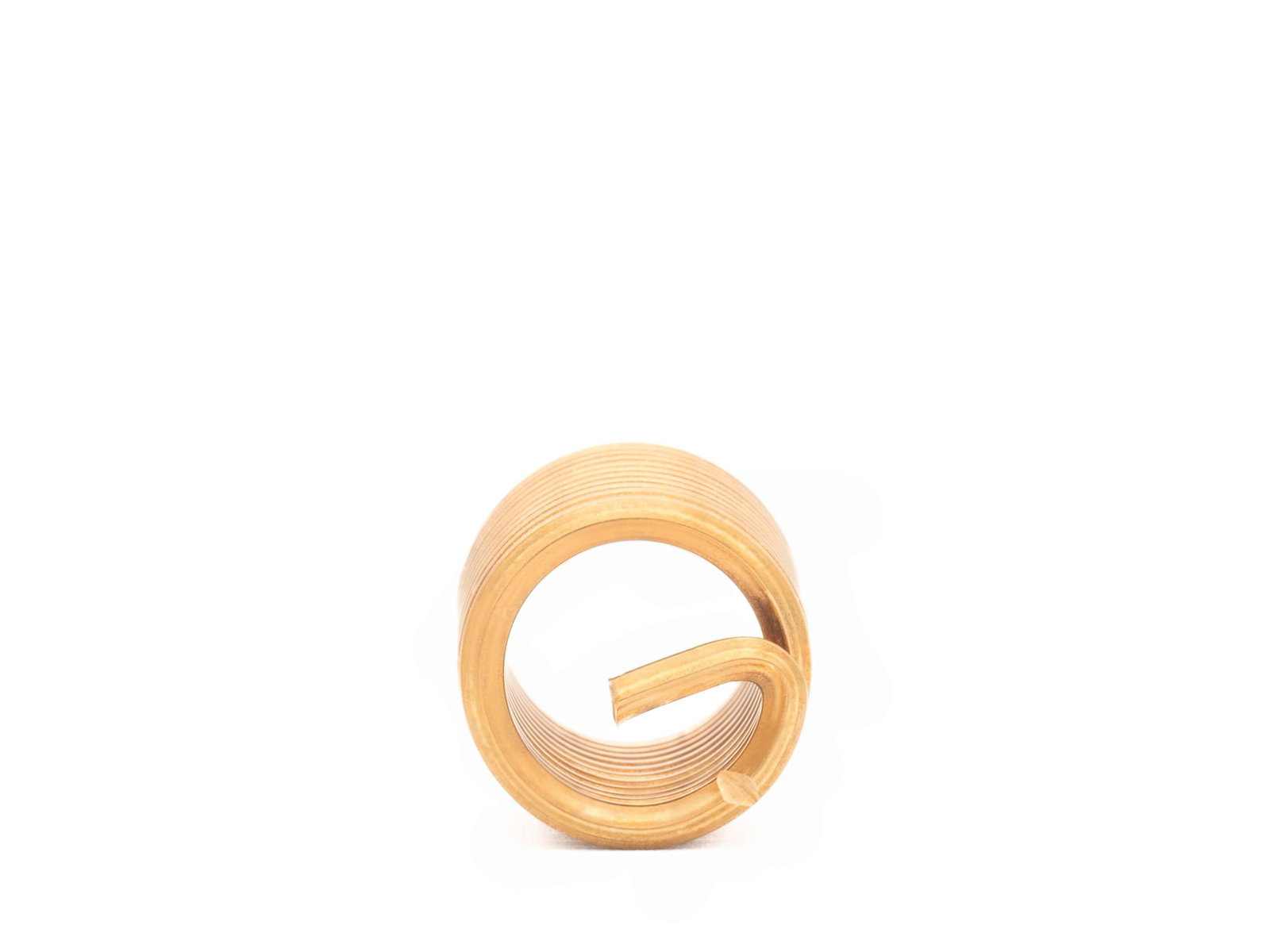

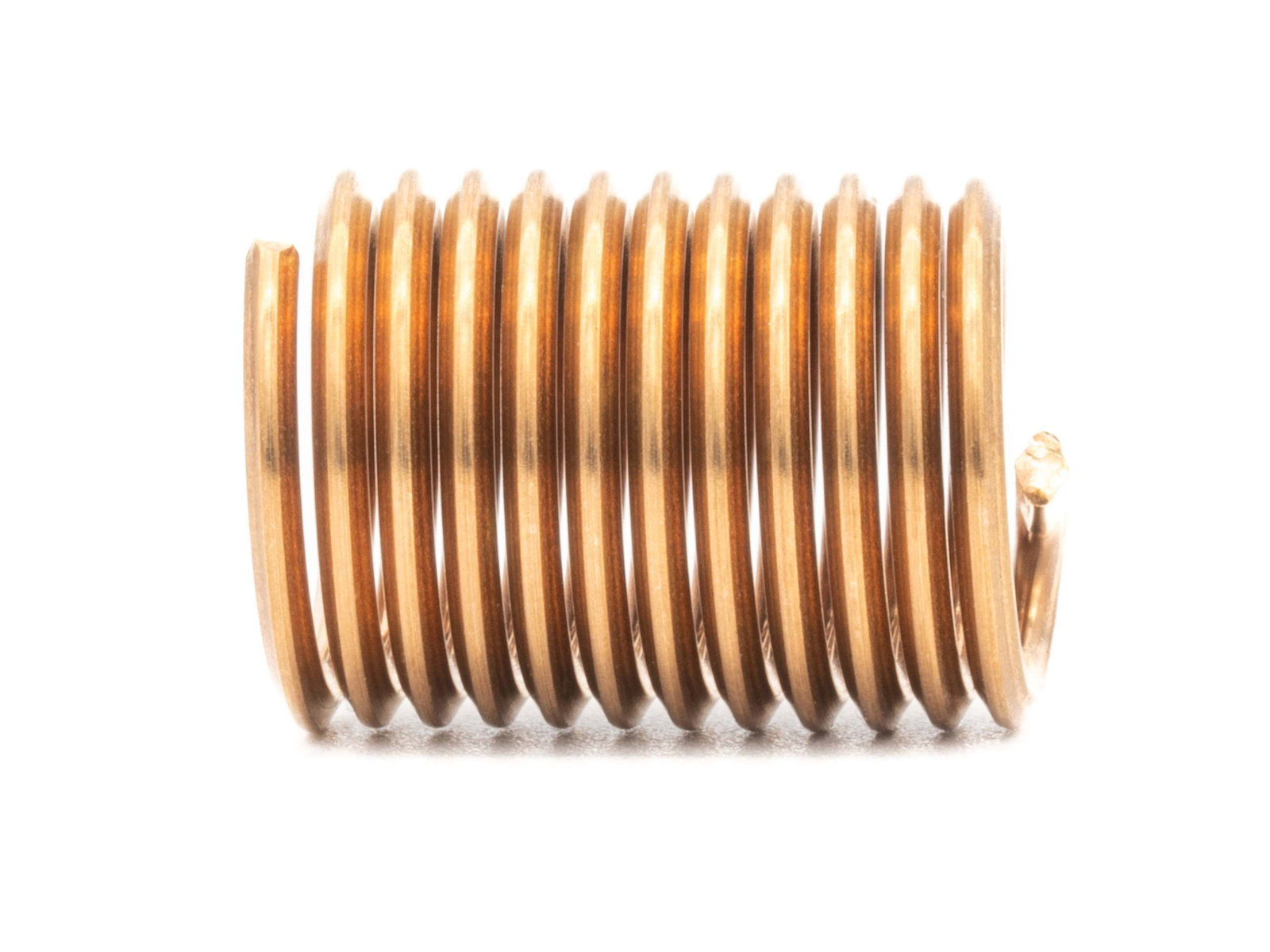

BaerCoil Wire Thread Inserts M 16 x 2.0 - 2.0 D (32 mm) - free running - Bronze - 100 pcs.
BaerCoil Wire Thread Inserts M 16 x 2.0 - 2.0 D (32 mm) - free running - Bronze - 100 pcs.
BaerCoil® thread inserts are the perfect solution for your thread repair needs! These inserts provide a durable and powerful thread connection and scrap recovery. With BaerCoil® thread inserts you also create load-bearing connections in materials with low shear strength. Precise and wear-resistant, the inserts hold your screw firmly in place without changing the thread insert. Ideal for repairing stripped or worn threads. wire thread inserts are often used in automotive, electrical, medical, lightweight construction, and aerospace applications.
The BaerCoil® thread insert is the perfect solution for damaged threads. STI thread (screw thread insert) is cut and the BaerCoil® insert is screwed in. The thread produced is significantly stronger than the original thread.
BaerCoil® thread inserts ensure optimum power transmission from the bolt to the nut thread, even in lightweight constructions. Today, they are already an important component in aviation and vehicle construction.
BaerCoil® thread inserts can be shortened according to the required length with a side cutter or similar.
Dimensions
| Diameter |
16 |
|---|---|
| Pitch |
2,0 |
| Dimension |
M 16 x 2,0 |
| Length |
2,0 D |
| T (Length when installed) |
32 mm |
| Thread length calculation |
2.0 D means 2 times the diameter: 2 times 16 mm=32 mm The nominal diameter for M 16 is 16 mm |
Characteristics
| Product group |
Wire thread inserts |
|---|---|
| Product type |
BaerCoil wire thread inserts |
| Thread standard |
M: Metric ISO standard thread according to DIN 13 |
| Tolerance |
ISO2/6H |
| Direction |
Right |
| Type |
free running |
| Tensile strength at room temperature |
> 900 N/mm² |
| Material |
from Bronze (CuSn6, CW452K, material no.: 2.1020) |
| Temperature resistance |
250°C long-term 300°C short-term |
Applications
- Applications in seawater
- Best electrical conductivity
Attributes
- Movement thread
- Cr-Ni screws
- Cu workpieces
- Non-magnetic
Technical drawing
| Diameter |
16 |
|---|---|
| Length |
2,0 D |
| T (Length when installed) |
32 mm |
| F (Min. - Max. outside diameter of thread insert) |
18,31 mm - 19,60 mm |
| P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
| B (thread depth with chamfer) |
39,00 mm |
| D (minimum depth of the core hole, without tip) |
41,00 mm |
