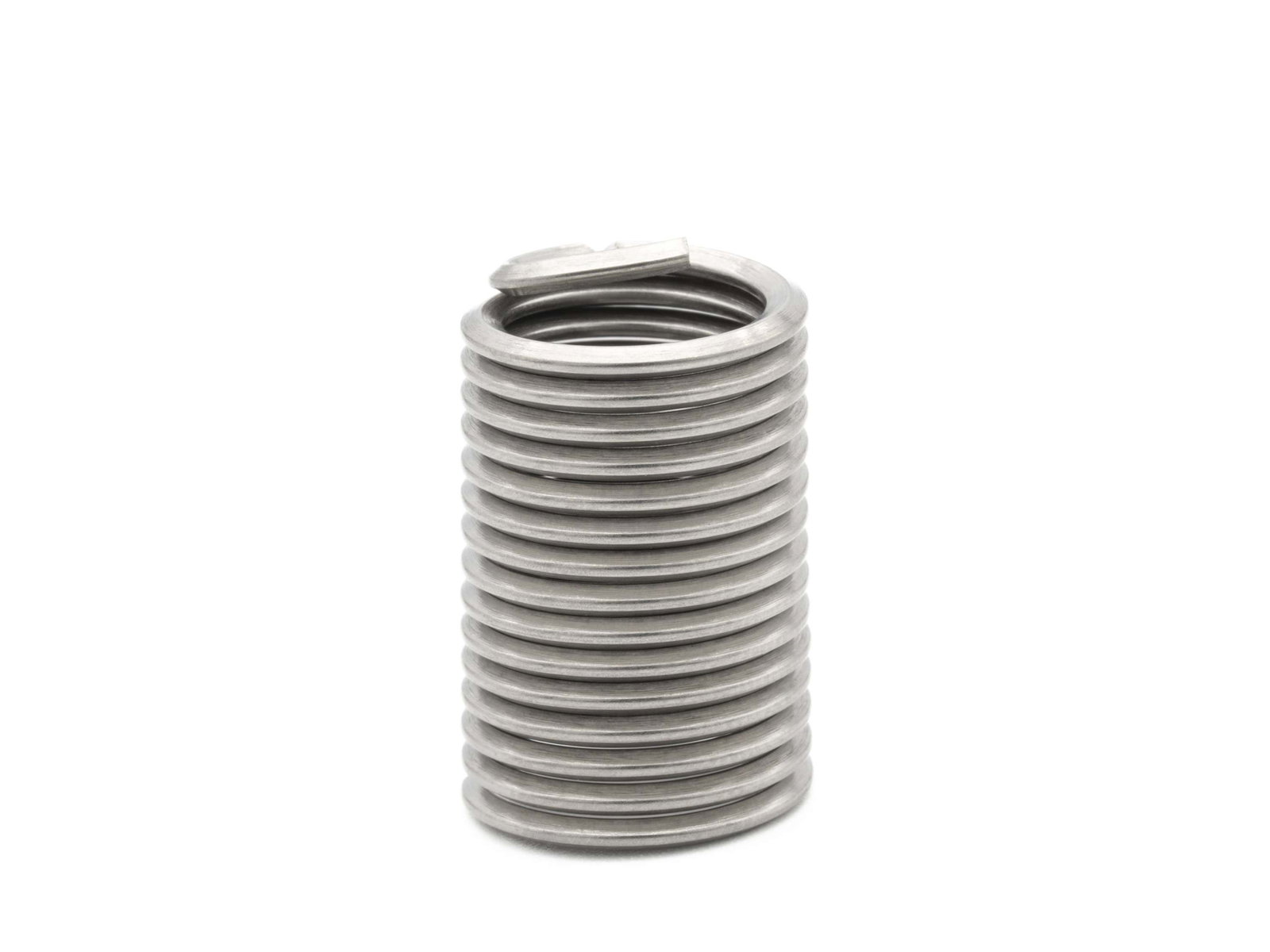

BaerCoil Wire Thread Inserts M 18 x 2.5 - 2.5 D (45 mm) - free running - 25 pcs.
BaerCoil Wire Thread Inserts M 18 x 2.5 - 2.5 D (45 mm) - free running - 25 pcs.
BaerCoil® wire thread inserts are the perfect solution for a long-lasting, powerful thread connection and scrap recovery. They also create load-bearing connections in materials with low shear strength and are precise and wear-resistant. wire thread inserts are often used in automotive, electrical engineering, medical technology, lightweight construction and aerospace.
The BaerCoil® thread insert is the perfect solution for damaged threads - with the same nominal diameter! For thread repair with wire thread inserts, the thread is drilled out and a new STI thread (screw thread insert) for the wire thread insert is cut. This thread is often also called STI thread (STI=Screw Thread Insert).
Our thread inserts ensure that both static and dynamic work loads are distributed in a balanced manner over the individual thread turns. The flexibility of the thread inserts also compensates for any pitch and angular errors, so that optimum force transmission from the bolt to the nut thread is achieved. Particularly in lightweight constructions, BaerCoil® thread inserts helps to reduce the carrier material and to use smaller or shorter screw connections. Today, they are already an important component in aviation and vehicle construction. They significantly save material and contribute to the conservation of resources.
BaerCoil® thread inserts can be shortened according to the required length with a side cutter or similar.
Dimensions
| Diameter |
18 |
|---|---|
| Pitch |
2,5 |
| Dimension |
M 18 x 2,5 |
| Length |
2,5 D |
| T (Length when installed) |
45 mm |
| Thread length calculation |
2.5 D means 2.5 times the diameter: 2.5 times 18 mm=45 mm The nominal diameter for M 18 is 18 mm |
Characteristics
| Product group |
Wire thread inserts |
|---|---|
| Product type |
BaerCoil wire thread inserts |
| Thread standard |
M: Metric ISO standard thread according to DIN 13 |
| Tolerance |
ISO2/6H |
| Direction |
Right |
| Type |
free running |
| Tensile strength at room temperature |
>1400 N/mm² |
| Material |
Stainless Steel V2A (AISI 304, X5CrNi18-10, Material No.: 1.4301) |
| Temperature resistance |
315°C long-term 425°C short-term |
Applications
All normal uses for thread repair and thread reinforcement
Technical drawing
| Diameter |
18 |
|---|---|
| Length |
2,5 D |
| T (Length when installed) |
45 mm |
| F (Min. - Max. outside diameter of thread insert) |
20,86 mm - 22,00 mm |
| P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
| B (thread depth with chamfer) |
53,75 mm |
| D (minimum depth of the core hole, without tip) |
56,25 mm |
