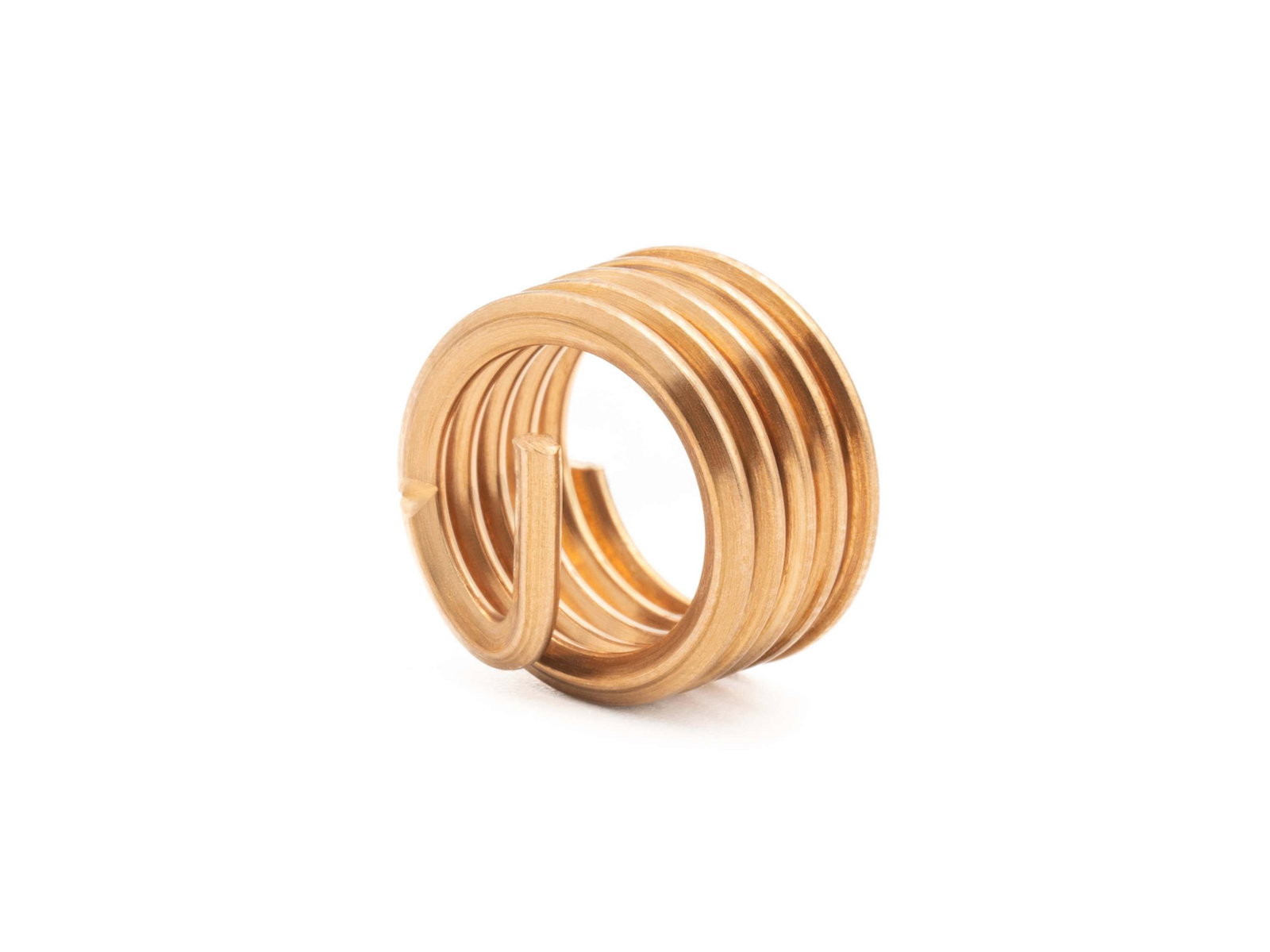

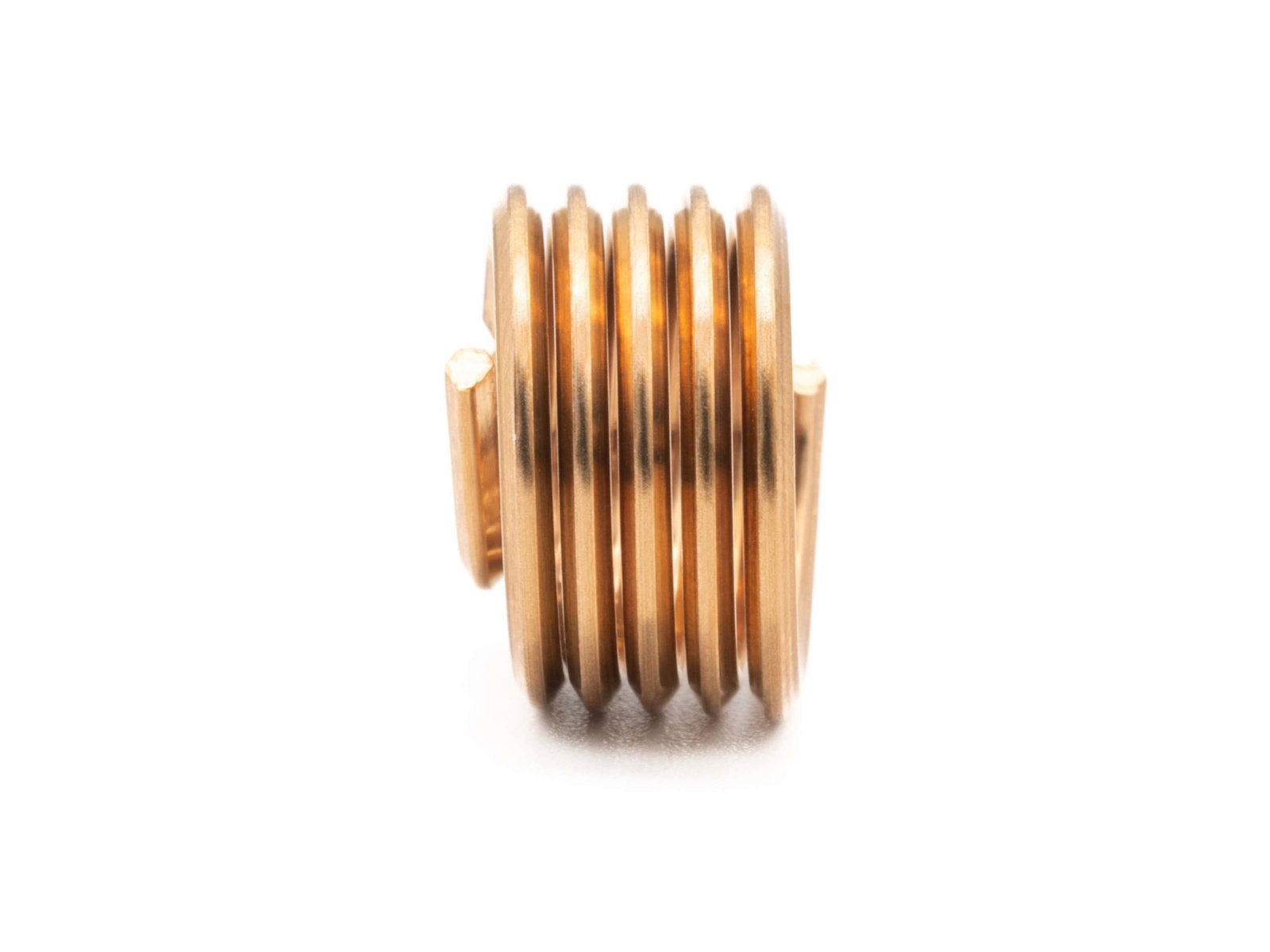

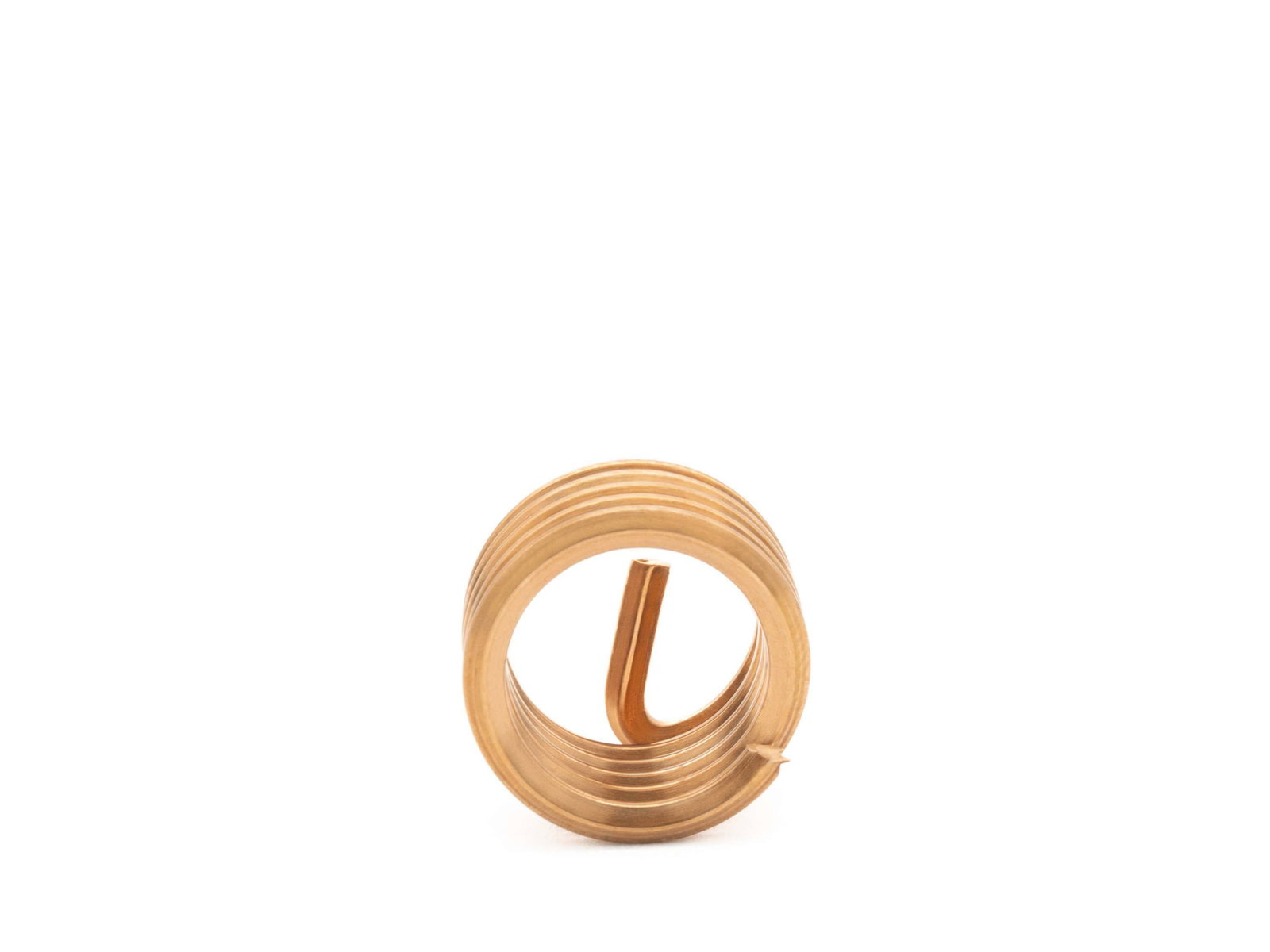

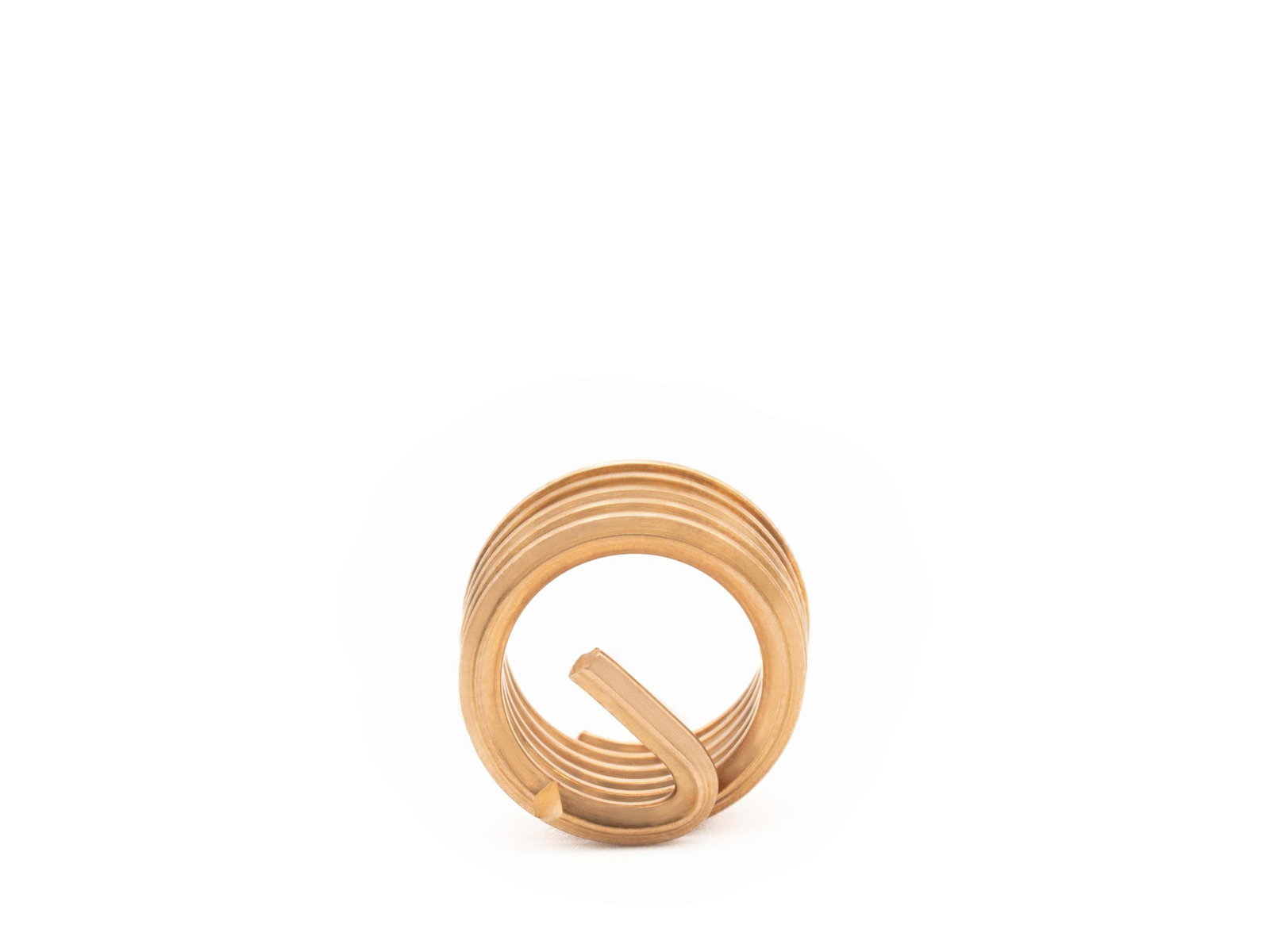

BaerCoil Wire Thread Inserts M 20 x 2.5 - 1.0 D (20 mm) - free running - Bronze - 100 pcs.
BaerCoil® thread inserts are the best solution for all your repair needs! With them you can create long-lasting and powerful connections. These inserts also ensure that you have no waste and recycle everything. The inserts are precise and wear resistant - your screw will stay firmly in place without the thread insert slipping.
The BaerCoil® thread insert is the perfect solution for damaged threads. STI thread (screw thread insert) is cut and the BaerCoil® insert is screwed in. The thread produced is significantly stronger than the original thread.
Our thread inserts ensure that both static and dynamic work loads are distributed in a balanced way to the individual thread turns. The flexibility of the thread inserts also compensates for any pitch and angular errors, so that optimum force transmission from the bolt to the nut thread is achieved. Particularly in lightweight constructions, BaerCoil® thread inserts helps to reduce the carrier material and to use smaller or shorter screw connections. Today, they are already an important component in aviation and vehicle construction. They significantly save material and contribute to the conservation of resources.
BaerCoil® thread inserts can be shortened according to the required length with a side cutter or similar.
Dimensions
| Diameter |
20 |
|---|---|
| Pitch |
2,5 |
| Dimension |
M 20 x 2,5 |
| Length |
1,0 D |
| T (Length when installed) |
20 mm |
| Thread length calculation |
1.0 D means 1 times the diameter: 1 times 20 mm=20 mm The nominal diameter for M 20 is 20 mm |
Characteristics
| Product group |
Wire thread inserts |
|---|---|
| Product type |
BaerCoil wire thread inserts |
| Thread standard |
M: Metric ISO standard thread according to DIN 13 |
| Tolerance |
ISO2/6H |
| Direction |
Right |
| Type |
free running |
| Tensile strength at room temperature |
> 900 N/mm² |
| Material |
from Bronze (CuSn6, CW452K, material no.: 2.1020) |
| Temperature resistance |
250°C long-term 300°C short-term |
Applications
- Applications in seawater
- Best electrical conductivity
Attributes
- Movement thread
- Cr-Ni screws
- Cu workpieces
- Non-magnetic
Technical drawing
| Diameter |
20 |
|---|---|
| Length |
1,0 D |
| T (Length when installed) |
20 mm |
| F (Min. - Max. outside diameter of thread insert) |
22,86 mm - 24,40 mm |
| P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
| B (thread depth with chamfer) |
28,75 mm |
| D (minimum depth of the core hole, without tip) |
31,25 mm |
