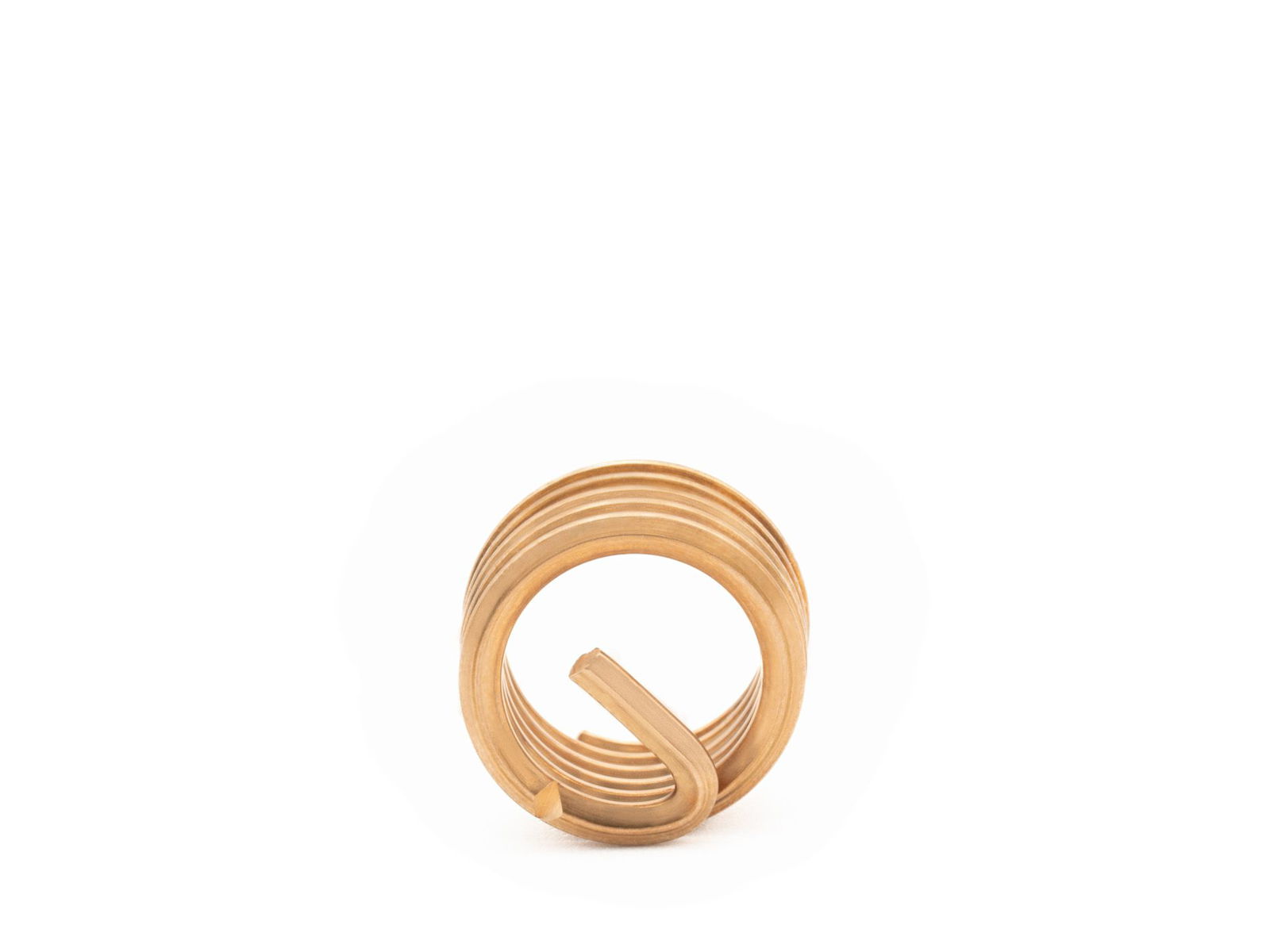

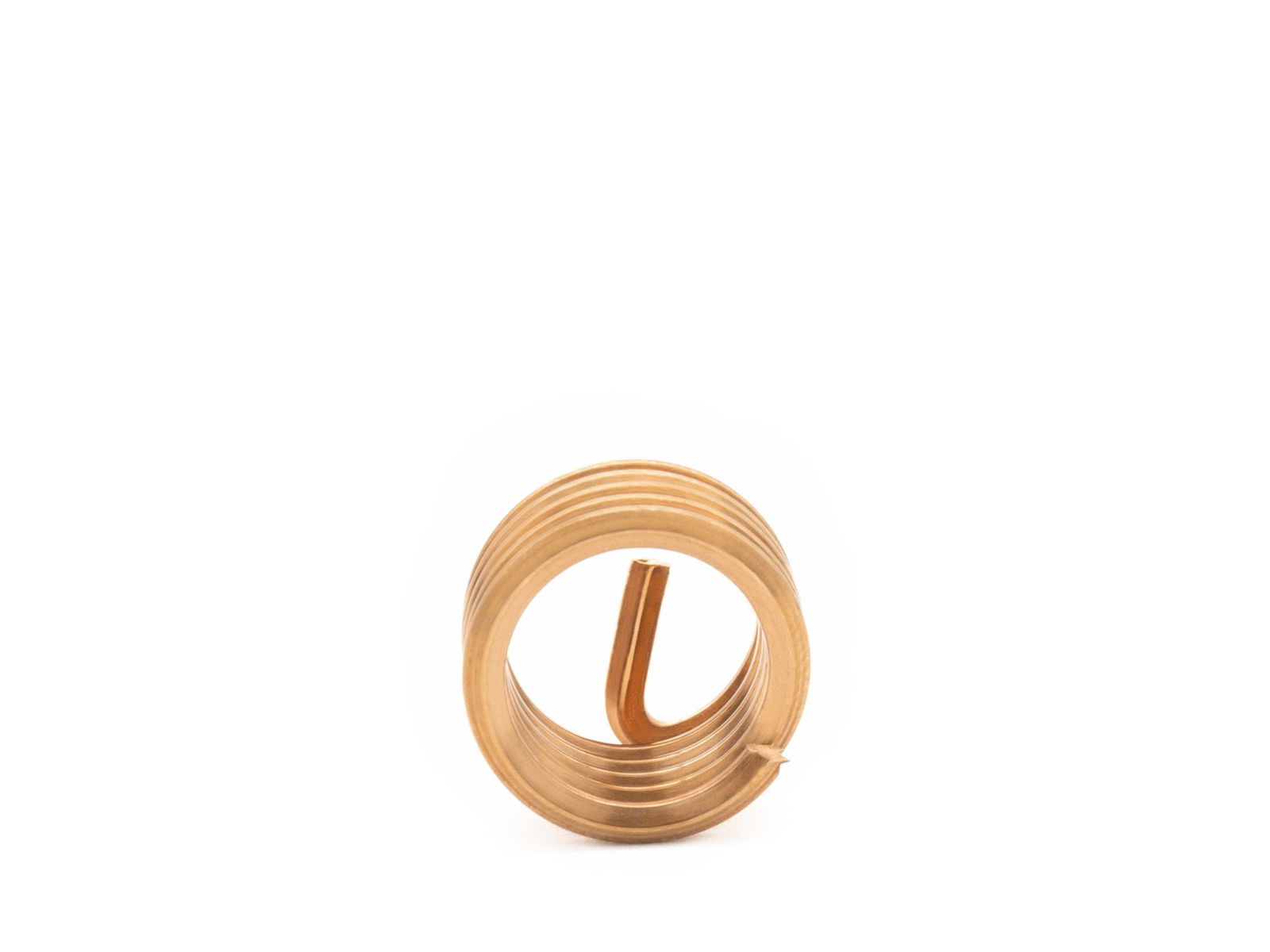

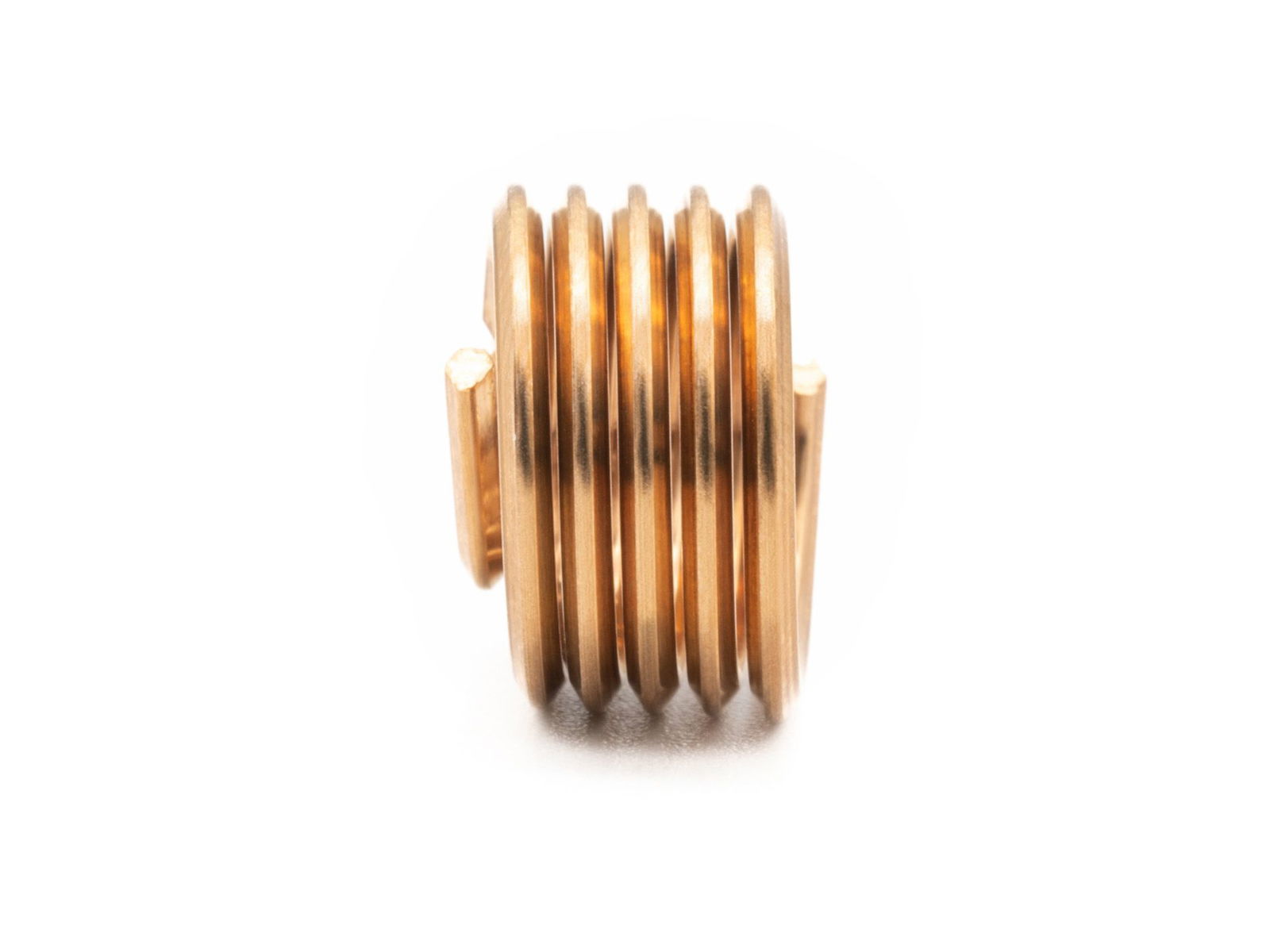

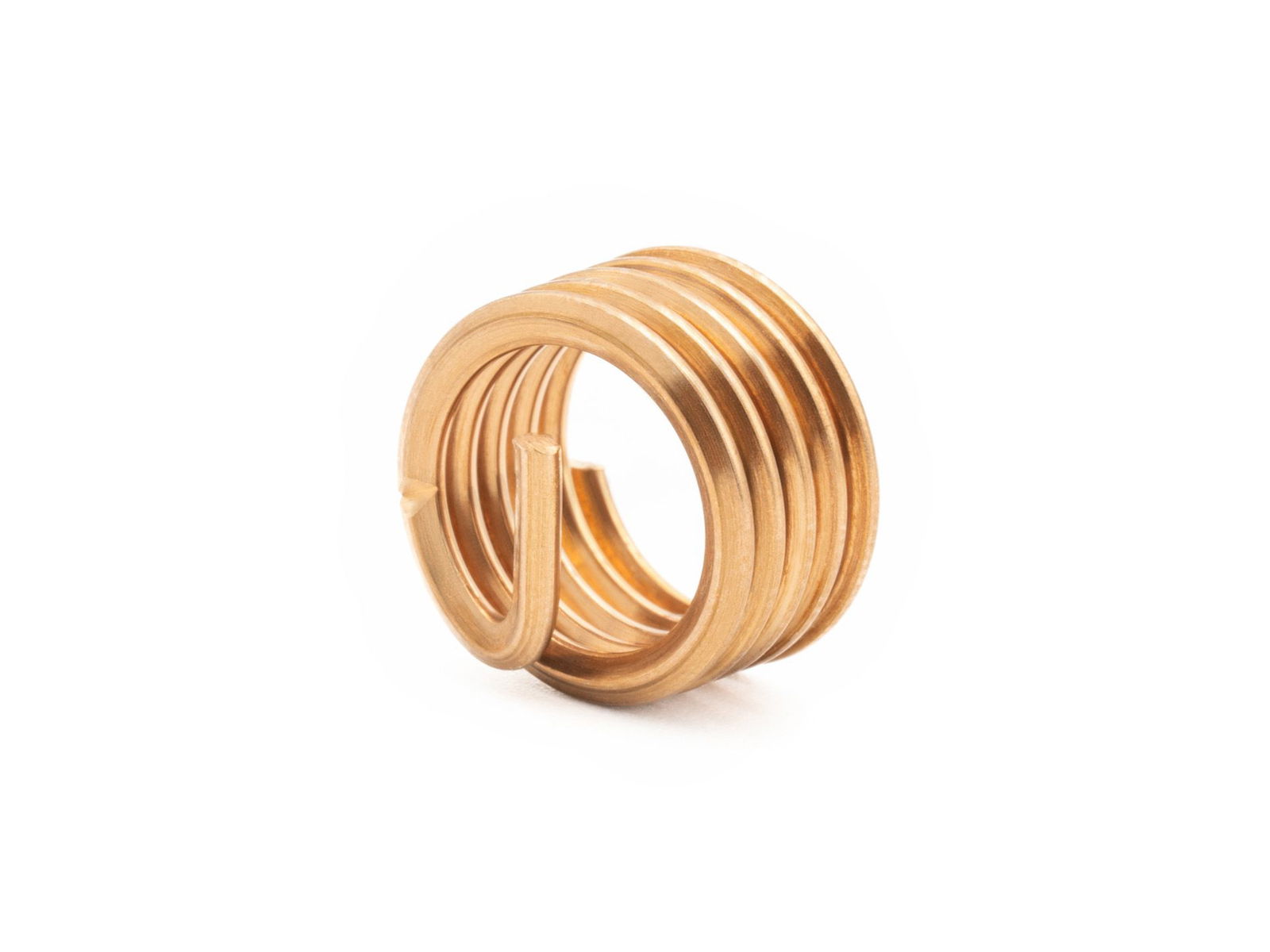

BaerCoil Wire Thread Inserts M 4 x 0.7 - 1.0 D (4 mm) - free running - Bronze - 100 pcs.
BaerCoil Wire Thread Inserts M 4 x 0.7 - 1.0 D (4 mm) - free running - Bronze - 100 pcs.
BaerCoil® thread inserts are the best solution for your thread repair! With them you can create long-lasting and powerful threaded connections. The inserts also ensure that you have no waste and recycle everything. The inserts are precise and wear resistant - your screw will stay firmly in place without the thread insert slipping.
The BaerCoil® thread insert is the perfect solution for damaged threads - with the same nominal diameter! For thread repair with wire thread inserts, the thread is drilled out and a new STI thread (screw thread insert) for the wire thread insert is cut. This thread is often also called STI thread (STI=Screw Thread Insert).
BaerCoil® thread inserts ensure optimum power transmission from the bolt to the nut thread - even in lightweight constructions. Due to their flexibility, they can compensate for pitch and angle errors and thus guarantee optimum power transmission. BaerCoil® thread inserts are already important components in the aerospace and automotive industries and help to reduce carrier material and use smaller, shorter bolted joints.
BaerCoil® thread inserts can be shortened, according to the required length, with a side cutter or similar.
Dimensions
| Diameter |
4 |
|---|---|
| Pitch |
0,7 |
| Dimension |
M 4 x 0,7 |
| Length |
1,0 D |
| T (Length when installed) |
4 mm |
| Thread length calculation |
1.0 D means 1 times the diameter: 1 times 4 mm=4 mm The nominal diameter for M 4 is 4 mm |
Characteristics
| Product group |
Wire thread inserts |
|---|---|
| Product type |
BaerCoil wire thread inserts |
| Thread standard |
M: Metric ISO standard thread according to DIN 13 |
| Tolerance |
ISO2/6H |
| Direction |
Right |
| Type |
free running |
| Tensile strength at room temperature |
> 900 N/mm² |
| Material |
from Bronze (CuSn6, CW452K, material no.: 2.1020) |
| Temperature resistance |
250°C long-term 300°C short-term |
Applications
- Applications in seawater
- Best electrical conductivity
Attributes
- Movement thread
- Cr-Ni screws
- Cu workpieces
- Non-magnetic
Technical drawing
| Diameter |
4 |
|---|---|
| Length |
1,0 D |
| T (Length when installed) |
4 mm |
| F (Min. - Max. outside diameter of thread insert) |
4,83 mm - 5,60 mm |
| P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
| B (thread depth with chamfer) |
6,45 mm |
| D (minimum depth of the core hole, without tip) |
7,15 mm |
