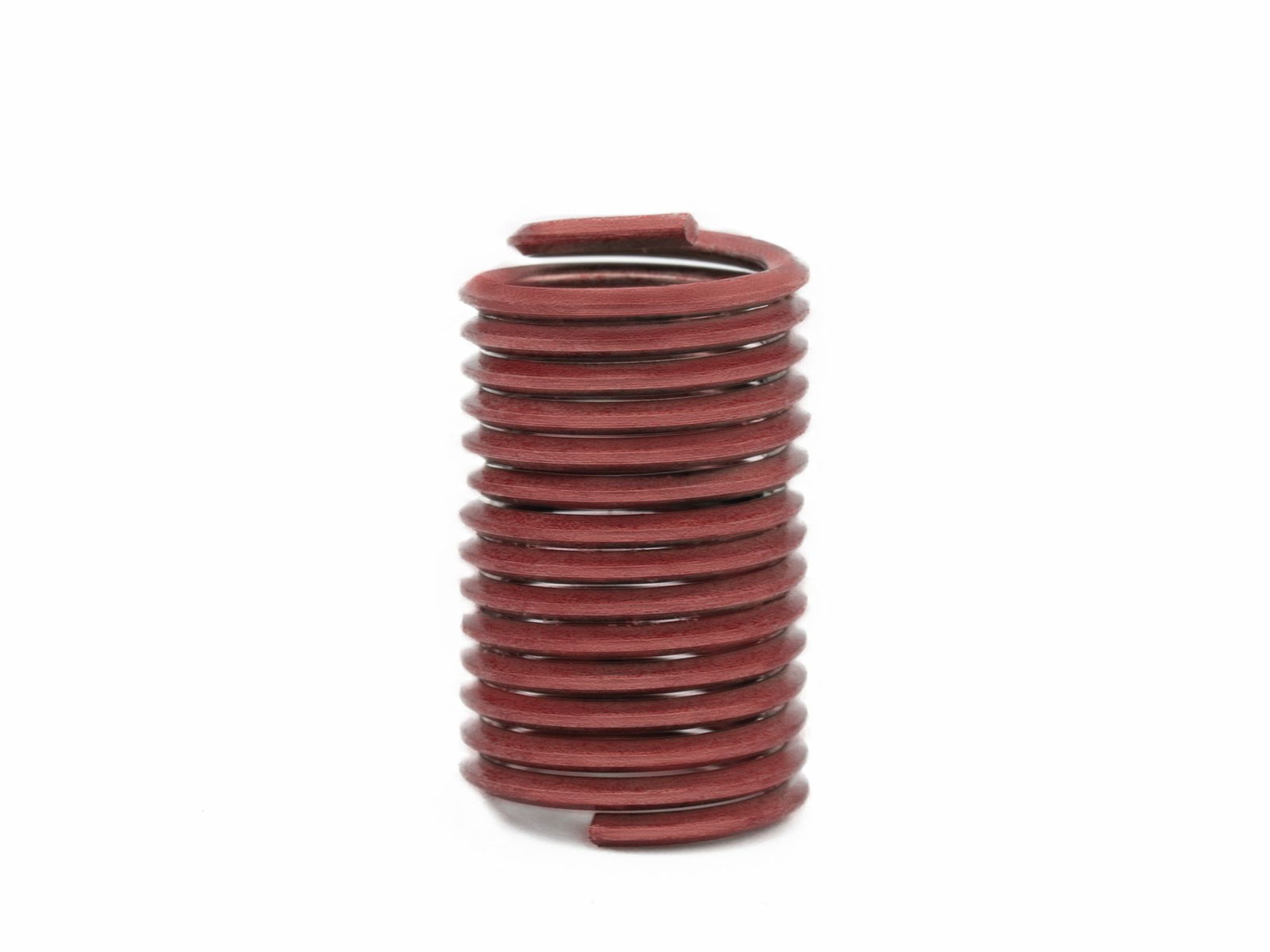

BaerCoil Wire Thread Inserts UNC 5/8 x 11 - 2.5 D (39.69 mm) - screw grip (screw locking) - 50 pcs.
BaerCoil Wire Thread Inserts UNC 5/8 x 11 - 2.5 D (39.69 mm) - screw grip (screw locking) - 50 pcs.
BaerCoil® thread inserts provide a long-lasting and powerful thread connection and scrap recovery. The inserts also create load-bearing connections in materials with low shear strength. thread inserts are precise and wear-resistant, holding your screw firmly in place without changing the thread insert. Ideal for repairing stripped or worn threads. wire thread inserts are commonly used in automotive, electrical, medical, lightweight construction, and aerospace applications.
If you have damaged threads, the BaerCoil® thread insert is the perfect solution - with the same nominal diameter! By reaming and inserting a new EC thread, your old thread becomes strong and stable again. With the BaerCoil® thread insert your manufactured thread becomes significantly more stable than the original thread!
Our thread inserts ensures that both static and dynamic work loads are distributed in a balanced way to the individual thread turns. Also, the flexibility of the thread inserts compensates for any pitch and angular errors, so that optimum force transmission from the bolt to the nut thread is achieved. Particularly in lightweight constructions, BaerCoil® thread inserts help to reduce the carrier material and to use smaller or shorter screw connections. Today, they are already an important component in aviation and vehicle construction. They significantly save material and contribute to the conservation of resources.
BaerCoil® screw-locking thread inserts | Type "screw grip " - All advantages at a glance
With the self-clamping "screw grip" thread inserts, your construction remains stable - regardless of shocks, constant vibrations or movements. The screw-locking BaerCoil® thread inserts complement the properties of the "free running" connection and have a clamping effect on the flanks of the screwed-in screw due to their polygonally shaped windings. Please use only screws of a higher strength class for this purpose, as an elastically resilient frictional connection is created. The clamping torques are comparable with the specifications in DIN 267 Part 15 and ISO 2320. Please note that special insertion tools with reduced diameters are required for screw grip inserts.
BaerCoil® thread inserts can be shortened if necessary, according to the required length, with a side cutter or similar. It should be noted that the thread inserts with screw locking have a polygonal winding approximately in the middle of the insert. This must not be removed when shortening in order to maintain the screw locking effect.
Dimensions
Diameter |
5/8 |
---|---|
Pitch |
11 |
Dimension |
UNC 5/8 x 11 |
Length |
2,5 D |
T (Length when installed) |
39,69 mm |
Thread length calculation |
2.5 D means 2.5 times the diameter: 2.5 times 15.88 mm=39.69 mm The nominal diameter at UNC 5/8 is approx. 15.88 mm |
Characteristics
Product group |
Wire thread inserts |
---|---|
Product type |
BaerCoil wire thread inserts |
Thread standard |
UNC: American Unified National Coarse thread according to ANSI B1.1 |
Direction |
Right |
Type |
screw grip (screw locking) |
Tensile strength at room temperature |
>1400 N/mm² |
Material |
Stainless Steel V2A (AISI 304, X5CrNi18-10, Material No.: 1.4301) |
Temperature resistance |
315°C long-term 425°C short-term |
Applications
All normal uses for thread repair and thread reinforcement
Technical drawing
Diameter |
5/8 |
---|---|
Length |
2,5 D |
T (Length when installed) |
39,69 mm |
F (Min. - Max. outside diameter of thread insert) |
0,730 '' - 0,767 '' |
P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
B (thread depth with chamfer) |
1,881 '' |
D (minimum depth of the core hole, without tip) |
1,972 '' |
