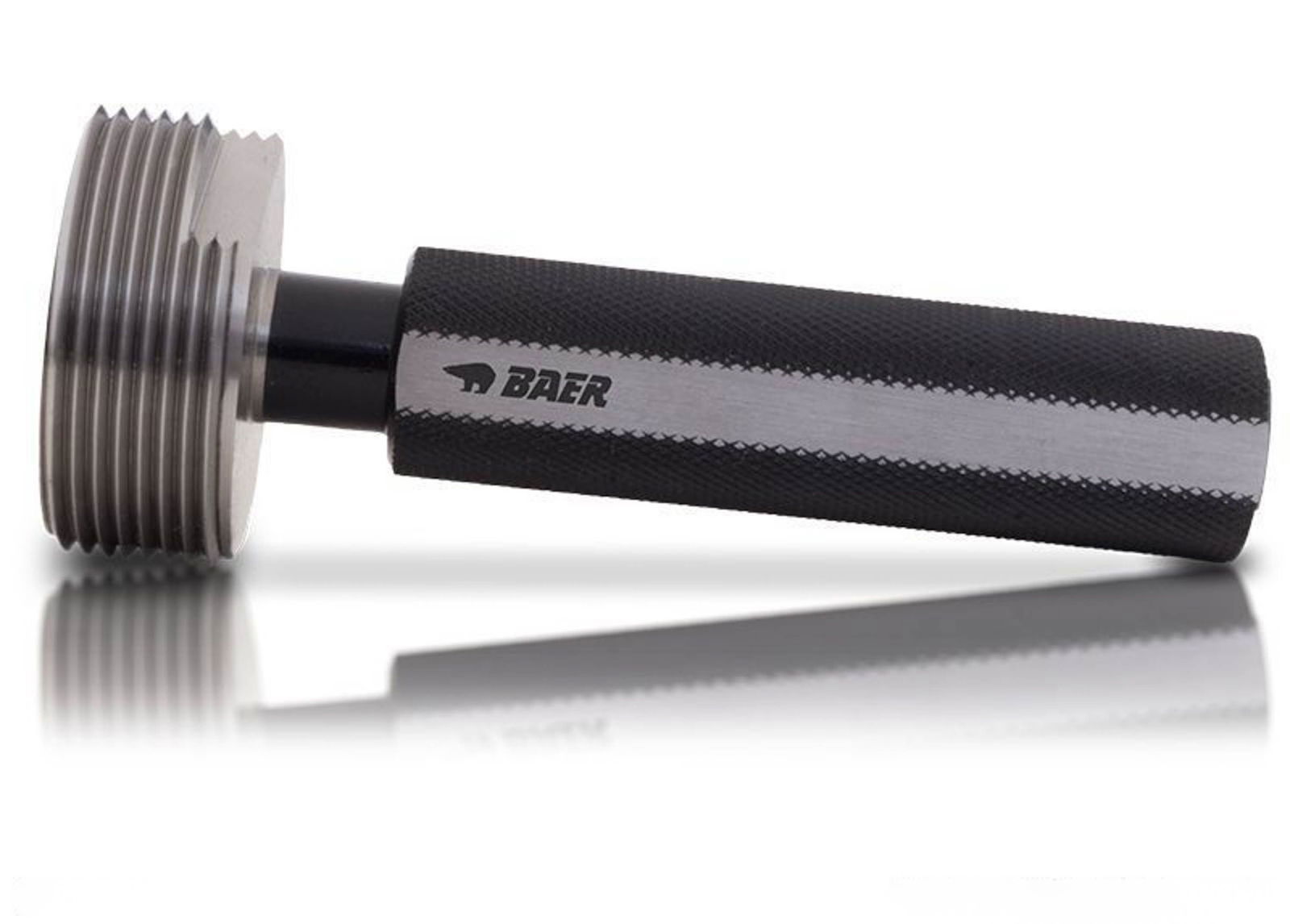

Thread plug gauge NPT 2.1/2 x 8 - tolerance Medium
In stock
Thread plug gauge NPT 2.1/2 x 8 - tolerance Medium
In contrast to cylindrical thread limit plug gauges, tapered thread limit plug gauges have a measuring stage and thus test the thread minimum dimension and the thread maximum dimension. When thread testing with a tapered thread limit plug gauge, it must be possible to screw in the thread gauge between the first and second stage. To obtain an accurate test result, ensure that the thread to be tested is clean and free of lubricant residue. The ambient temperature and the temperature of the component should both be 20 degrees. Otherwise, the test result may be falsified.
Calibration
In the section accessories you can purchase a calibration for your gauge.
Please order the article with article number "KAL01" and the number of gauges you would like to have calibrated.
In the further order process you have the possibility to indicate in the "comment field" which of the ordered gauges you would like to have calibrated.
Dimensions
| Diameter |
2.1/2" |
|---|---|
| Pitch |
8 |
| Dimension |
NPT 2.1/2" x 8 |
Characteristics
| Product group |
Thread gauges |
|---|---|
| Product type |
Thread plug gauges |
| Thread standard |
NPT: National Pipe Thread or American pipe thread according to ANSI B 1.20.1 |
| Tolerance |
medium |
| Direction |
Right |
| Material |
Special gauge steel |
